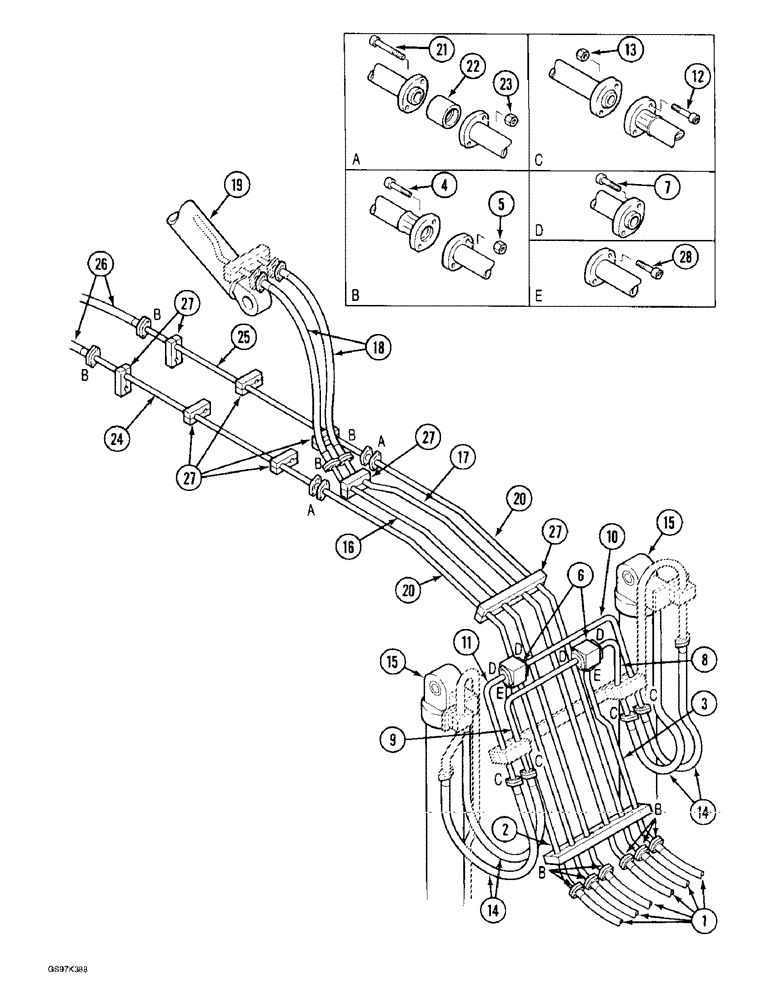

Запчасти Case 170C (8-076) - BOOM, ARM AND TOOL CYLINDER CIRCUITS, TUBES AT BOOM (08) - HYDRAULICS

1

P1031988

HOSE

- attachment circuit, see Figure 8-58

6шт.

2

P7747619

PIPE

TUBE - to manifold block, rod end of boom cylinder

1шт.

3

P5849130

PIPE

TUBE - to manifold block, base end of boom cylinder

1шт.

4

P632934

SCREW

BOLT - tube to hose flange

20шт.

5

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

20шт.

6

P537243

TEE

BLOCK - manifold

2шт.

7

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Manifold to cylinder tubes Hex Soc Hd, M10 x 35, 10.9

8шт.

8

P7747618

PIPE

TUBE - manifold to right-hand boom cylinder, base end

1шт.

9

P6547156

PIPE

TUBE - manifold to left-hand boom cylinder, base end

1шт.

10

P6547157

PIPE

TUBE - manifold to right-hand boom cylinder, rod end

1шт.

11

P6547155

PIPE

TUBE - manifold to left-hand boom cylinder, rod end

1шт.

12

L632924

SCREW

BOLT - hose to tube flange

8шт.

13

825-1410

NUT,M10, Cl 8

- hex, 10 mm - 1.5, class 10, plated

8шт.

14

P1031905

HOSE

- manifold tubes to boom cylinders, 1000 mm (39-3/8 inch) long (Replaces hose P1031990)

4шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY AND TUBES - boom, see Figure 8-78

2шт.

16

P5949113

PIPE

TUBE - to arm cylinder, rod end

1шт.

17

P5949114

PIPE

TUBE - to arm cylinder, base end

1шт.

18

P5431911

HOSE

- to arm cylinder, 1000 mm (39-3/8 inch) long

2шт.

19

REF

INSTRUCTION

CYLINDER ASSEMBLY AND TUBES - arm, see Figure 8-82

1шт.

20

P5849038

PIPE

TUBE - to tool cylinder, lower boom

2шт.

21

P532930

SCREW

BOLT - tube flange

4шт.

22

P1737759

JUNCTION

ADAPTER - tube flange

2шт.

23

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

4шт.

24

P5849131

PIPE

TUBE - to tool cylinder, upper boom, left-hand

1шт.

25

P5849132

PIPE

TUBE - to tool cylinder, upper boom, right-hand

1шт.

26

P1031989

HOSE

- to tool cylinder, 1800 mm (70-7/8 inch) long

2шт.

27

REF

INSTRUCTION

CLAMP - tubes to boom, see Figures 9-43 and 9-45

1шт.

28

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Manifold to lower boom tubes Hex Skt Hd, M12 x 40, 10.9

4шт.
