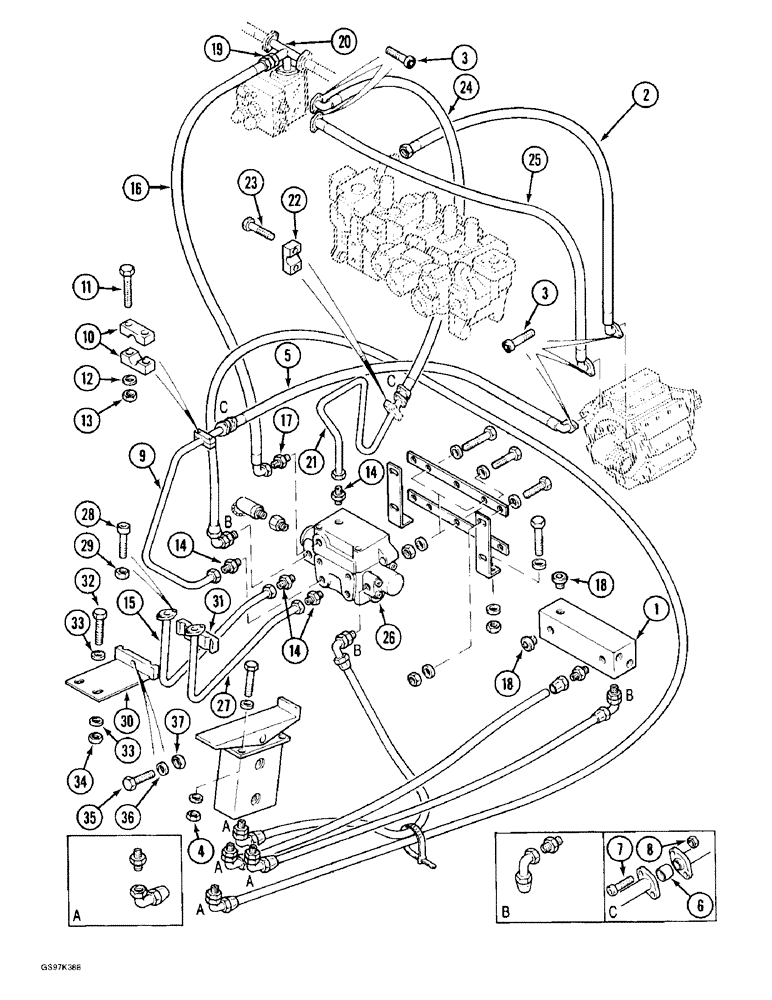

Запчасти Case 170C (8-072) - HYDRAULIC CIRCUIT FOR OPTIONS (08) - HYDRAULICS

1

REF

INSTRUCTION

MANIFOLD - control circuit, see Figure 8-46 for continuation of circuit

1шт.

2

P5931925

HOSE,15.50 mm ID x 630.00 mm

- pump to attachment control valve 15.50 mm ID x 630.00 mm

1шт.

3

P0732978Q

SCREW

10шт.

4

P1334571

NUT

- hex, 8 mm

4шт.

5

P5931926

HOSE

- pump to options control valve, 630 mm (24-13/16 inch) long

1шт.

6

P1737761

JUNCTION

ADAPTER - tube to hose flange

2шт.

7

P1232960

SCREW

BOLT - hex socket, 8 mm x 75 mm, class 10.9

4шт.

8

P34185H

NUT,M8, Cl 10

- hex, 8 mm

4шт.

9

P6049015

PIPE

TUBE - pump to options control valve

1шт.

10

P723438

SHIN

CLAMP - tube

2шт.

11

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm (Replaces bolt P933835)

2шт.

12

P3528795

WASHER

SPACER - clamp, 7 mm thick

2шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

2шт.

14

P3037504

UNION

ADAPTER ASSEMBLY - straight, at options valve, Includes: O-ring P945293

4шт.

P945293

WASHER, SEALING

O-RING - adapter

1шт.

15

P6149006

PIPE

TUBE - control valve to hoses at boom, see Figure 8-88 for boom hydraulics

1шт.

16

P3731945

HOSE

- return, to tee at power sensing valve, 1250 mm (49-1/4 inch) long

1шт.

17

P3037501

UNION

ADAPTER ASSEMBLY - straight, hose to options valve, Includes: O-ring P5746063

1шт.

P5746063

SEAL

O-RING - adapter

1шт.

18

P1437456

PLUG

ASSEMBLY - manifold port, Includes: O-ring P945295

2шт.

P945295

SEAL

O-RING - plug

1шт.

19

P37554

UNION

ADAPTER - straight, Serial Range: hose-tee

1шт.

20

P3050110

MANIFOLD

TUBE - return, at power sensing valve

1шт.

21

P6149115

PIPE

TUBE - options valve to power sensing valve

1шт.

22

P723438

SHIN

CLAMP - tube

1шт.

23

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm

2шт.

24

P5931926

HOSE

- options valve to power sensing valve, 630 mm (24-13/16 inch) long

1шт.

25

P4931979

HOSE

- pump to power sensing valve, 500 mm (19-11/16 inch) long

1шт.

26

REF

INSTRUCTION

VALVE ASSEMBLY - options control, parts list page 8-121

1шт.

27

P6149005

PIPE

TUBE - control valve to hoses at boom, see Figure 8-88 for boom hydraulics

1шт.

28

P1232958

SCREW

BOLT - hex socket, 8 mm x 75 mm, class 10.9

4шт.

29

P34185H

NUT,M8, Cl 10

- hex, 8 mm

4шт.

30

P4327112

SUPPORT

CLAMP AND BRACKET - options tube, see Figure 8-62 for mounting bracket for attachment tubes

1шт.

31

P1023468

SHIN

CLAMP - options tube

1шт.

32

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm (Replaces bolt P1133839)

2шт.

33

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

34

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

2шт.

35

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

- hex, 12 - 1.75 x 70 mm (Replaces bolt P33843)

1шт.

36

P3528793

WASHER

SPACER - bolt, 8 mm thick

1шт.

37

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, (Replaces nut P34596) Continued on next figure M12 x 1.75, Cl 8

1шт.
