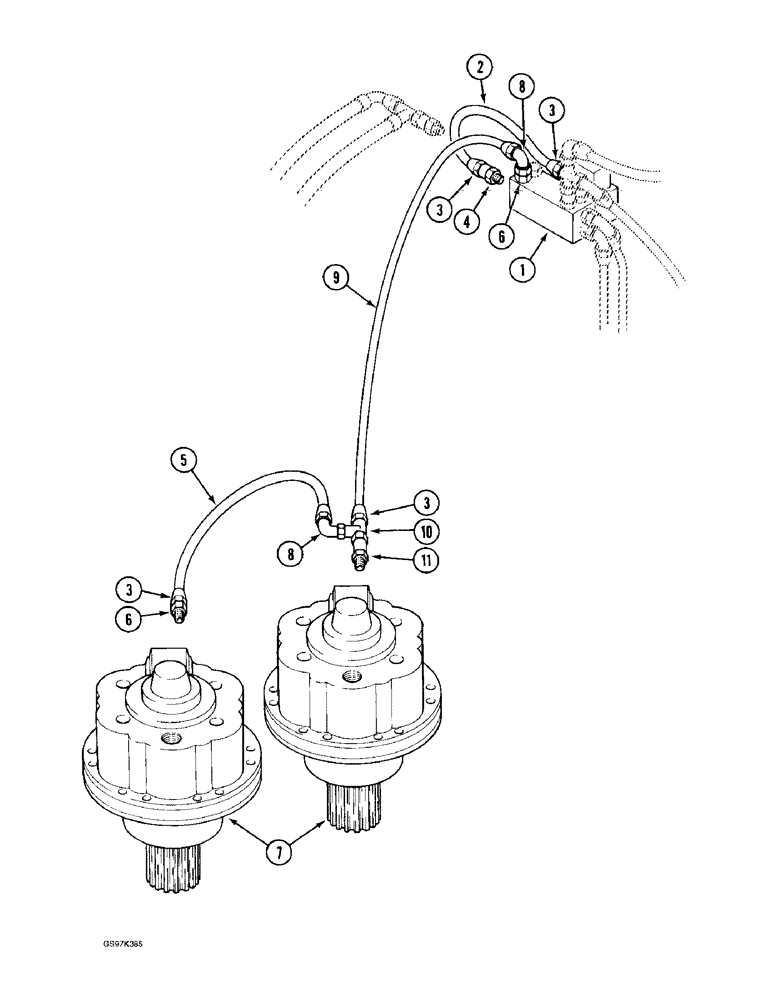

Запчасти Case 170C (8-070) - HYDRAULIC CONTROL CIRCUIT FOR SWING BRAKE (08) - HYDRAULICS

1

P1843371

SHIN

VALVE ASSEMBLY - control, solenoid, parts list Figure 8-132

1шт.

2

REF

INSTRUCTION

HOSE - control circuit, 500 mm (19-11/16 inch) long, cut from bulk hose P1103640 below

1шт.

3

P4037588

END FITTING

ADAPTER - straight, control circuit hose

4шт.

4

P4037574

UNION

TUBE ASSEMBLY - adapter, at solenoid valve, Includes: O-ring P945293

1шт.

P945293

WASHER, SEALING

O-RING - adapter

1шт.

5

REF

INSTRUCTION

HOSE - control circuit, 700 mm (27-9/16 inch) long, cut from bulk hose P1103640 below

1шт.

6

P4037573

UNION

ADAPTER ASSEMBLY - straight, at solenoid valve and swing motor, Includes: O-ring P945295

2шт.

P945295

SEAL

O-RING - adapter

1шт.

7

REF

INSTRUCTION

MOTOR ASSEMBLY - swing, parts list Figure 8-156 or 8-158

2шт.

8

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

9

REF

INSTRUCTION

HOSE - control circuit, 2500 mm (98-3/8 inch) long, cut from bulk hose P1103640 below

1шт.

10

P937275

TEE

- control circuit hose, at swing motor

1шт.

11

P4037577

FITTING

TUBE ASSEMBLY - adapter, at swing motor, Includes: O-ring P945295

1шт.

P945295

SEAL

O-RING - adapter

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
