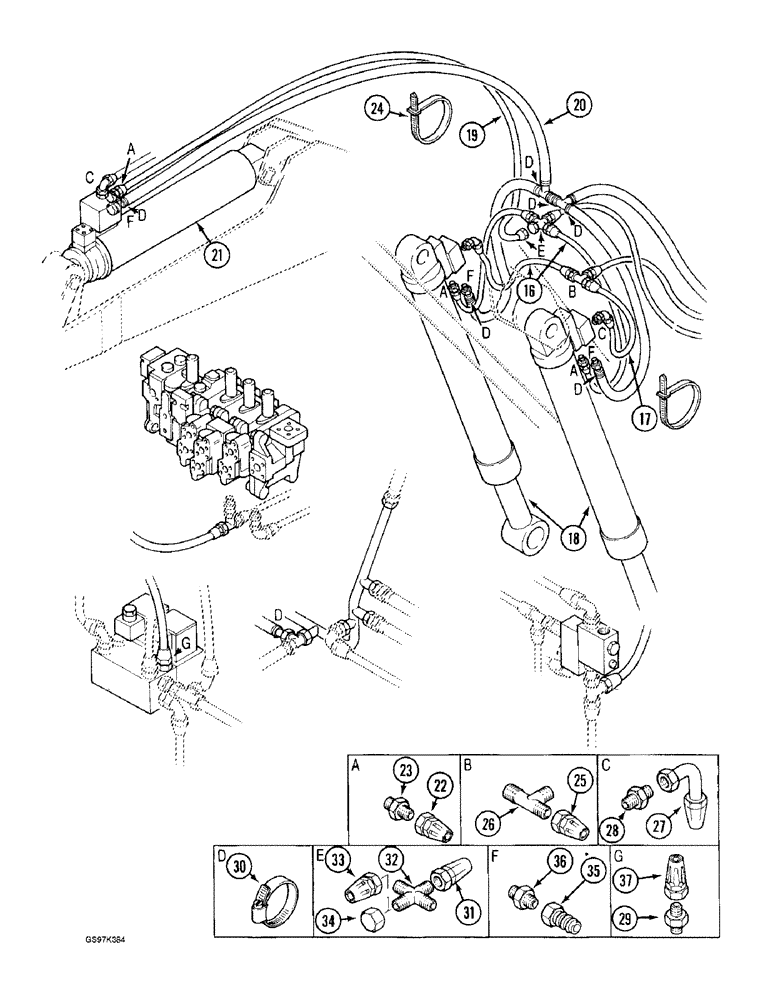

Запчасти Case 170C (8-068) - CRANING VALVE HYDRAULIC CIRCUIT, ARM AND BOOM CYLINDERS (08) - HYDRAULICS

16

REF

INSTRUCTION

HOSE - tees to craning valves, 2000 mm (78-3/4 inch) long, cut from bulk hose P1103640 below

2шт.

17

REF

INSTRUCTION

HOSE - tee to craning valve at left-hand boom cylinder, 2000 mm (78-3/4 inch) long, cut from bulk hose P1103640 below

1шт.

18

REF

INSTRUCTION

CYLINDER AND VALVE ASSEMBLY - boom, see Figure 8-80 for craning valve circuit used with boom cylinders

1шт.

19

REF

INSTRUCTION

HOSE - tee to craning valve at arm cylinder, 5000 mm (196-7/8 inch) long, cut from bulk hose P1103640 below

1шт.

20

REF

INSTRUCTION

HOSE - tee to craning valve at arm cylinder, 6600 mm (259-7/8 inch) long, cut from bulk hose P1103640 below

1шт.

21

REF

INSTRUCTION

CYLINDER AND VALVE ASSEMBLY - arm, see Figure 8-84 for craning valve circuit used with arm cylinder

1шт.

22

P4037588

END FITTING

ADAPTER - straight, hose

3шт.

23

P4037571

UNION

ADAPTER ASSEMBLY - straight, Includes: O-ring P7046042

3шт.

P7046042

SEAL

O-RING - adapter

1шт.

24

P51946

CLAMP

STRAP - tie, hoses

1шт.

25

P4037588

END FITTING

ADAPTER - straight, hose

3шт.

26

P937275

TEE

- male

1шт.

27

P4037590

END FITTING

ELBOW - 90 degree

3шт.

28

P4037571

UNION

ADAPTER ASSEMBLY - straight, Includes: O-ring P7046042

3шт.

P7046042

SEAL

O-RING - adapter

1шт.

29

P4037573

UNION

ADAPTER ASSEMBLY - straight, Includes: O-ring P945295

1шт.

P945295

SEAL

O-RING - adapter

1шт.

30

P36998

COLLAR CLAMP

CLAMP - hose

10шт.

31

P4037588

END FITTING

ADAPTER - straight, hose

3шт.

32

P1237220

CROSS

- hydraulic, leak return lines

1шт.

33

P4037588

END FITTING

ADAPTER - straight, hose

1шт.

34

P2537407

BLANK-OFF PLUG

CAP - hydraulic fitting, 18 mm - 1.5, if used

1шт.

35

P3837686

PIPE

FITING - stem

3шт.

36

P3037504

UNION

ADAPTER ASSEMBLY - straight, Includes: O-ring P3037504

3шт.

P945293

WASHER, SEALING

O-RING - adapter

1шт.

37

P4037588

END FITTING

ADAPTER - straight, hose

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
