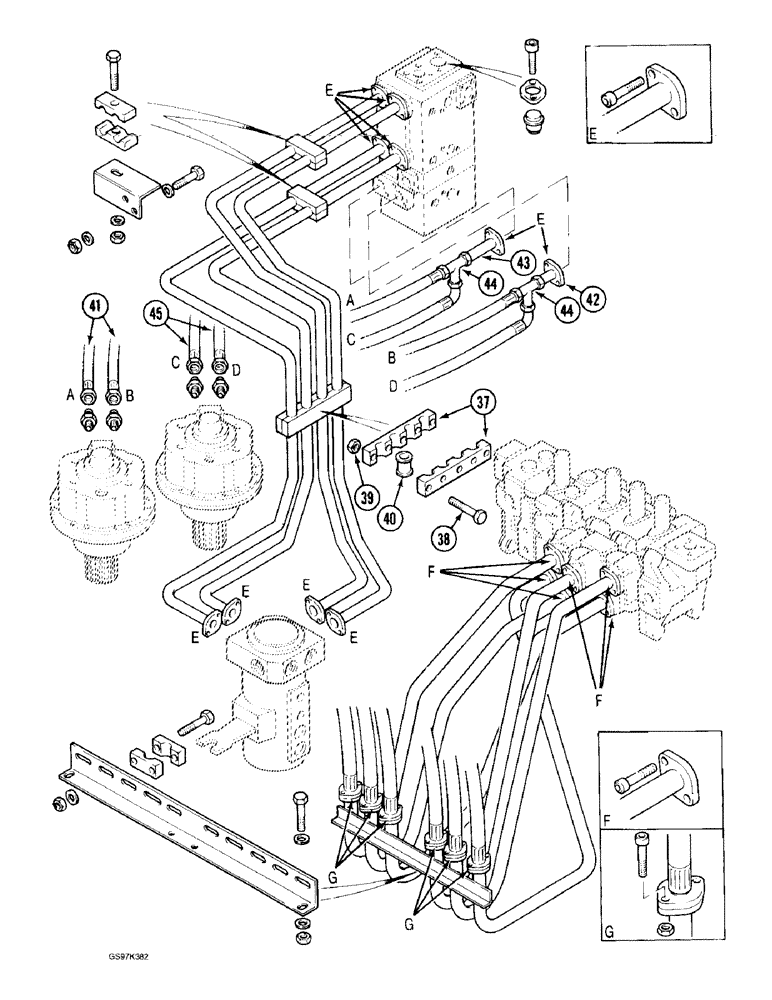

Запчасти Case 170C (8-064) - HYDRLC CIRCT FROM MAIN CONTRL VLVS,TO SWIVL,SWING MOTORS & CYLINDERS,PIN 74644-74662,PIN 02301 & AFT (08) - HYDRAULICS

37

P3820357

SHIN

CLAMP - drive control tubes, at swivel

2шт.

38

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

- hex, 12 - 1.75 x 90 mm (Replaces bolt P33844)

5шт.

39

P834549

SAFETY NUT

NUT - hex, self-locking, 12 mm

5шт.

40

P741440

BUSHING

INSULATOR -, Serial Range: tube-clamp

4шт.

41

P3731976

HOSE

- tee to swing motor, 800 mm (31-1/2 inch) long

2шт.

42

P1937694

PIPE,26.75 mm DIA x 90 mm L

TUBE - short, swing control circuit

1шт.

43

P2337604

PIPE

TUBE - long, swing control circuit

1шт.

44

P537203

TEE

- swing control hose

2шт.

45

P4431933

HOSE

- tee to swing motor, 500 mm (19-11/16 inch) long

2шт.
