Запчасти Case 170C (8-062) - HYDRLC CIRCT FROM MAIN CONTROL VLVS,TO SWIVL,SWING MOTORS & CYLINDERS,PIN74644-74662,PIN 02301 & AFT (08) - HYDRAULICS

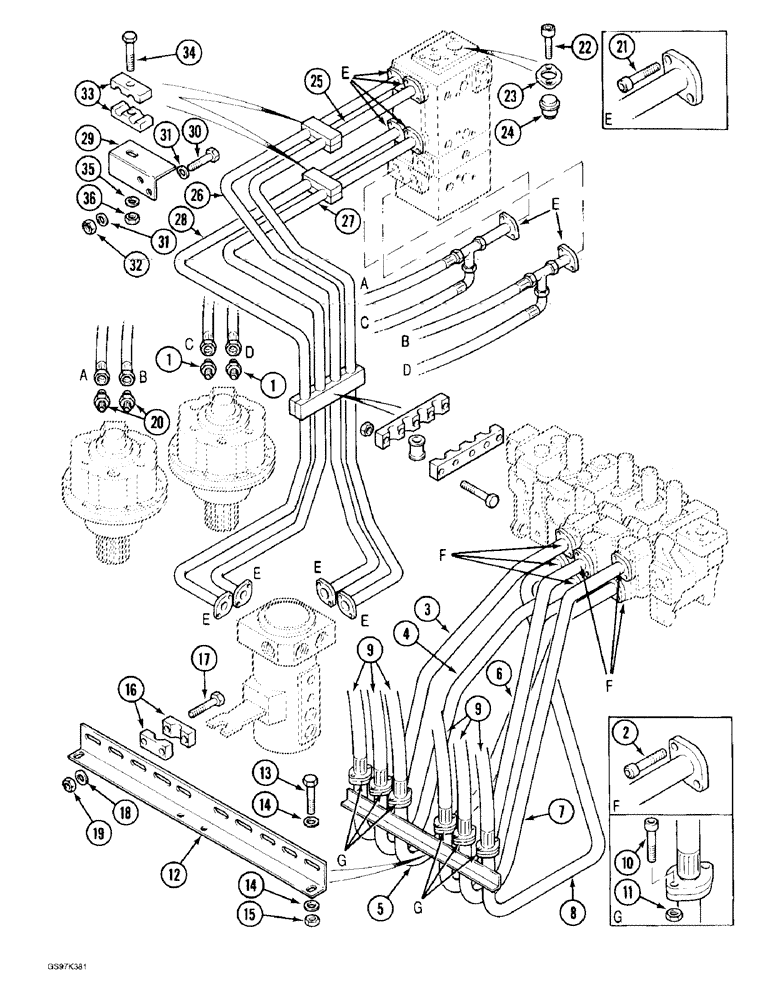

Схема запчастей Case 170C - (8-062) - HYDRLC CIRCT FROM MAIN CONTROL VLVS,TO SWIVL,SWING MOTORS & CYLINDERS,PIN74644-74662,PIN 02301 & AFT (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

P3037501

UNION

ADAPTER - hose to swing motor

2шт.

P5746063

SEAL

O-RING - adapter

1шт.

2

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

12шт.

3

P5849015

PIPE

TUBE - attachment circuit

1шт.

4

P5849016

PIPE

TUBE - attachment circuit

1шт.

5

P5849014

PIPE

TUBE - attachment circuit

1шт.

6

P5849012

PIPE

TUBE - attachment circuit

1шт.

7

P7747627

PIPE

TUBE - attachment circuit

1шт.

8

P5849013

PIPE

TUBE - attachment circuit

1шт.

9

P1031988

HOSE

- attachment circuit, 1600 mm (63 inch) long

6шт.

10

P532942

SCREW

BOLT - hex socket, 12 mm x 60 mm, class 10.9

12шт.

11

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

12шт.

12

P1831652

ANGLE BAR

BRACKET - mounting, tube clamps

1шт.

13

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

- hex, 12 - 1.75 x 90 mm (Replaces bolt P33844)

2шт.

14

P4328731

WASHER

SPACER - bolt, 4 mm thick

4шт.

15

P834549

SAFETY NUT

NUT - hex, self-locking, 12 mm

2шт.

16

P520317

SHIN

CLAMP -, Serial Range: tubes-bracket

12шт.

17

614-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8, Full Thd

- (Replaces bolt P32678) Hex, M12 x 100, 8.8, Full Thd

12шт.

18

P3528793

WASHER

SPACER - bolt, 4 mm thick

12шт.

19

P834549

SAFETY NUT

NUT - hex, self-locking, 12 mm

12шт.

20

P337584

UNION

ADAPTER ASSEMBLY - hose to swing motor, Includes: O-ring P5746063

2шт.

P5746063

SEAL

O-RING - adapter

1шт.

21

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

BOLT - hex socket, 12 mm x 35 mm, class 10.9

12шт.

22

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

BOLT - hex socket, 12 mm x 35 mm, class 10.9

2шт.

23

P724185

SHIN

PLATE - blocking, valve port

1шт.

24

P1627865

BLANK-OFF PLUG

PLUG - valve port

1шт.

25

P7149138

PIPE

TUBE - drive circuit, Serial Range: valve-swivel

1шт.

26

P7149137

PIPE

TUBE - drive circuit, Serial Range: valve-swivel

1шт.

27

P7149140

PIPE

TUBE - drive circuit, Serial Range: valve-swivel

1шт.

28

P7149139

PIPE

TUBE - drive circuit, Serial Range: valve-swivel

1шт.

29

P3531587

ANGLE BAR

BRACKET - clamp mounting

2шт.

30

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm (Replaces bolt P1133839)

4шт.

31

P3528795

WASHER

SPACER - bolt, 7 mm thick

8шт.

32

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P1634563) M10 x 1.5, Cl 8

4шт.

33

P120359

SHIN

CLAMP - drive circuit tubes

4шт.

34

P33897

SCREW

BOLT - hex, 14 mm x 100 mm

2шт.

35

P3528792

WASHER

SPACER - bolt, 10 mm thick

2шт.

36

P134549

SAFETY NUT

NUT - hex, self-locking, 14 mm Continued on next figure

2шт.

Выбрано товаров: 38
