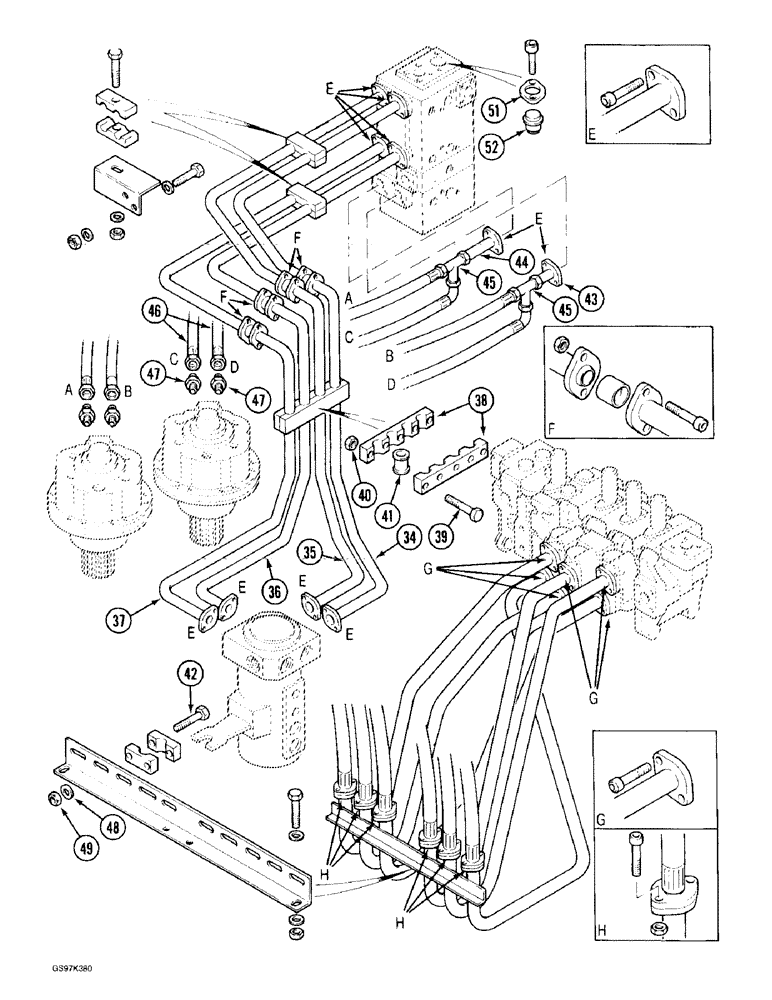

Запчасти Case 170C (8-060) - HYDRAULIC CIRCUIT FROM MAIN CONTROL VALVES, TO SWIVEL, SWING MOTORS & CYLINDERS,P.I.N. 74501 - 74643 (08) - HYDRAULICS

34

P6249044

PIPE

TUBE - drive control circuit, at swivel

1шт.

35

P6249046

PIPE

TUBE - drive control circuit, at swivel

1шт.

36

P7149140

PIPE

TUBE - drive control circuit, at swivel (Replaces tube P6249045)

1шт.

37

P7149139

PIPE

TUBE - drive control circuit, at swivel (Replaces tube P6249043)

1шт.

38

P3820357

SHIN

CLAMP - drive control tubes, at swivel

2шт.

39

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

- hex, 12 - 1.75 x 90 mm (Replaces bolt P33844)

5шт.

40

P834549

SAFETY NUT

NUT - hex, self-locking, 12 mm

5шт.

41

P741440

BUSHING

INSULATOR -, Serial Range: tube-clamp

4шт.

42

614-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8, Full Thd

- (Replaces bolt P32678) Hex, M12 x 100, 8.8, Full Thd

12шт.

43

P1937694

PIPE,26.75 mm DIA x 90 mm L

TUBE - short, swing control circuit

1шт.

44

P2337604

PIPE

TUBE - long, swing control circuit

1шт.

45

P537203

TEE

- swing control hose

2шт.

46

P4431933

HOSE

- tee to swing motor, 500 mm (19-11/16 inch) long

2шт.

47

P3037501

UNION

ADAPTER ASSEMBLY - hose to swing motor, Includes: O-ring P5746063

2шт.

P5746063

SEAL

O-RING - adapter

1шт.

48

P3528793

WASHER

SPACER - bolt, 4 mm thick

12шт.

49

P834549

SAFETY NUT

NUT - hex, self-locking, 12 mm

12шт.

51

P724185

SHIN

PLATE - blocking, valve port

1шт.

52

P1627865

BLANK-OFF PLUG

PLUG - valve port

1шт.
