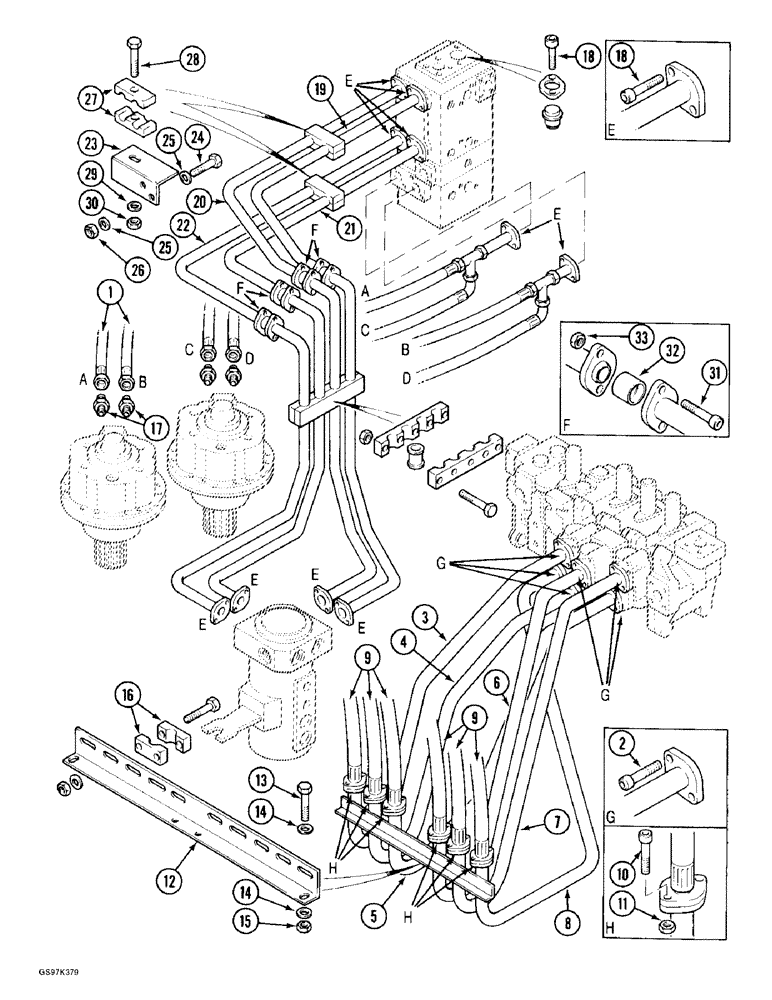

Запчасти Case 170C (8-058) - HYDRAULIC CIRCUIT FROM MAIN CONTROL VALVES, TO SWIVEL, SWING MOTORS & CYLINDERS,P.I.N. 74501 - 74644 (08) - HYDRAULICS

1

P3731976

HOSE

- tee to swing motor, 800 mm (31-1/2 inch) long

2шт.

2

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

12шт.

3

P5849015

PIPE

TUBE - attachment circuit

1шт.

4

P5849016

PIPE

TUBE - attachment circuit

1шт.

5

P5849014

PIPE

TUBE - attachment circuit

1шт.

6

P5849012

PIPE

TUBE - attachment circuit

1шт.

7

P7747627

PIPE

TUBE - attachment circuit

1шт.

8

P5849013

PIPE

TUBE - attachment circuit

1шт.

9

P1031988

HOSE

- attachment circuit, 1600 mm (63 inch) long

6шт.

10

P532942

SCREW

BOLT - hex socket, 12 mm x 60 mm, class 10.9

12шт.

11

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

12шт.

12

P1831652

ANGLE BAR

BRACKET - mounting, tube clamps

1шт.

13

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

- hex, 12 - 1.75 x 90 mm (Replaces bolt P33844)

2шт.

14

P4328731

WASHER

SPACER - bolt, 4 mm thick

4шт.

15

P834549

SAFETY NUT

NUT - hex, self-locking, 12 mm

2шт.

16

P520317

SHIN

CLAMP -, Serial Range: tubes-bracket

12шт.

17

P337584

UNION

ADAPTER ASSEMBLY - hose to swing motor, Includes: O-ring P5746063

2шт.

P5746063

SEAL

O-RING - adapter

1шт.

18

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

BOLT - hex socket, 12 mm x 35 mm, class 10.9

14шт.

19

P7747646

PIPE

TUBE - drive circuit, at valve

1шт.

20

P7747645

PIPE

TUBE - drive circuit, at valve

1шт.

21

P7149140

PIPE

TUBE - drive circuit, at valve (Replaces tube P6547172)

1шт.

22

P7149139

PIPE

TUBE - drive circuit, at valve (Replaces tube P6547171)

1шт.

23

P3531587

ANGLE BAR

BRACKET - clamp mounting

2шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces bolt P1133839) M10 x 1.5, Cl 8

4шт.

25

P3528795

WASHER

SPACER - bolt, 7 mm thick

8шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P1634563) M10 x 1.5, Cl 8

4шт.

27

P120359

SHIN

CLAMP - drive circuit tubes

4шт.

28

P33897

SCREW

BOLT - hex, 14 mm x 100 mm

2шт.

29

P3528792

WASHER

SPACER - 10 mm thick, bolt

2шт.

30

P134549

SAFETY NUT

NUT - hex, self-locking, 14 mm

2шт.

31

P1432903

SCREW

BOLT - hex socket, 10 mm x 85 mm, class 10.9

8шт.

32

P1737758

JUNCTION

ADAPTER - tube flange

4шт.

33

829-1410

NUT,M10 x 1.5, Cl 10.9

; Continued on next figure M10, Cl 10

8шт.
