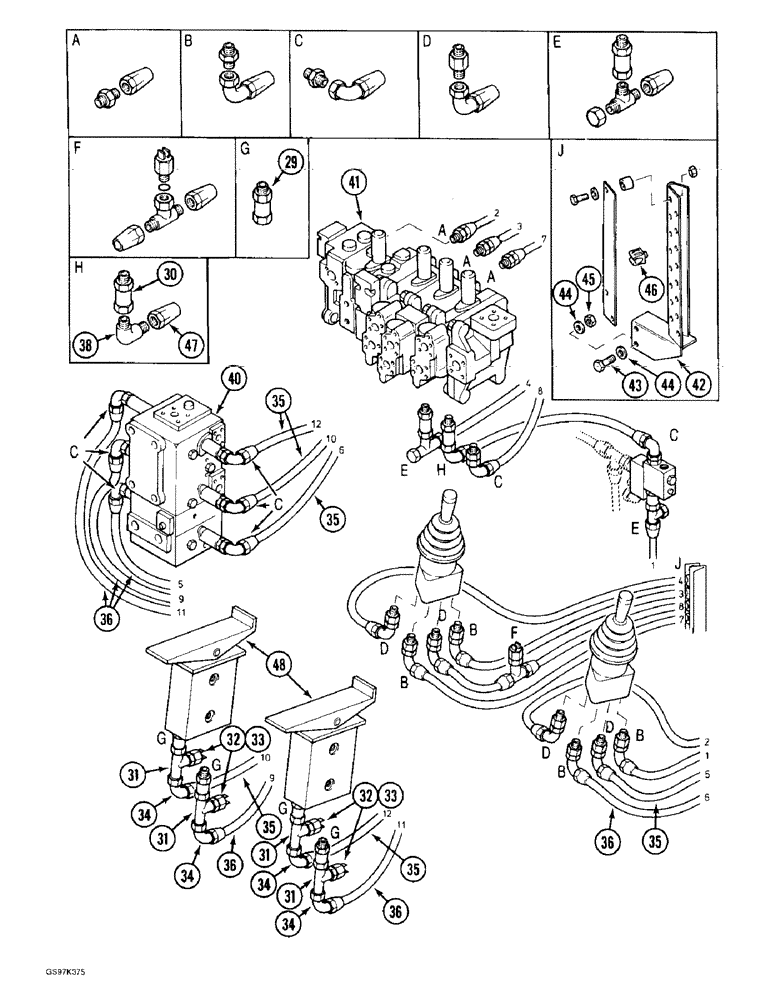

Запчасти Case 170C (8-050) - HYDRAULIC CONTROL CIRCUIT, TO MAIN CONTROL VALVES (08) - HYDRAULICS

29

P4037576

FITTING

TUBE ASSEMBLY - adapter, at foot control valve, Includes: O-ring P7046042

4шт.

P7046042

SEAL

O-RING - tube adapter

1шт.

30

P4037577

FITTING

TUBE ASSEMBLY - adapter, hose from attachment valve to parallel supply valve, Includes: O-ring P945295

1шт.

P945295

SEAL

O-RING - adapter

1шт.

31

P1237223

TEE

- sender to control circuit

4шт.

32

P1241847

ELECTRO/HYD CONTACT

SENDER - electrical, see Figures 4-33 or 4-35 for electrical connections

4шт.

33

P344419

WASHER, SEALING

SEAL -, Serial Range: sender-tee

4шт.

34

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

4шт.

35

REF

INSTRUCTION

HOSE - control circuit, 4000 mm (157-1/2 inch) long, cut from bulk hose P1103640 below

3шт.

36

REF

INSTRUCTION

HOSE - control circuit, 4500 mm (177 inch) long, cut from bulk hose P1103640 below

3шт.

38

P1737051

ANGLE

ELBOW - 90 degree, tube to hose adapter

1шт.

40

REF

INSTRUCTION

VALVE ASSEMBLY - control, swing and drive, parts list Figures 8-112 through 8-119A

1шт.

41

REF

INSTRUCTION

VALVE ASSEMBLY - control, attachment, parts list Figures 8-100 through 8-110

1шт.

42

P4127150

SUPPORT

BRACKET - support, control circuit hose retainers

1шт.

43

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm (Replaces bolt P1133839)

2шт.

44

P4328796

WASHER

SPACER - bolt, 7 mm thick

4шт.

45

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

2шт.

46

P2036942

SUPPORT

RETAINER - control circuit hose

18шт.

47

P4037588

END FITTING

ADAPTER - straight, control circuit hose

1шт.

48

REF

INSTRUCTION

VALVE ASSEMBLY - control, foot, parts list Figures 8-128 and 8-130

2шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
