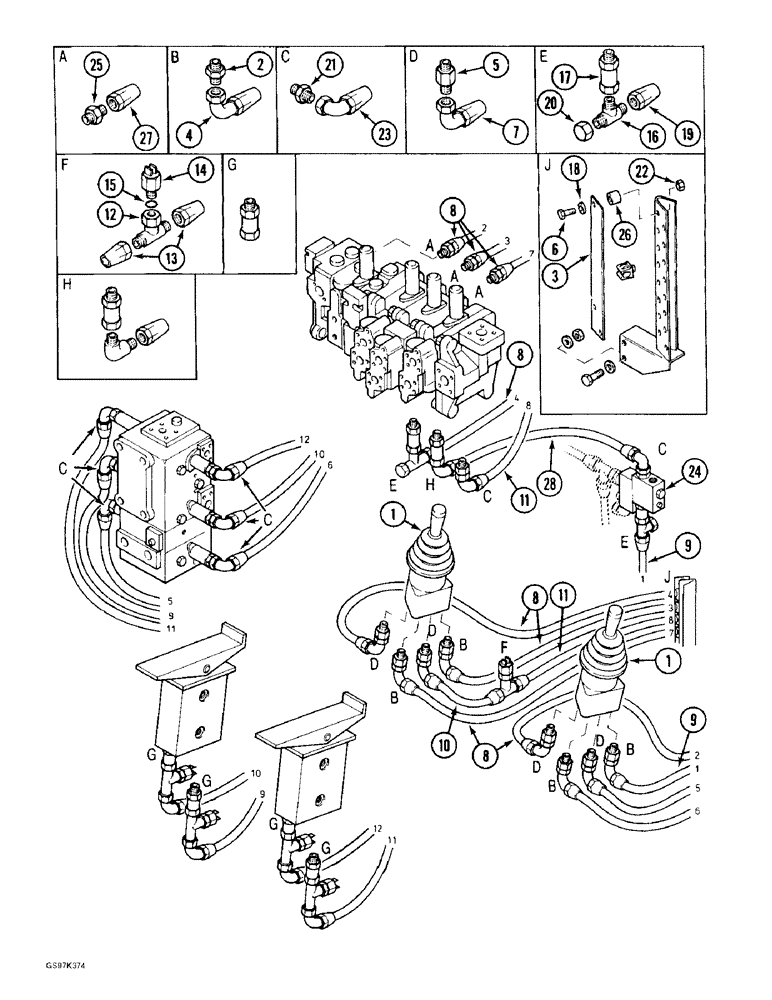

Запчасти Case 170C (8-048) - HYDRAULIC CONTROL CIRCUIT, TO MAIN CONTROL VALVES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hand control, parts list Figure 8-124 or 8-126

2шт.

2

P4037571

UNION

ADAPTER ASSEMBLY - straight, short, at hand control valves, Includes: O-ring P7046042

4шт.

P7046042

SEAL

O-RING - adapter

1шт.

3

P2023258

PLATE

- support bracket

1шт.

4

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

4шт.

5

P4037572

UNION

ADAPTER ASSEMBLY - straight, long, at hand control valve, Includes: O-ring P7046042

4шт.

P7046042

SEAL

O-RING - adapter

1шт.

6

P833889

SCREW

BOLT - hex, 6 mm x 50 mm

2шт.

7

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

4шт.

8

REF

INSTRUCTION

HOSE - control circuit, 3200 mm (126 inch) long, cut from bulk hose P1103640 below

4шт.

9

REF

INSTRUCTION

HOSE - control circuit, 2000 mm (78-3/4 inch) long, cut from bulk hose P1103640 below

1шт.

10

REF

INSTRUCTION

HOSE - control circuit, 1300 mm (51-3/16 inch) long, cut from bulk hose P1103640 below

1шт.

11

REF

INSTRUCTION

HOSE - control circuit, 2000 mm (78-3/4 inch) long, cut from bulk hose P1103640 below

1шт.

12

P1237223

TEE

- control, Serial Range: circuit,-sender

1шт.

13

P4037588

END FITTING

ADAPTER - straight, control circuit hose

2шт.

14

P1241847

ELECTRO/HYD CONTACT

SENDER - electrical, see Figure 4-14 for electrical connections

1шт.

15

P344419

WASHER, SEALING

SEAL - electrical sender

1шт.

16

P937275

TEE

- control circuit, at attachment control valve and parallel supply valve

2шт.

17

P4037577

FITTING

TUBE ASSEMBLY - adapter, tee to valve, Includes: O-ring P945295

2шт.

P945295

SEAL

O-RING - adapter

1шт.

18

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

19

P4037588

END FITTING

ADAPTER - straight, control circuit hose

2шт.

20

P2537407

BLANK-OFF PLUG

CAP - tee

2шт.

21

P4037573

UNION

ADAPTER ASSEMBLY - straight, to attachment and parallel supply control valve, Includes: O-ring P945295

8шт.

P945295

SEAL

O-RING - adapter

1шт.

22

832-10406

NUT,M6 x 1, Cl 8

LOCK, (Replaces nut P234513) M6 x 1, Cl 8

2шт.

23

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

8шт.

24

P3143338

BLOCK ASSY.

VALVE ASSEMBLY - control, parallel supply, parts list Figure 8-138

1шт.

25

P4037573

UNION

ADAPTER ASSEMBLY - straight, to attachment and parallel supply control valve, Includes: O-ring P945295

3шт.

P945295

SEAL

O-RING - adapter

1шт.

26

P1231865

SPACER

- plate to support bracket

2шт.

27

P4037588

END FITTING

ADAPTER - straight, control circuit hose

3шт.

28

REF

INSTRUCTION

HOSE - control circuit, 800 mm (31-1/2 inch) long, cut from bulk hose P1103640 below

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter Continued on next figure

1шт.
