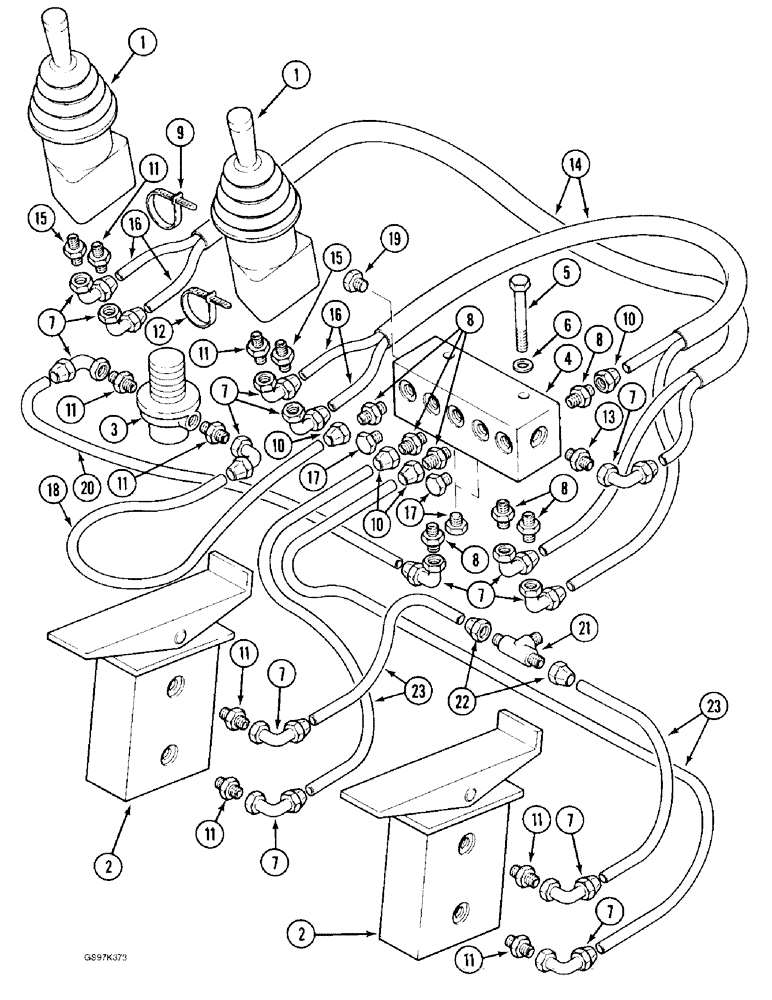

Запчасти Case 170C (8-046) - HYDRAULIC CONTROL CIRCUIT, MANIFOLD TO HAND AND FOOT CONTROL VALVES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, hand, see Figure 8-124 or 8-126

2шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - control, foot, see Figure 8-128 or 8-130

2шт.

3

P1443532

PUMP

- foot

1шт.

4

P2643329

BLOCK ASSY.

MANIFOLD - control circuits

1шт.

5

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

2шт.

6

P3528795

WASHER

SPACER - bolt, 7 mm thick

2шт.

7

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hoses

14шт.

8

P4037573

UNION

ADAPTER ASSEMBLY - straight, Includes: O-ring P945295

7шт.

P945295

SEAL

O-RING - adapter

1шт.

9

P136922

CLAMP

STRAP - tie, control circuit hoses, large

1шт.

10

P4037588

END FITTING

ADAPTER - straight, control circuit hoses

4шт.

11

P4037571

UNION

ADAPTER ASSEMBLY - straight, Includes: O-ring P7046042

8шт.

P7046042

SEAL

O-RING - adapter

1шт.

12

P51946

CLAMP

STRAP - tie, control circuit hoses, small

1шт.

13

P4037574

UNION

ADAPTER ASSEMBLY - straight, Includes: O-ring P945293

1шт.

P945293

WASHER, SEALING

O-RING - adapter

1шт.

14

P4931937

LOOM

SLEEVE - control circuit hoses from hand control valves

2шт.

15

P4037572

UNION

ADAPTER ASSEMBLY - straight, Includes: O-ring P7046042

2шт.

P7046042

SEAL

O-RING - adapter

1шт.

16

REF

INSTRUCTION

HOSE - control circuit, 1600 mm (63 inch) long, cut from bulk hose P1103640 below

4шт.

17

P1437456

PLUG

ASSEMBLY - manifold ports, Includes: O-ring P945295

4шт.

P945295

SEAL

O-RING - plug

1шт.

18

REF

INSTRUCTION

HOSE - control circuit, 400 mm (15-3/4 inch) long, cut from bulk hose P1103640 below

1шт.

19

P1337445

PLUG

ASSEMBLY - manifold port, end, Includes: O-ring P945293

1шт.

P945293

WASHER, SEALING

O-RING - plug

1шт.

20

REF

INSTRUCTION

HOSE - control circuit, 500 mm (19-11/16 inch) long, cut from bulk hose P1103640 below

1шт.

21

P937275

TEE

- control circuit lines

1шт.

22

P4037588

END FITTING

ADAPTER - straight, control circuit hoses

2шт.

23

REF

INSTRUCTION

HOSE - control circuit, 700 mm (27-9/16 inch) long, cut from bulk hose P1103640 below

4шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
