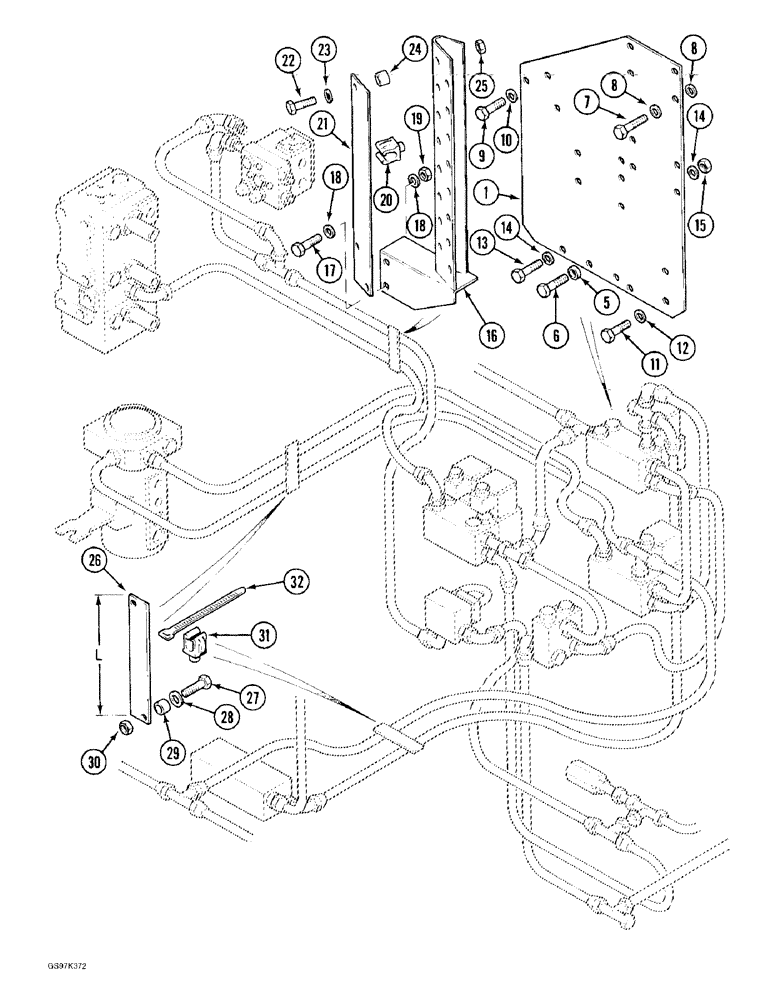

Запчасти Case 170C (8-044) - HYDRAULIC CONTROL CIRCUIT, SOLENOID VALVE BRACKETS AND HOSE CLAMPS (08) - HYDRAULICS

1

P4127152

LARGE PLATE

BRACKET - mounting, solenoid control and relief valve

1шт.

5

P3528799

WASHER

SPACER - mounting bracket bolt

2шт.

6

P733035

SCREW

BOLT - hex, 6 mm x 35 mm

2шт.

7

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, solenoid control valve to bracket (Replaces bolt P33815)

12шт.

8

P3528794

WASHER

SPACER - mounting bolt

24шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, solenoid control valve to bracket (Replaces bolt P33815)

2шт.

10

P3528794

WASHER

SPACER - mounting bolt

2шт.

11

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, CL 8.8, M8 x 1.25 x 30

2шт.

12

P4328729

WASHER

SPACER - mounting bolt

2шт.

13

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm (Replaces bolt P933818)

4шт.

14

P3528795

WASHER

SPACER - mounting bracket

8шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

4шт.

16

P4127150

SUPPORT

BRACKET - control circuit hose retainers

1шт.

17

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm (Replaces bolt P1133839)

2шт.

18

P4328796

WASHER

SPACER - mounting bolt

4шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

2шт.

20

P2036942

SUPPORT

RETAINER - control circuit hoses

1шт.

21

P2023258

PLATE

SUPPORT - bracket

1шт.

22

P833889

SCREW

BOLT - support bracket

2шт.

23

P3528799

WASHER

SPACER - bracket bolt, thin

2шт.

24

P1231865

SPACER

- bracket bolt, thick

2шт.

25

832-10406

NUT,M6 x 1, Cl 8

LOCK, , Bracket bolt (Replaces nut P234513) M6 x 1, Cl 8

2шт.

26

P2023258

PLATE

SUPPORT - control circuit hose retainers, 381 mm (15 inch) long

1шт.

26

P2023256

PLATE

SUPPORT - control circuit hose retainers, 297 mm (11-11/16 inch) long

1шт.

26

P2023257

PLATE

SUPPORT - control circuit hose retainers, 213 mm (8-3/8 inch) long

1шт.

27

P833889

SCREW

BOLT - support

2шт.

28

P3528799

WASHER

SPACER - support bolt, thin

2шт.

29

P1231865

SPACER

- support bolt, thick

2шт.

30

832-10406

NUT,M6 x 1, Cl 8

LOCK, , Bracket bolt (Replaces nut P234513) M6 x 1, Cl 8

2шт.

31

P2036942

SUPPORT

RETAINER - control circuit hoses

1шт.

32

P51946

CLAMP

STRAP - tie, control circuit hoses

1шт.
