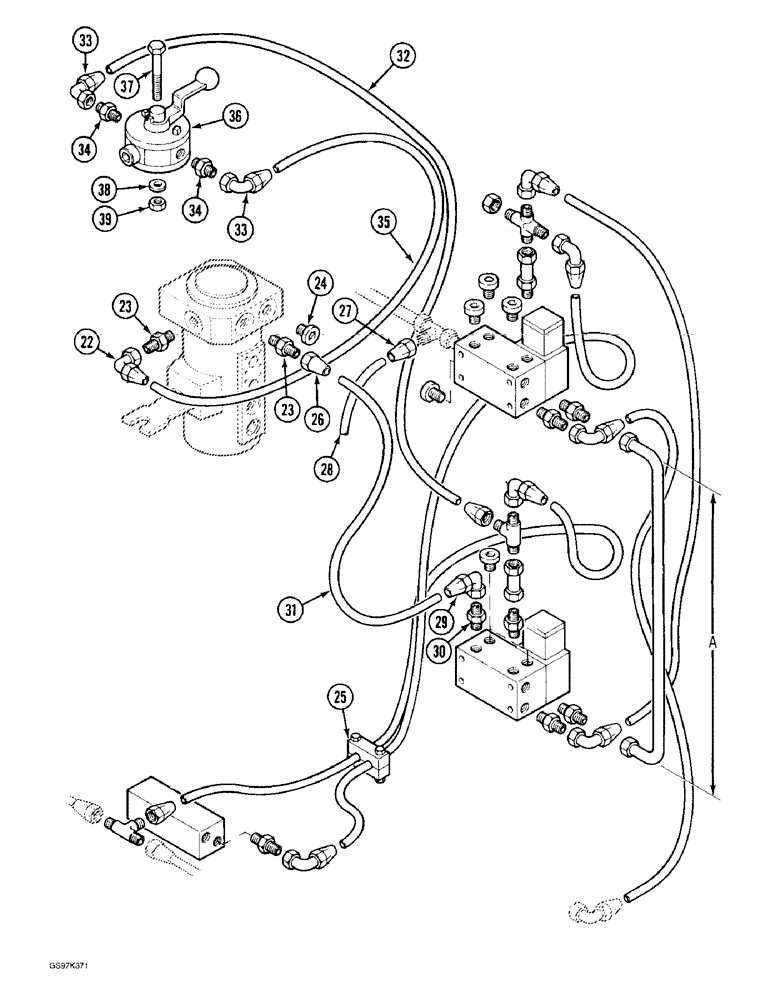

Запчасти Case 170C (8-042) - HYDRAULIC CONTROL CIRCUIT, FOR SOLENOID CONTROL VALVES (08) - HYDRAULICS

22

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

1шт.

23

P4037575

UNION

ADAPTER ASSEMBLY - straight, control circuit hose, Included: O-ring P5746063

2шт.

P5746063

SEAL

O-RING - adapter

1шт.

24

P1337445

PLUG

ASSEMBLY - solenoid control valve, Included: O-ring P945293

1шт.

P945293

WASHER, SEALING

O-RING - plug

1шт.

25

REF

INSTRUCTION

BRACKET - support, control circuit hoses, see Figure 8-44 for clamps and brackets

1шт.

26

P4037588

END FITTING

ADAPTER - straight, control circuit hose

1шт.

27

P4037588

END FITTING

ADAPTER - straight, control circuit hose

1шт.

28

REF

INSTRUCTION

HOSE - control circuit, 400 mm (15-3/4 inch) long, cut from bulk hose P1103640 below

1шт.

29

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

1шт.

30

P4037573

UNION

ADAPTER ASSEMBLY - straight, control circuit hose, Included: O-ring P945295

1шт.

P945295

SEAL

O-RING - adapter

1шт.

31

REF

INSTRUCTION

HOSE - control circuit, 1600 mm (63 inch) long, cut from bulk hose P1103640 below

1шт.

32

REF

INSTRUCTION

HOSE - control circuit, 3200 mm (126 inch) long, cut from bulk hose P1103640 below

1шт.

33

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

34

P4037571

UNION

ADAPTER ASSEMBLY - straight, control circuit hose, Included: O-ring P7046042

2шт.

P7046042

SEAL

O-RING - adapter

1шт.

35

REF

INSTRUCTION

HOSE - control circuit, 2500 mm (98-3/8 inch) long, cut from bulk hose P1103640 below

1шт.

36

P3143660

BLOCK ASSY.

VALVE - selector

1шт.

37

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

BOLT, (Replaces bolt P32918) Hex Soc Hd, M6 x 45, 8.8

2шт.

38

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

39

832-10406

NUT,M6 x 1, Cl 8

LOCK, (Replaces nut P234513) M6 x 1, Cl 8

2шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
