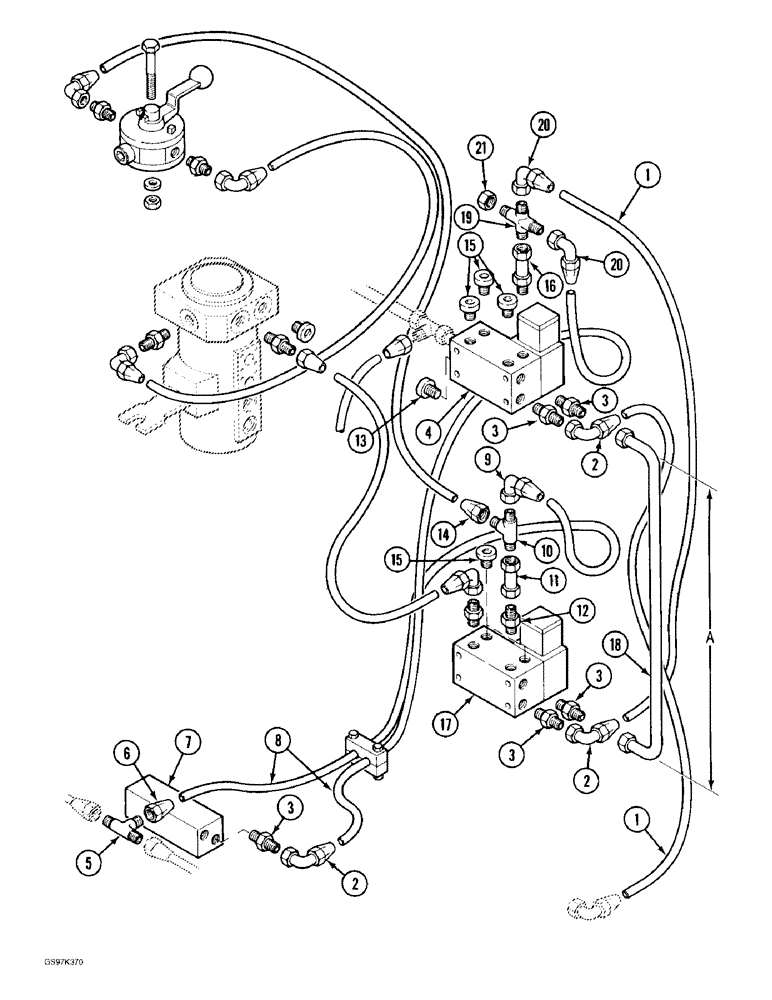

Запчасти Case 170C (8-040) - HYDRAULIC CONTROL CIRCUIT, FOR SOLENOID CONTROL VALVES (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - control circuit, 500 mm (19-11/16 inch) long, cut from bulk hose P1103640 below, see Figure 8-38 for continuation of circuit

2шт.

2

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

3шт.

3

P4037574

UNION

ADAPTER ASSEMBLY - straight, control circuit hose, Included: O-ring P945293

5шт.

P945293

WASHER, SEALING

O-RING - adapter

1шт.

4

REF

INSTRUCTION

BLOCK - manifold, solenoid valve, see Figure 8-132 for correct block

1шт.

5

REF

INSTRUCTION

TEE - hoses, see page 8-47

1шт.

6

P4037588

END FITTING

ADAPTER - straight, control circuit hose

1шт.

7

P2643329

BLOCK ASSY.

MANIFOLD - control circuit, see Figure 8-46

1шт.

8

REF

INSTRUCTION

HOSE - control circuit, 1600 mm (63 inch) long, cut from bulk hose P1103640 below

2шт.

9

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

1шт.

10

P937275

TEE

- control circuit hose

1шт.

11

P4137651

PIPE

TUBE - adapter, tee to solenoid valve

1шт.

12

P4037573

UNION

ADAPTER ASSEMBLY - straight, control circuit hose, Included: O-ring P945295

1шт.

P945295

SEAL

O-RING - adapter

1шт.

13

P1337445

PLUG

ASSEMBLY - solenoid control valve, Included: O-ring P945293

1шт.

P945293

WASHER, SEALING

O-RING - plug

1шт.

14

P4037588

END FITTING

ADAPTER - straight, control circuit hose

1шт.

15

P1437456

PLUG

ASSEMBLY - solenoid block, Included: O-ring P945295

5шт.

P945295

SEAL

O-RING - adapter

1шт.

16

P4037577

FITTING

TUBE ASSEMBLY - adapter, tee to solenoid valve, Included: O-ring P945295

1шт.

P945295

SEAL

O-RING - adapter

1шт.

17

REF

INSTRUCTION

BLOCK - manifold, solenoid valve, see Figure 8-132 for correct block

1шт.

18

P8347676

PIPE

TUBE - connecting, solenoid control valves, dimension “A” is 190 mm (7-1/2 inch), no longer available, order (1) P8347652 tube, item 18

1шт.

18

P8347652

PIPE

TUBE - connecting, solenoid control valves, dimension “A” is 210 mm (8-1/4 inch)

1шт.

19

P1237220

CROSS

TEE - control circuit, at solenoid valve

1шт.

20

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

21

P2537407

BLANK-OFF PLUG

CAP - tee

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter, used for Ref. 8

1шт.

Several pilot lines on this figure reference to cut from P1103640 bulk hose. They use the replaceable fittings shown on this figure. Production units actually had premade hoses with crimped on fittings. These production hoses were made of a plastic material. Correct service replacements per Claude Lahcen in France would be to use the bulk hose and replaceable fittings shown here.

1шт.

Continued on next figure

1шт.
