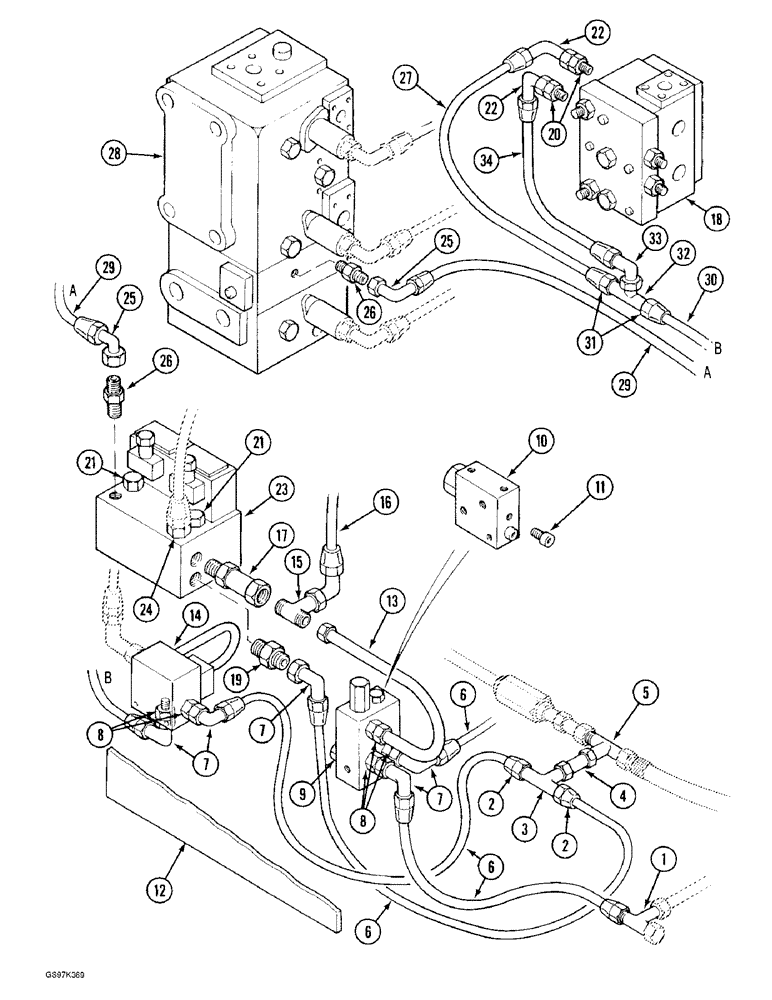

Запчасти Case 170C (8-038) - HYDRAULIC CONTROL CIRCUIT, FOR SOLENOID CONTROL VALVES (08) - HYDRAULICS

1

P1237221

TEE

- control circuit

1шт.

2

P4037588

END FITTING

ADAPTER - straight, control circuit hose

2шт.

3

P937275

TEE

- control circuit hose

1шт.

4

P4137651

PIPE

TUBE - adapter, to control circuit tee

1шт.

5

P1237222

TEE

- return, Serial Range: tubes-cooler

1шт.

6

REF

INSTRUCTION

HOSE - control circuit, see page 8-41 for continuation of circuit

4шт.

7

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

5шт.

8

P4037571

UNION

ADAPTER ASSEMBLY - straight, at solenoid and relief valve, Includes: O-ring P7046042

5шт.

P7046042

SEAL

O-RING - adapter

1шт.

9

P1437455

PLUG

ASSEMBLY - relief valve, Includes: O-ring P7046042

1шт.

P7046042

SEAL

O-RING - plug

1шт.

P1843398

BLOCK ASSY.

VALVE ASSEMBLY - relief, control circuit, Includes: Ref. 10,11

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly P1843398

1шт.

11

P2537448

PLUG

ASSEMBLY - valve body, Includes: O-ring P2230441

1шт.

P2230441

SEAL

O-RING - plug

1шт.

12

REF

INSTRUCTION

BRACKET - support, control circuit hoses, see Figure 8-44 for clamps and brackets

1шт.

13

P7147127

PIPE

TUBE - relief valve to solenoid valve tee

1шт.

14

P3143633

BLOCK ASSY.

VALVE ASSEMBLY - solenoid control, parts list Figure 8-134

1шт.

15

P937275

TEE

- control circuit hose

1шт.

16

REF

INSTRUCTION

HOSE - control circuit, 400 mm (15-3/4 inch) long, cut from bulk hose P1103640 below

1шт.

17

P4037578

FITTING

ADAPTER ASSEMBLY - straight, at solenoid valve, Includes: O-ring P945293

1шт.

P945293

WASHER, SEALING

O-RING - adapter

1шт.

18

P3143338

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, parts list Figure 8-138

1шт.

19

P4037574

UNION

ADAPTER ASSEMBLY - straight, at solenoid valve, Includes: O-ring P945293

1шт.

P945293

WASHER, SEALING

O-RING - adapter

1шт.

20

P4043315

BLOCK ASSY.

ADAPTER ASSEMBLY - straight, control circuit hose to sensing valve, Includes: O-ring P945295

2шт.

P945295

SEAL

O-RING - adapter

1шт.

21

P1437456

PLUG

ASSEMBLY - solenoid valve, Includes: O-ring P945295

2шт.

P945295

SEAL

O-RING - plug

1шт.

22

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

23

REF

INSTRUCTION

BLOCK - manifold, solenoid valve, see page 8-133 for correct block

1шт.

24

REF

INSTRUCTION

ADAPTER - hose, see page 8-53 or 8-55

1шт.

25

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

2шт.

26

P4037573

UNION

ADAPTER - straight, solenoid and center block valves

2шт.

P945295

SEAL

O-RING - adapter

1шт.

27

REF

INSTRUCTION

HOSE - control circuit, 800 mm (31-1/2 inch) long, cut from bulk hose P1103640 below

1шт.

28

REF

INSTRUCTION

VALVE ASSEMBLY - control, swing and drive, parts list Figures 8-112 through 8-119A

1шт.

29

REF

INSTRUCTION

HOSE - control circuit, 2500 mm (98-3/8 inch) long, cut from bulk hose P1103640 below

1шт.

30

REF

INSTRUCTION

HOSE - control circuit, 1300 mm (51-3/16 inch) long, cut from bulk hose P1103640 below

1шт.

31

P4037588

END FITTING

ADAPTER - straight, control circuit hose

2шт.

32

P937275

TEE

- control circuit hose

1шт.

33

P4037590

END FITTING

ADAPTER - 90 degree, control circuit hose

1шт.

34

REF

INSTRUCTION

HOSE - control circuit, 700 mm (27-9/16 inch) long, cut from bulk hose P1103640 below

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
