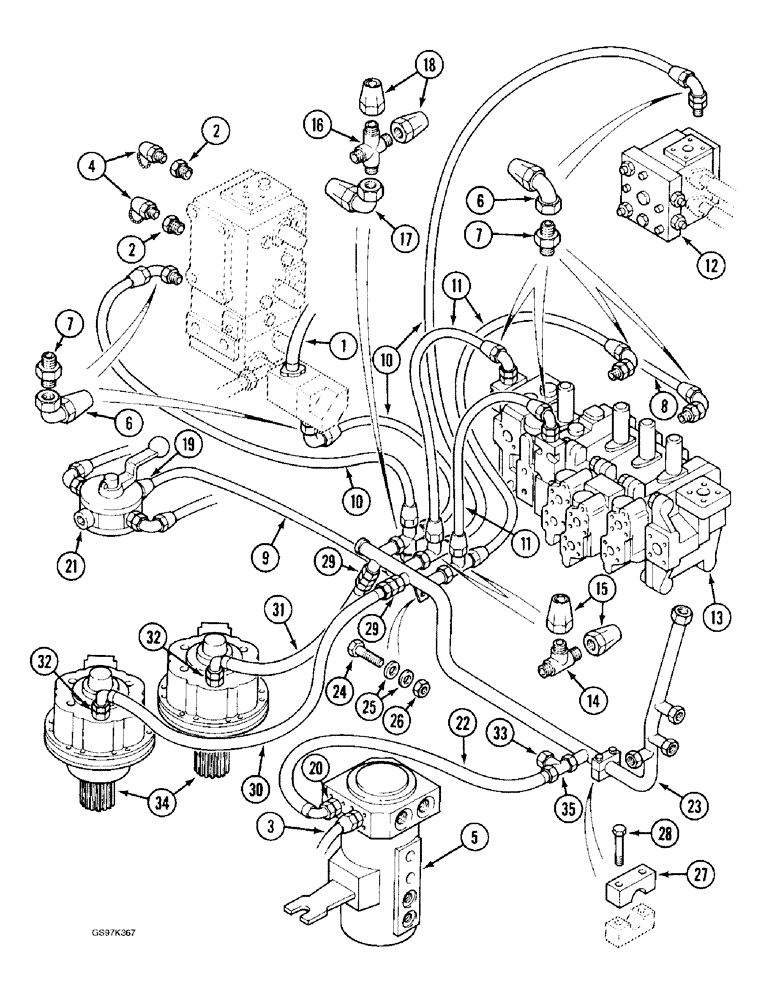

Запчасти Case 170C (8-034) - HYDRAULIC CIRCUIT RETURN LINES, LEAK RETURN TO FILTER (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - return, from regulating valve, 1000 mm (39-3/8 inch) long, see page 8-27 for continuation of circuit

1шт.

2

P637358

RESTRICTOR

ADAPTER ASSEMBLY - disconnect, Includes: O-ring P945293

2шт.

P945293

WASHER, SEALING

O-RING - adapter

2шт.

3

REF

INSTRUCTION

HOSE - control circuit, see page 8-43

1шт.

4

P4037516

MAKING-UP

VALVE ASSEMBLY - pressure check, Includes: Seal P7046042

2шт.

P7046042

SEAL

- pressure check valve

1шт.

5

P1737754

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-164

1шт.

6

P4037590

END FITTING

ADAPTER - leak return hose, 90 degree

6шт.

7

P4037573

UNION

ADAPTER ASSEMBLY - leak return hose, at valve, Includes: O-ring P945295

6шт.

P945295

SEAL

O-RING - adapter

1шт.

8

REF

INSTRUCTION

HOSE - leak return, 800 mm (31-1/2 inch) long, cut from bulk hose P1103640 below

1шт.

9

REF

INSTRUCTION

HOSE - leak return, 1000 mm (39-3/8 inch) long, cut from bulk hose P1103640 below

1шт.

10

REF

INSTRUCTION

HOSE - leak return, 800 mm (31-1/2 inch) long, cut from bulk hose P1103640 below

3шт.

11

REF

INSTRUCTION

HOSE - leak return, 500 mm (19-11/16 inch) long, cut from bulk hose P1103640 below

3шт.

12

REF

INSTRUCTION

VALVE ASSEMBLY - power sensing, parts list Figure 8-138

1шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - control, attachment, parts list Figures 8-100 through 8-110

1шт.

14

P937275

TEE

- leak return hose to manifold tube

2шт.

15

P4037588

END FITTING

ADAPTER - leak return, Serial Range: hose-tee

4шт.

16

P1237220

CROSS

- leak return, Serial Range: hose-manifold

1шт.

17

P4037590

END FITTING

ADAPTER - leak return hose, 90 degree

1шт.

18

P4037588

END FITTING

ADAPTER - leak return, Serial Range: hose-cross

3шт.

19

P4037571

UNION

ADAPTER ASSEMBLY - leak return hose to tee, Includes: O-ring P7046042

2шт.

P7046042

SEAL

O-RING - adapter

1шт.

20

P3037501

UNION

ADAPTER ASSEMBLY - hose, at swivel, Includes: O-ring P5746063

1шт.

P5746063

SEAL

O-RING - adapter

1шт.

21

P1437455

PLUG

ASSEMBLY - selector valve, Includes: O-ring P7046042

1шт.

P7046042

SEAL

O-RING - plug

1шт.

22

P3231996

HOSE

- return, from hydraulic swivel, 800 mm (31-1/2 inch) long

1шт.

23

P3550119

DEUTZ PART

TUBE - manifold, leak return hoses, see Figure 8-37 for hoses to filter, order from Deutz

1шт.

24

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

(Replaces bolt P833802) Hex, M10 x 50, 8.8

2шт.

25

P4328796

WASHER

SPACER - bolt, 7 mm thick

4шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

2шт.

27

P520303

SHIN

CLAMP - tube

1шт.

28

P28374

SCREW

BOLT - hex, 10 mm x 50 mm

2шт.

29

P37550

UNION

ADAPTER - straight, hose to manifold tube

2шт.

30

P4431947

HOSE

- swing motor leak return, 1250 mm (49-1/4 inch) long

1шт.

31

P3731901

HOSE

- swing motor leak return, 630 mm (24-13/16 inch) long

1шт.

32

P3237565

UNION

ADAPTER ASSEMBLY - hose to swing motor, Includes: O-ring P2930494

2шт.

P2930494

GASKET

O-RING - adapter

1шт.

33

P137789

BLANK-OFF PLUG

CAP - at tee

1шт.

34

REF

INSTRUCTION

MOTOR ASSEMBLY - swing, parts list Figure 8-156 or 8-158

2шт.

35

P37233

TEE

- at manifold tube

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
