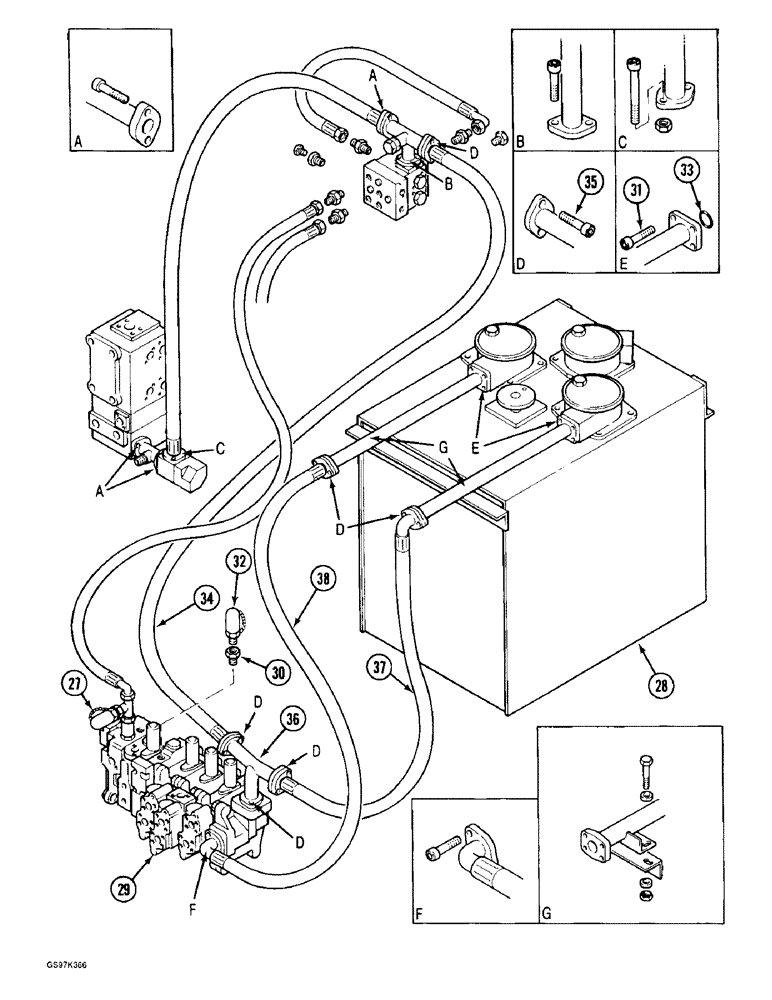

Запчасти Case 170C (8-032) - HYDRAULIC CIRCUIT RETURN LINES, TO FILTERS AT RESERVOIR, P.I.N. 02371 AND AFTER (08) - HYDRAULICS

27

P4037516

MAKING-UP

VALVE ASSEMBLY - pressure check, Includes: Seal P7046042

1шт.

P7046042

SEAL

- pressure check valve

1шт.

28

P1540224

OIL RESERVOIR

RESERVOIR - hydraulic oil, see Figure 8-2 for mounting

1шт.

29

REF

INSTRUCTION

VALVE ASSEMBLY - control, attachment, parts list Figures 8-100 through 8-110

1шт.

30

P637358

RESTRICTOR

ADAPTER ASSEMBLY - test port to heavy lift valve section, Includes: O945293

1шт.

P945293

WASHER, SEALING

O-RING - adapter

1шт.

31

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

8шт.

32

P4037516

MAKING-UP

VALVE ASSEMBLY - pressure check, Includes: Seal P7046042 and Ref. 33

1шт.

P7046042

SEAL

- pressure check valve

1шт.

33

P1230493

O-RING

-, Serial Range: flange-reservoir

2шт.

34

P3231976

HOSE

- power sensing valve to manifold tube, 630 mm (24-13/16 inch) long

1шт.

35

P532924

SCREW

BOLT - hex socket, 14 mm x 45 mm, class 10.9

12шт.

36

P3050107

MANIFOLD

TUBE - manifold, Serial Range: hoses-reservoir

1шт.

37

P3231980

HOSE

- valve end cover and manifold to reservoir, 800 mm (31-1/2 inch) long

1шт.

38

P3231946

HOSE

- valve end cover and manifold to reservoir, 1000 mm (39-3/8 inch) long

1шт.
