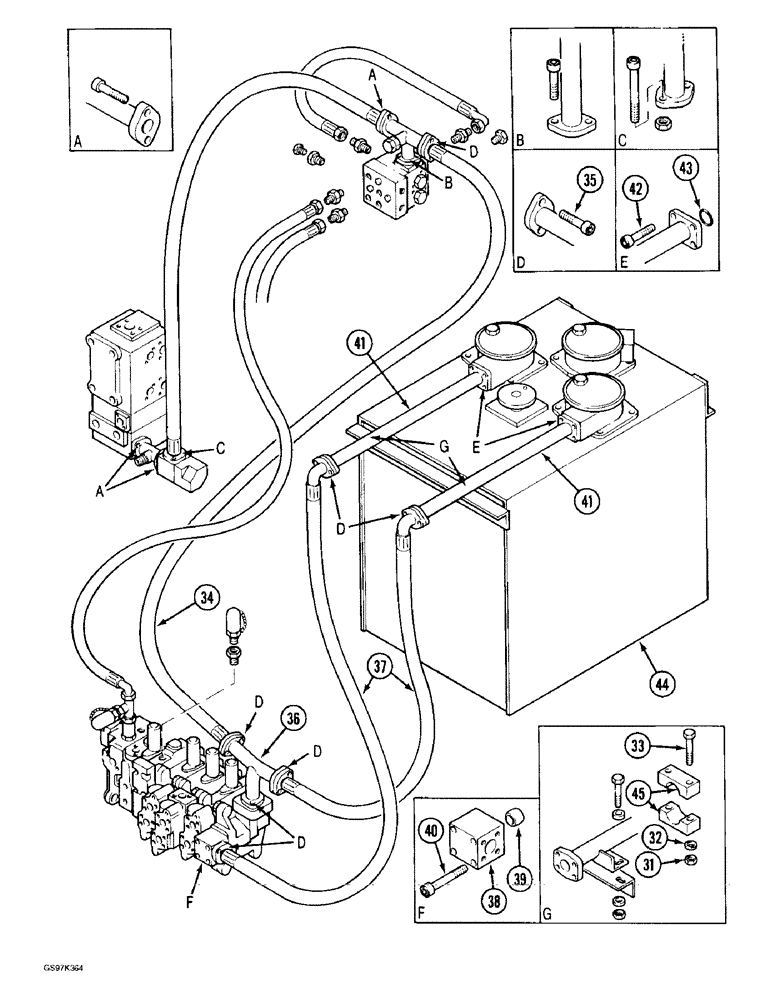

Запчасти Case 170C (8-028) - HYDRAULIC CIRCUIT RETURN LINES, TO FILTERS AT RESERVOIR, P.I.N. 74501 - 74662, P.I.N. 02301 - 02370 (08) - HYDRAULICS

31

P134547

SAFETY NUT

NUT - hex, self-locking, 16 mm

4шт.

32

P4328746

WASHER

SPACER - bolt, 11 mm thick

4шт.

33

814-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

- hex, 16 - 2.0 x 120 mm, used with tube clamps P820304, item 45 only (Replaces bolt P33856)

4шт.

34

P3231976

HOSE

- power sensing valve to manifold tube, 630 mm (24-13/16 inch) long

1шт.

35

P532924

SCREW

BOLT - hex socket, 14 mm x 45 mm, class 10.9

14шт.

36

P3050107

MANIFOLD

TUBE - manifold, Serial Range: hoses-reservoir

1шт.

37

P3231980

HOSE

- valve end cover and manifold to reservoir, 800 mm (31-1/2 inch) long

2шт.

38

P1337066

SHIN

BLOCK - adapter, hose to valve end cover

1шт.

39

P1528830

JUNCTION

ADAPTER - block to end cover

1шт.

40

P532948

SCREW

BOLT - hex socket, 14 mm x 100 mm, class 10.9

4шт.

41

P3050108

PIPE

TUBE - return, Serial Range: hoses-filters

2шт.

42

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

8шт.

43

P1230493

O-RING

-, Serial Range: flange-reservoir

2шт.

44

P1540224

OIL RESERVOIR

RESERVOIR - hydraulic oil, see Figure 8-2 for mounting

1шт.

45

P820304

SHIN

CLAMP - return tubes to reservoir, early production, if used

4шт.
