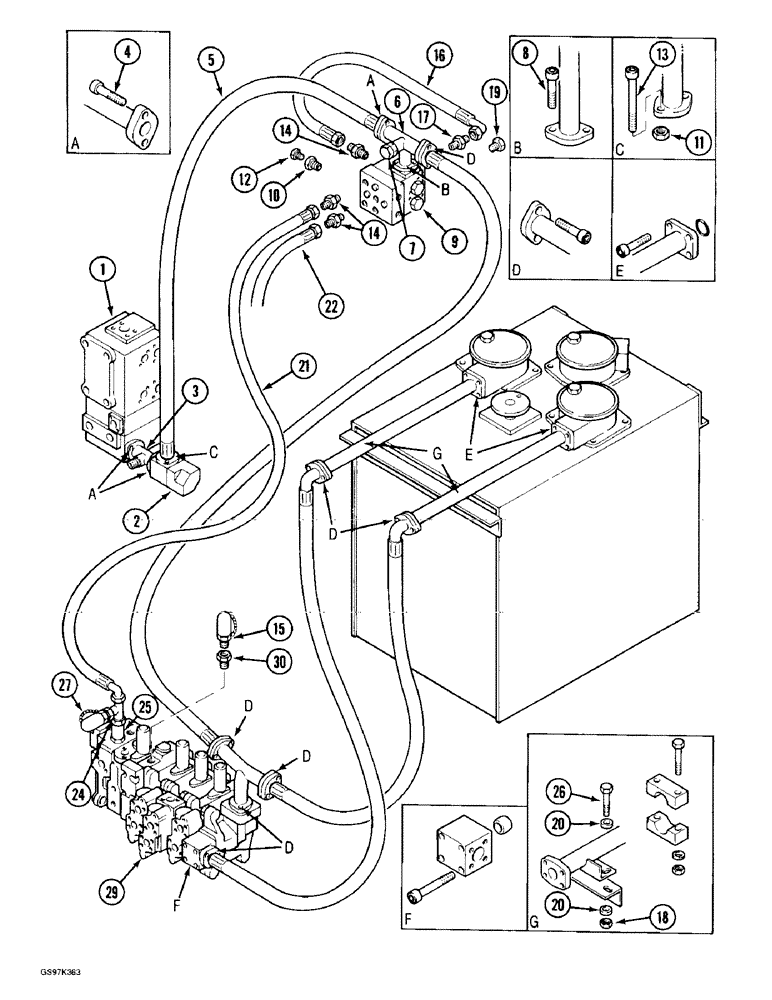

Запчасти Case 170C (8-026) - HYDRAULIC CIRCUIT RETURN LINES, TO FILTERS AT RESERVOIR, P.I.N. 74501 - 74662, P.I.N. 02301 - 02370 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, swing and drive, parts list Figures 8-112 through 8-118

1шт.

2

P3743382

BLOCK ASSY.

VALVE ASSEMBLY - pressure regulating, 18 bar, parts list Figure 8-152

1шт.

3

REF

INSTRUCTION

TUBE - return, at pressure regulating valve, see Figure 8-20 for continuation of circuit

1шт.

4

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

8шт.

5

P5931927

HOSE

- return, from regulating valve, 1000 mm (39-3/8 inch) long

1шт.

6

P3050110

MANIFOLD

TUBE - return, at power sensing valve

1шт.

7

P137413

PLUG

- return tube

1шт.

8

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

9

P3143338

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, parts list Figure 8-138

1шт.

10

P637358

RESTRICTOR

ADAPTER ASSEMBLY - plug to valve, Includes: O-ring P945293

1шт.

P945293

WASHER, SEALING

O-RING - adapter

1шт.

11

825-1112

NUT,M12, Cl 8

- hex, 12 mm - 1.75 (Replaces nut P34167)

2шт.

12

P1437455

PLUG

ASSEMBLY - power sensing valve, Includes: O-ring P7046042

1шт.

P7046042

SEAL

O-RING - plug

1шт.

13

P732993

SCREW

BOLT - hex socket, 12 mm x 120 mm, class 10.9

2шт.

14

P4037574

UNION

ADAPTER ASSEMBLY - short, hose to valve, Includes: O-ring P945293

3шт.

P945293

WASHER, SEALING

O-RING - adapter

1шт.

15

P4037516

MAKING-UP

VALVE ASSEMBLY - pressure check, Includes: Seal P7046042

1шт.

P7046042

SEAL

- pressure check valve

1шт.

16

P6631918

HOSE

- return, power sensing valve, 500 mm (19-11/16 inch) long

1шт.

17

P4037573

UNION

ADAPTER ASSEMBLY - short, hose to valve, Includes: O-ring P945295

1шт.

P945295

SEAL

O-RING - adapter

1шт.

18

P834549

SAFETY NUT

NUT - hex, self-locking, 12 mm

2шт.

19

P1437456

PLUG

ASSEMBLY - power sensing valve, Includes: O-ring P945295

1шт.

P945295

SEAL

O-RING - plug

1шт.

20

P3528793

WASHER

SPACER - bolt, 8 mm thick

4шт.

21

P6631918

HOSE

- main relief valve to power sensing valve, 500 mm (19-11/16 inch) long

1шт.

22

REF

INSTRUCTION

HOSE - pilot, to power sensing valve, see Figure 8-18 for continuation of circuit

1шт.

24

P1237223

TEE

- hose at main relief valve

1шт.

25

P4037578

FITTING

ADAPTER ASSEMBLY - tee to valve, Includes: O-ring P945293

1шт.

P945293

WASHER, SEALING

O-RING - adapter

1шт.

26

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex, 12 mm - 1.75 x 45 mm, plated, Used with tube brackets welded to tubes, Late production, if used

2шт.

27

P4037516

MAKING-UP

VALVE ASSEMBLY - pressure check, Includes: Seal P7046042

1шт.

P7046042

SEAL

- pressure check valve

1шт.

29

REF

INSTRUCTION

VALVE ASSEMBLY - control, attachment, parts list Figures 8-100 through 8-110

1шт.

30

P637358

RESTRICTOR

ADAPTER ASSEMBLY - test port to heavy lift valve section

1шт.

P945293

WASHER, SEALING

O-RING - adapter Continued on next figure

1шт.
