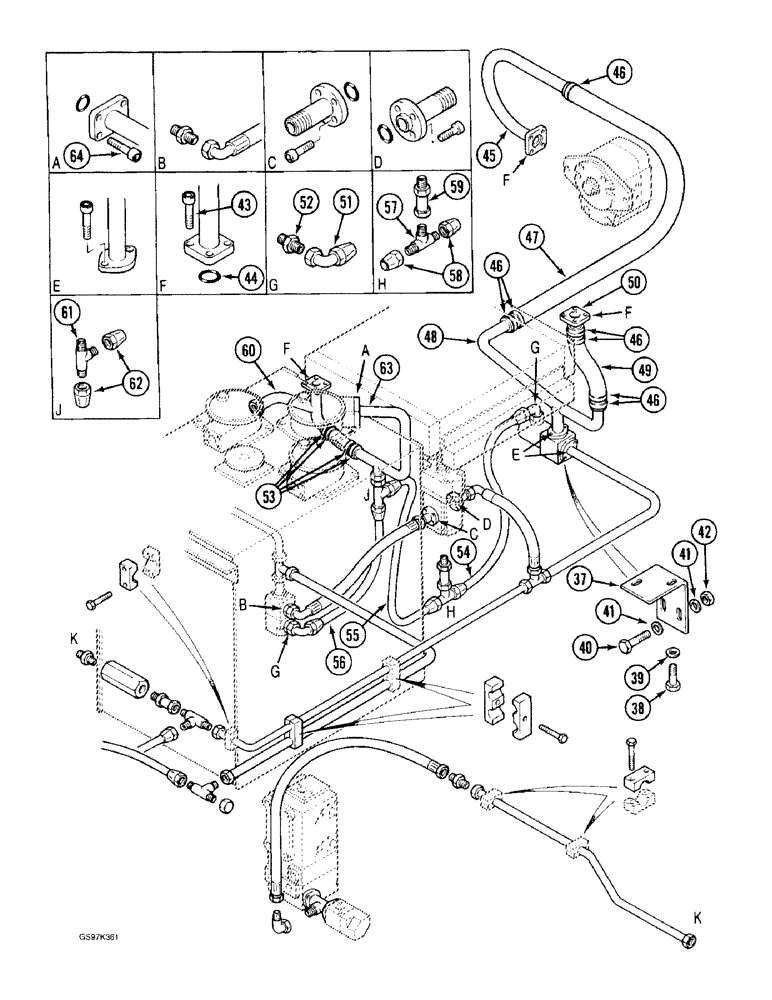

Запчасти Case 170C (8-022) - HYDRAULIC CIRCUIT RETURN LINES, TO OIL COOLER AND FAN MOTOR (08) - HYDRAULICS

37

P4825642

ANGLE BAR

BRACKET - valve mounting

1шт.

38

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm (Replaces bolt P933818)

2шт.

39

P4328730

WASHER

SPACER - bolt, 20 mm thick

2шт.

40

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm (Replaces bolt P1133839)

2шт.

41

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

42

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

2шт.

43

P732909

SCREW

BOLT - hex socket, 8 mm x 25 mm, class 10.9

12шт.

44

P30461

O-RING

- tube flange

3шт.

45

P6947183

PIPE

TUBE - cooler hydraulic pump to oil cooler

1шт.

46

P36902

COLLAR CLAMP

CLAMP - hose

8шт.

47

REF

INSTRUCTION

HOSE - pump to manifold, 700 mm (27-1/2 inch) long, cut from bulk hose P1103610 below

1шт.

48

P3750172

MANIFOLD

TUBE - manifold, at regulator valve, see Figure 8-24 for manifold tubes used with optional temperature regulating valve circuit

1шт.

49

REF

INSTRUCTION

HOSE - manifold to hydraulic oil cooler, 400 mm (15-3/4 inch) long, cut from bulk hose P1103610 below

1шт.

50

P3750114

PIPE

TUBE - oil cooler hose

1шт.

51

P4037590

END FITTING

ADAPTER - hose, 90 degree

2шт.

52

P4037573

UNION

ADAPTER - straight, at valve ports

2шт.

P945294

SEAL

O-RING - adapter

1шт.

53

P36902

COLLAR CLAMP

CLAMP - hose

4шт.

54

REF

INSTRUCTION

HOSE - tee to pressure regulator valve, 500 mm (19-11/16 inch) long, cut from bulk hose P1103640 below

1шт.

55

REF

INSTRUCTION

HOSE - cooler fan motor to manifold, 700 mm (27-1/2 inch) long, cut from bulk hose P1103640 below

1шт.

56

REF

INSTRUCTION

HOSE - tee to pressure regulating valve, 800 mm (31-1/2 inch) long, cut from bulk hose P1103640 below

1шт.

57

P937275

TEE

- hose, at cooler fan motor

1шт.

58

P4037588

END FITTING

ADAPTER - hose, straight

2шт.

59

P4037576

FITTING

TUBE - adapter, at cooler fan motor

1шт.

P7046042

SEAL

O-RING - adapter tube

1шт.

60

P3750115

MANIFOLD

TUBE - leak return, to reservoir, see page 8-37 for continuation of circuit

1шт.

61

P937275

TEE

- hose, at manifold tube

1шт.

62

P4037588

END FITTING

ADAPTER - straight

2шт.

63

P3550198

MANIFOLD

TUBE - manifold, Serial Range: return-filter

1шт.

64

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

4шт.

P1103610

PIPE

HOSE - bulk, sold by the meter

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
