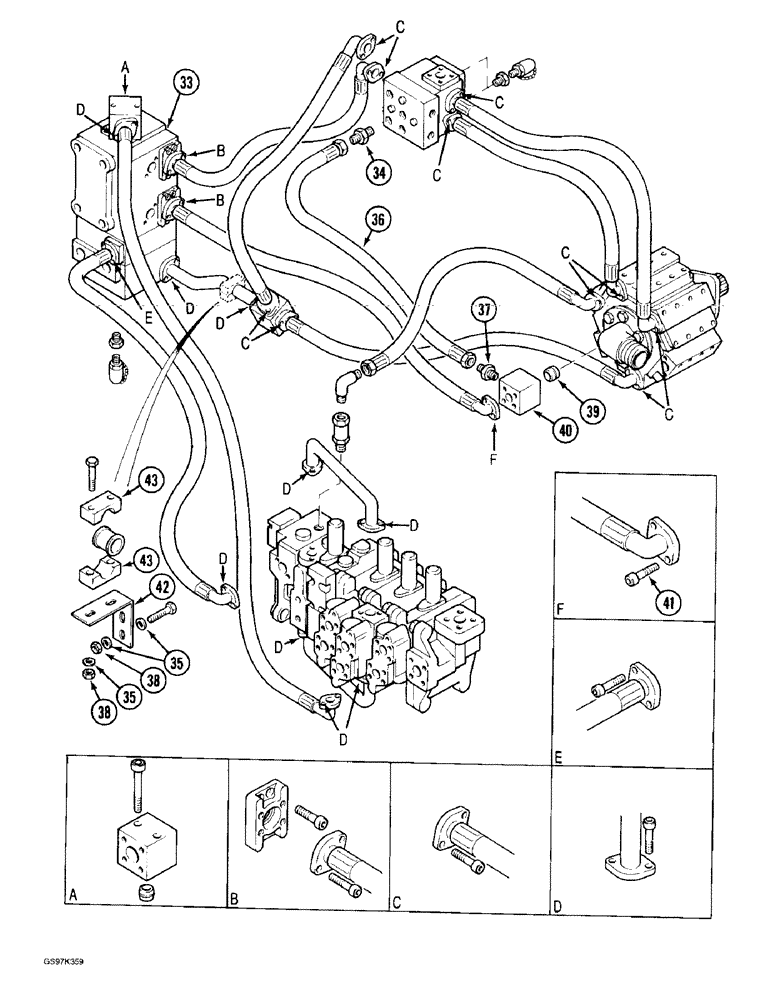

Запчасти Case 170C (8-018) - HYDRAULIC PUMP LINES, HYDRAULIC PUMP TO MAIN CONTROL VALVES (08) - HYDRAULICS

33

REF

INSTRUCTION

VALVE ASSEMBLY - swing and drive control, parts list Figures 8-112 through 8-119A

1шт.

34

P4037574

UNION

ADAPTER ASSEMBLY - straight, Includes: O-ring P945293

1шт.

P945293

WASHER, SEALING

O-RING - adapter

1шт.

35

P3528793

WASHER

SPACER - bolt, 8 mm thick

6шт.

36

P6631919

HOSE

- pilot, to power sensing valve, 630 mm (24-13/16 inch) long

1шт.

37

P4037571

UNION

ADAPTER ASSEMBLY - straight, Includes: O-ring P7046042

1шт.

P7046042

SEAL

O-RING - adapter

1шт.

38

P834549

SAFETY NUT

NUT - hex, self-locking, 12 mm

4шт.

39

P1528827

JUNCTION

ADAPTER -, Serial Range: block-pump

1шт.

40

P3037751

JUNCTION

BLOCK -, Serial Range: adapter-pump

1шт.

41

931527R1

HEX SOC SCREW,M8 x 65mm, Cl 10.9

2шт.

42

P4825620

ANGLE BAR

BRACKET - mounting, tube clamp

1шт.

43

P820377

SHIN

CLAMP -, Serial Range: tube-bracket

2шт.
