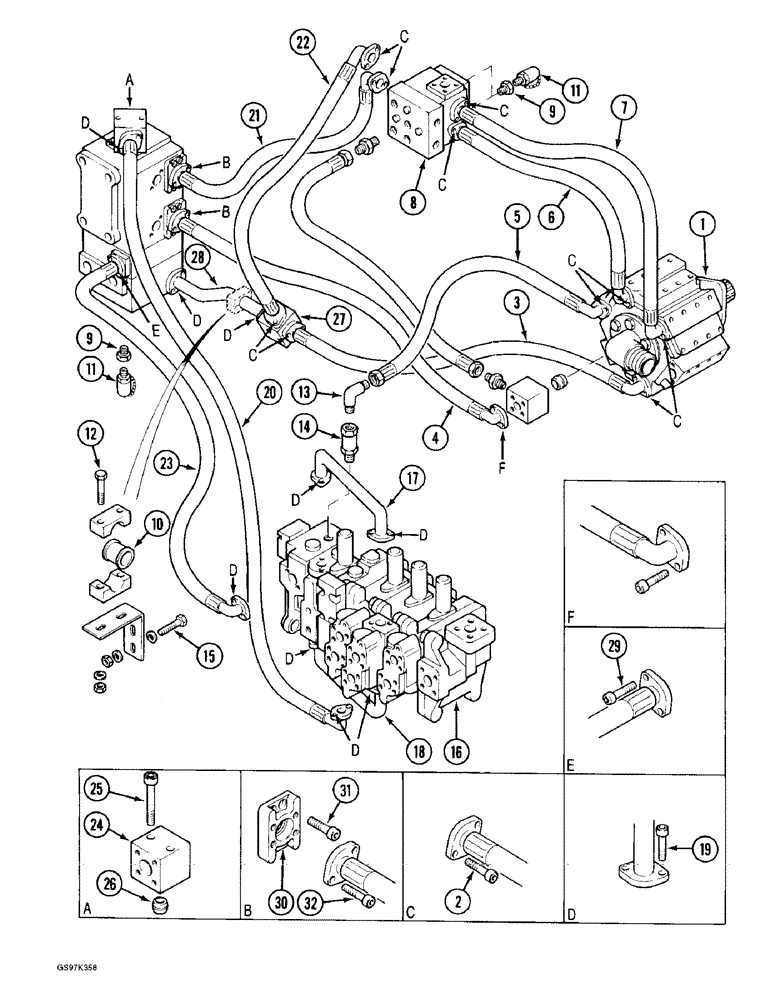

Запчасти Case 170C (8-016) - HYDRAULIC PUMP LINES, HYDRAULIC PUMP TO MAIN CONTROL VALVES (08) - HYDRAULICS

1

P4543551

PUMP

ASSEMBLY - main hydraulic, parts list Figure 8-94

1шт.

2

P0732978Q

SCREW

Hex Soc Hd, M8 x 30, 10.9

22шт.

3

P5931926

HOSE

- pump to junction block, 630 mm (24-13/16 inch) long

1шт.

4

P5431916

HOSE

- pump to drive control valve, 1000 mm (39-3/8 inch) long

1шт.

5

P5931925

HOSE,15.50 mm ID x 630.00 mm

- pump to attachment control valve 15.50 mm ID x 630.00 mm

1шт.

6

P4931979

HOSE

- pump to power steering valve, 500 mm (19-11/16 inch) long

1шт.

7

P5931926

HOSE

- pump to power sensing valve, 630 mm (24-13/16 inch) long

1шт.

8

P3143338

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, parts list Figure 8-138

1шт.

9

P637358

RESTRICTOR

ADAPTER ASSEMBLY - test disconnect, Includes: O-ring P945293

3шт.

P945293

WASHER, SEALING

O-RING - adapter

1шт.

10

P741440

BUSHING

INSULATOR - tube clamp

1шт.

11

P4037516

MAKING-UP

VALVE ASSEMBLY - pressure check, Includes: Seal P7046042

3шт.

P7046042

SEAL

- pressure check valve

1шт.

12

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

(Replaces bolt P533843) Hex, M12 x 80, 8.8

2шт.

13

P37078

ELBOW-CONNECTION

ADAPTER - hose, 90 degree

1шт.

14

P2337594

FITTING

ADAPTER - straight

1шт.

P5746063

SEAL

O-RING - adapter

1шт.

15

P28374

SCREW

BOLT - hex, 12 mm x 50 mm

2шт.

16

REF

INSTRUCTION

VALVE ASSEMBLY - control, attachment, parts list Figures 8-100 through 8-110

1шт.

17

P7347640

PIPE

TUBE - heavy lift circuit, upper

1шт.

18

P7347641

PIPE

TUBE - heavy lift circuit, lower

1шт.

19

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

18шт.

20

P3231911

HOSE

- attachment control valve to junction block, 1250 mm (49-1/4 inch) long

1шт.

21

P4931979

HOSE

- power sensing valve to drive control valve, 500 mm (19-11/16 inch) long

1шт.

22

P5931926

HOSE

- power sensing valve to junction block, 630 mm (24-13/16 inch) long

1шт.

23

P3231910

HOSE

- to center block of swing and drive control valve, 1000 mm (39-3/8 inch) long

1шт.

24

P1737032

ANGLE

BLOCK - hose to drive control valve

1шт.

25

P532949

SCREW

BOLT - hex socket, 14 mm x 80 mm, class 10.9

2шт.

26

P1528830

JUNCTION

ADAPTER - block to drive control valve

1шт.

27

P537235

TEE

BLOCK - junction, to swing control valve, no longer available

1шт.

28

P7747644

PIPE

TUBE - junction block to swing control valve

1шт.

29

L632924

SCREW

BOLT - hex socket, 10 mm x 55 mm, class 10.9

2шт.

30

P637327

RESTRICTOR

PLATE - adapter, hose to drive control valve

2шт.

31

P532988

SCREW

BOLT - hex socket, 10 mm x 25 mm, class 10.9

4шт.

32

P0732978Q

SCREW

Hex Soc Hd, M8 x 30, 10.9, Continued on next figure

2шт.
