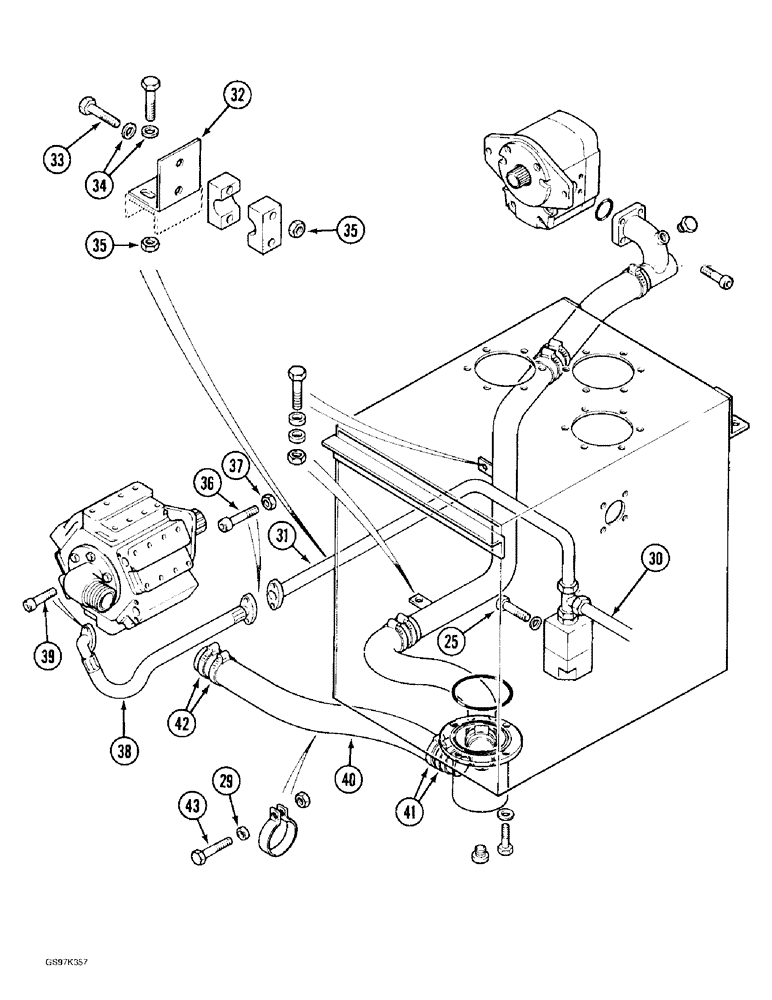

Запчасти Case 170C (8-014) - HYDRAULIC PUMP LINES, RESERVOIR TO HYDRAULIC PUMP, P.I.N. 02371 AND AFTER (08) - HYDRAULICS

29

P3528795

WASHER

SPACER - bolt, 7 mm thick

1шт.

30

REF

INSTRUCTION

TUBE - pilot circuit, see Figure 8-20 for continuation of circuit

1шт.

31

P7747697

PIPE

TUBE - pump to pressure regulating valve

1шт.

32

P5125689

LARGE PLATE

BRACKET - tube clamp

1шт.

33

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm, clamp to bracket (Replaces bolt P933835)

2шт.

34

P3528795

WASHER

SPACER - bolt, 7 mm thick

2-4шт.

35

814-10410

NUT - hex, self-locking, 10 mm - 1.5 (Replaces nut P34598)

2-4шт.

36

P1232958

SCREW

BOLT - hex socket, 8 mm x 45 mm, class 10.9

2шт.

37

P34185H

NUT,M8, Cl 10

- hex, 8 mm

2шт.

38

P1331907

HOSE

- at main hydraulic pump, 500 mm (19-11/16 inch) long

1шт.

39

Q732978

SCREW,Hex Skt Hd, M8 x 30mm, Cl 10.9

2шт.

40

P7331958

LARGE HOSE

HOSE - suction, reservoir to main hydraulic pump

1шт.

41

P136901

CLAMP

- hose, at reservoir

2шт.

42

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - hose, at pump, adjustable, 3-1/16 - 4 inch diameter (Replaces clamp P1236903)

2шт.

43

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm (Replaces bolt P1133839)

1шт.
