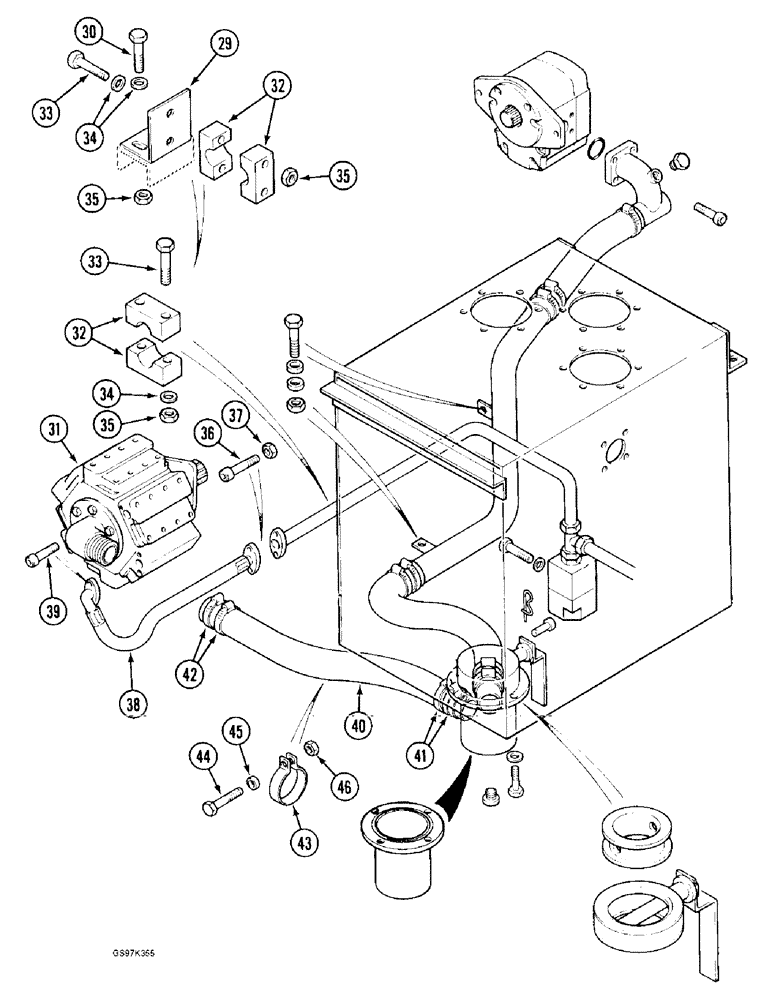

Запчасти Case 170C (8-010) - HYDRAULIC PUMP LINES, RESERVOIR TO HYDRAULIC PUMP, P.I.N. 74501 THRU 74662, P.I.N. 02301 THRU 02370 (08) - HYDRAULICS

29

P5125689

LARGE PLATE

BRACKET - tube clamp, if used

1шт.

30

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, plated, if used

2шт.

31

P4543551

PUMP

ASSEMBLY - main hydraulic, parts list Figure 8-94

1шт.

32

P723438

SHIN

CLAMP - regulating valve tube, if used

2шт.

33

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm, clamp to bracket (Replaces bolt P933835)

2шт.

34

P3528795

WASHER

SPACER - bolt, 7 mm thick

2-4шт.

35

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

2-4шт.

36

P1232958

SCREW

BOLT - hex socket, 8 mm x 45 mm, class 10.9

2шт.

37

P34185H

NUT,M8, Cl 10

- hex, 8 mm

2шт.

38

P1331907

HOSE

- at main hydraulic pump, 500 mm (19-11/16 inch) long

1шт.

39

P0732978Q

SCREW

2шт.

40

P7331958

LARGE HOSE

HOSE - suction, reservoir to main hydraulic pump (Replaces hose P6531947)

1шт.

41

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - hose, at reservoir, adjustable, 3-1/16 - 4 inch diameter (Replaces clamp P1236903)

2шт.

42

P36946

COLLAR CLAMP

CLAMP - hose, at pump

2шт.

43

P3836911

CLAMP

- suction hose (Replaces clamp P3036931)

1шт.

44

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm (Replaces bolt P1133839)

1шт.

45

P3528795

WASHER

SPACER - bolt, 7 mm thick

1шт.

46

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

1шт.
