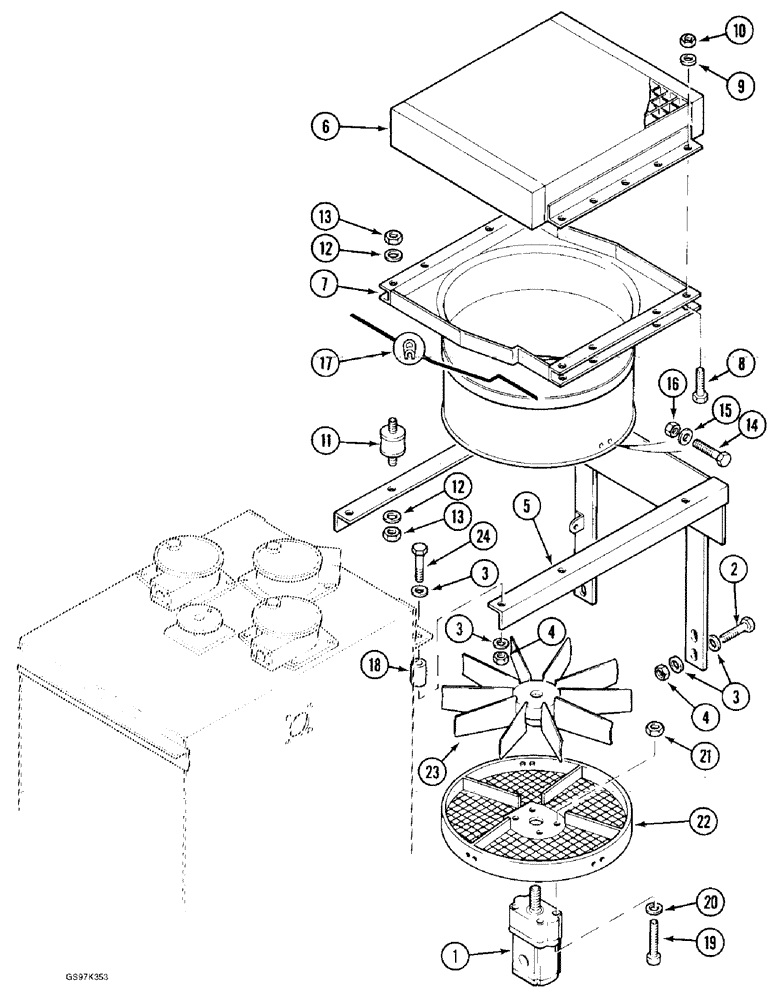

Запчасти Case 170C (8-006) - HYDRAULIC OIL COOLER AND FAN, P.I.N. 02305 AND AFTER (08) - HYDRAULICS

1

P2343732

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - cooler fan, parts list Figure 8-162

1шт.

2

P28374

SCREW

BOLT - hex, 12 mm x 50 mm

4шт.

3

P3528793

WASHER

SPACER - frame mounting bolt

12шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, (Replaces nut P34596) M12 x 1.75, Cl 8

6шт.

5

P2254808

SUPPORT

FRAME - mounting, oil cooler

1шт.

6

P5137742

RADIATOR

COOLER - hydraulic oil

1шт.

7

P5140360

ORIFICE RING

SHROUD - cooler fan

1шт.

8

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

9

P3528796

WASHER

SPACER - bolt, 7 mm thick

8шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

8шт.

11

P41474

STOP

MOUNT - flexible, cooler and, Serial Range: shroud-frame

4шт.

12

P34611

WASHER

- flat, 10 mm

8шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

8шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

6шт.

15

P3528794

WASHER

SPACER - 6 mm thick, bolt

6шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, (Replaces nut P134596) M8 x 1.25, Cl 8

6шт.

17

REF

INSTRUCTION

GUARD - shroud edge, 600 mm (23-5/8 inch) long, cut from bulk stock P303111 below

2шт.

18

P1929257

SPACER

- frame to hydraulic reservoir, Start Serial: 02328

2шт.

19

P732980

SCREW

BOLT - hex socket, 8 mm x 40 mm, class 10.9

4шт.

20

P34611

WASHER

SPACER - bolt, 6 mm thick

4шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, (Replaces nut P134596) M8 x 1.25, Cl 8

4шт.

22

P3240401

SIEVE

SCREEN - protective, fan

1шт.

23

P2843209

FAN

- cooler

1шт.

24

P28374

SCREW

BOLT - hex, 12 mm x 50 mm, Serial Range: 02305-02327

2шт.

24

813-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

- hex, 12 - 1.75 x 120 mm, (Replaces bolt P933812), Start Serial: 02328

2шт.

P303111

SEAL

TRIM bulk, sold by the meter, used for Ref. 17

1шт.
