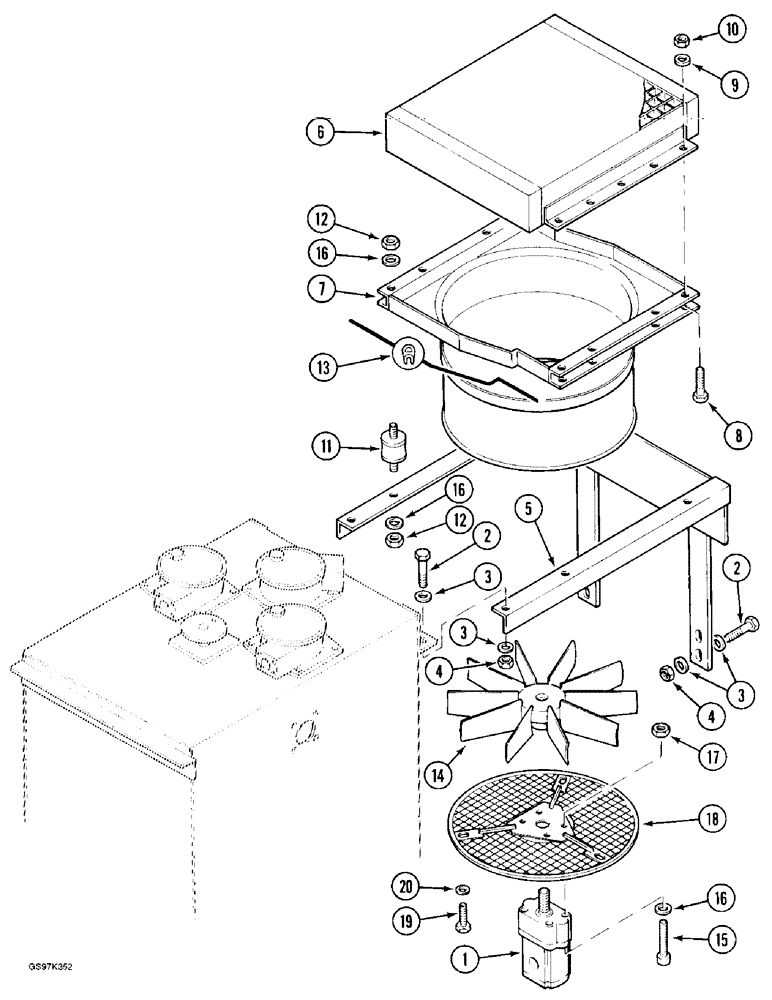

Запчасти Case 170C (8-004) - HYDRAULIC OIL COOLER AND FAN, P.I.N. 74501 THROUGH 74662, P.I.N. 02301 THROUGH 02304 (08) - HYDRAULICS

1

REF

INSTRUCTION

MOTOR ASSEMBLY - cooler fan, parts list Figures 8-160 and 8-162

1шт.

2

P28374

SCREW

BOLT - hex, 12 mm x 50 mm

6шт.

3

P3528793

WASHER

SPACER - frame mounting bolt

12шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, (Replaces nut P34596) M12 x 1.75, Cl 8

6шт.

5

P2254808

SUPPORT

FRAME - mounting, oil cooler

1шт.

6

P5137742

RADIATOR

COOLER - hydraulic oil

1шт.

7

P5140301

ORIFICE RING

SHROUD - cooler fan

1шт.

8

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

9

P3528796

WASHER

SPACER - 7 mm thick, bolt

8шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

8шт.

11

P41474

STOP

MOUNT - flexible, cooler and, Serial Range: shroud-frame

4шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

8шт.

13

REF

INSTRUCTION

GUARD - shroud edge, 600 mm (26-5/8 inch) long, cut from bulk stock P303111 below

2шт.

14

P2843209

FAN

- cooler

1шт.

15

P732980

SCREW

BOLT - hex socket, 8 mm x 40 mm, class 10.9

4шт.

16

P34611

WASHER

- flat, 10 mm

12шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, (Replaces nut P134596) M8 x 1.25, Cl 8

4шт.

18

P4728212

SIEVE

SCREEN - protective, fan, no longer available, order screen P3240401, item 22 on Figure 8-6

1шт.

19

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm (Replaces bolt P933818)

3шт.

20

P4528713

WASHER

SPACER - bolt, 20 mm thick

3шт.

P303111

SEAL

TRIM, bulk, sold by the meter, used for ref. 13

1шт.
