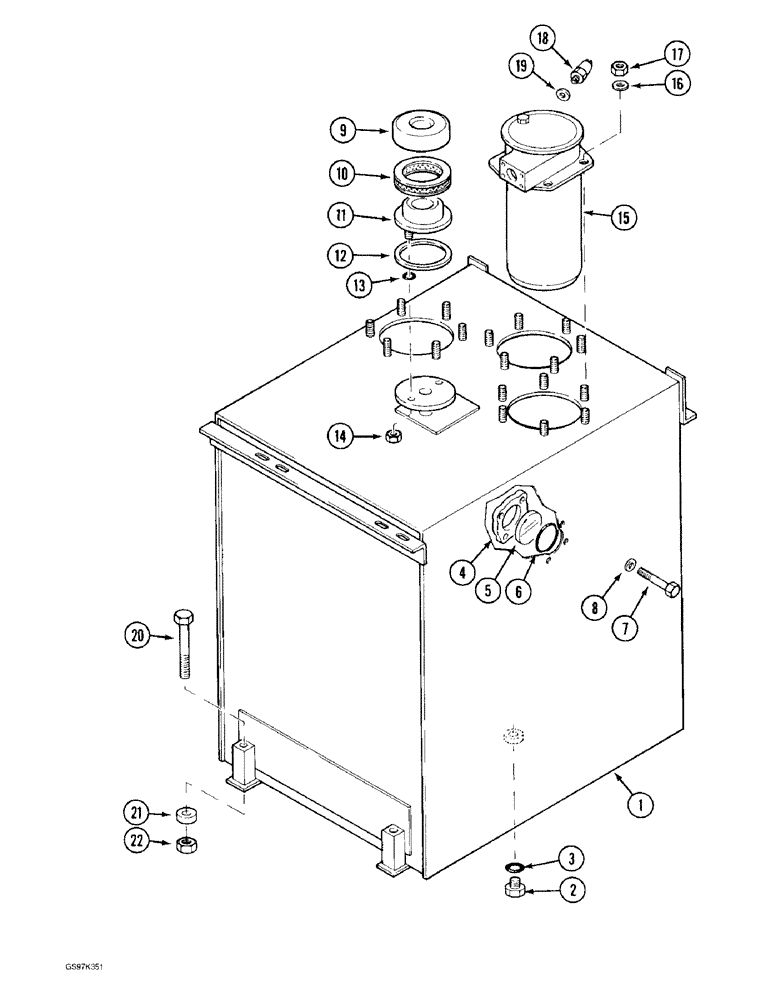

Запчасти Case 170C (8-002) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

P1540224

OIL RESERVOIR

RESERVOIR - hydraulic oil

1шт.

2

P1737444

PLUG

- reservoir drain

1шт.

3

238-6123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

Drain plug (Replaces O-ring R30990) -123, 90 Duro, 1.174" ID x .103" Thk

1шт.

4

P130109

BODY

GAUGE - sight, oil level

1шт.

5

P45055

SIGHTGLASS

GLASS - sight gauge

1шт.

6

P30337

O-RING

- sight gauge

1шт.

7

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Gauge to tank (Replaces bolt P33826) Hex, M10 x 20, 8.8, Full Thd

4шт.

8

P28424

COMPOSITE SEAL

WASHER - flat, gauge bolt

4шт.

P1337410

PLUG

BREATHER ASSEMBLY - hydraulic tank, Includes: Ref. 9-12

1шт.

9

NSS

NOT SOLD SEPARAT

COVER - breather, order breather assembly P1337410

1шт.

10

P850566

CARTRIDGE

FILTER - tank breather

1шт.

11

NSS

NOT SOLD SEPARAT

BASE - breather, order breather assembly P1337410

1шт.

12

P945279

SEAL

-, Serial Range: breather-tank

1шт.

13

P230441

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- breather mounting stud

2шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, (Replaces nut P134596) M8 x 1.25, Cl 8

2шт.

15

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic return oil, see Figure 8-166 for filter identification and parts list

3шт.

16

P35002

WASHER

- lock, filter to tank studs

18шт.

17

P34113

NUT

- hex, filter to tank studs

18шт.

18

P841828

ELECTRO/HYD CONTACT

SENDER - filter condition

3шт.

19

P28424

COMPOSITE SEAL

SEAL - sending unit

3шт.

20

814-14130

BOLT,Hex, M14 x 2 x 130mm, Cl 8.8

tank mounting (Replaces bolt P433837) Hex, M14 x 130, 8.8

4шт.

21

P3528792

WASHER

SPACER - tank mounting bolt

4шт.

22

P134549

SAFETY NUT

NUT - hex, tank mounting bolt

4шт.
