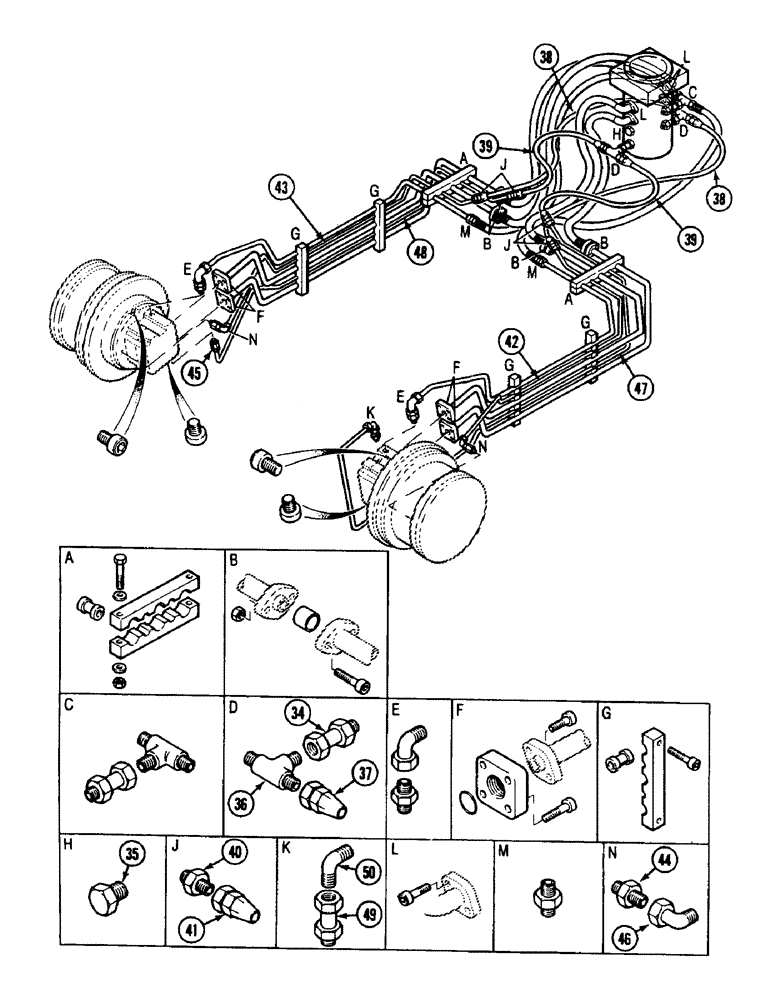

Запчасти Case 170C (7-04) - TRACK DRIVE, DRIVE RANGE AND BRAKE HYDRAULIC LINES (07) - BRAKES

34

P3037508

FITTING

TUBE ASSEMBLY - adapter, tee to swivel, Includes: O-ring P5746063

2шт.

P5746063

SEAL

O-RING - adapter tube

1шт.

35

P1437458

PLUG

ASSEMBLY - hydraulic, swivel port, Includes: O-ring P5746063

1шт.

P5746063

SEAL

O-RING - plug

1шт.

36

P1237226

TEE

- control circuit, Serial Range: hoses-swivel

2шт.

37

P4037588

END FITTING

ADAPTER - straight, control circuit hose

4шт.

38

REF

INSTRUCTION

HOSE - control circuit, motor brake release, 1000 mm (39-3/8 inch) long, cut from bulk hose P1103640 below

2шт.

39

REF

INSTRUCTION

HOSE - control circuit, motor drive range, 800 mm (31-1/2 inch) long, cut from bulk hose P1103640 below

2шт.

40

P3237535

UNION

ADAPTER - control circuit, Serial Range: hose-tube

4шт.

41

P4037588

END FITTING

ADAPTER - straight, control circuit hose

4шт.

42

P6749177

PIPE

TUBE - brake release, right-hand drive motor

1шт.

43

P6749179

PIPE,1471, 522 mm L

TUBE - brake release, left-hand drive motor

1шт.

44

P4037592

UNION

ADAPTER ASSEMBLY - brake release tube to drive motor

2шт.

P7046042

SEAL

- tube adapter

1шт.

45

P4037584

UNION

ADAPTER ASSEMBLY - straight, left-hand motor drive range tube, Includes: O-ring P7046042

1шт.

P7046042

SEAL

O-RING - adapter tube

1шт.

46

P1737019

ANGLE

ELBOW - 90 degree, brake release tube

2шт.

47

P6749180

PIPE

TUBE - drive range, right-hand motor

1шт.

48

P6749178

PIPE

TUBE - drive range, left-hand motor

1шт.

49

P4037591

FITTING

TUBE ASSEMBLY - adapter, right-hand motor drive range, Includes: O-ring P7046042

1шт.

P7046042

SEAL

O-RING - adapter tube

1шт.

50

P1737051

ANGLE

ELBOW - 90 degree, right-hand motor drive range tube

1шт.

P1103640

PIPE

HOSE - bulk, sold by the meter

1шт.
