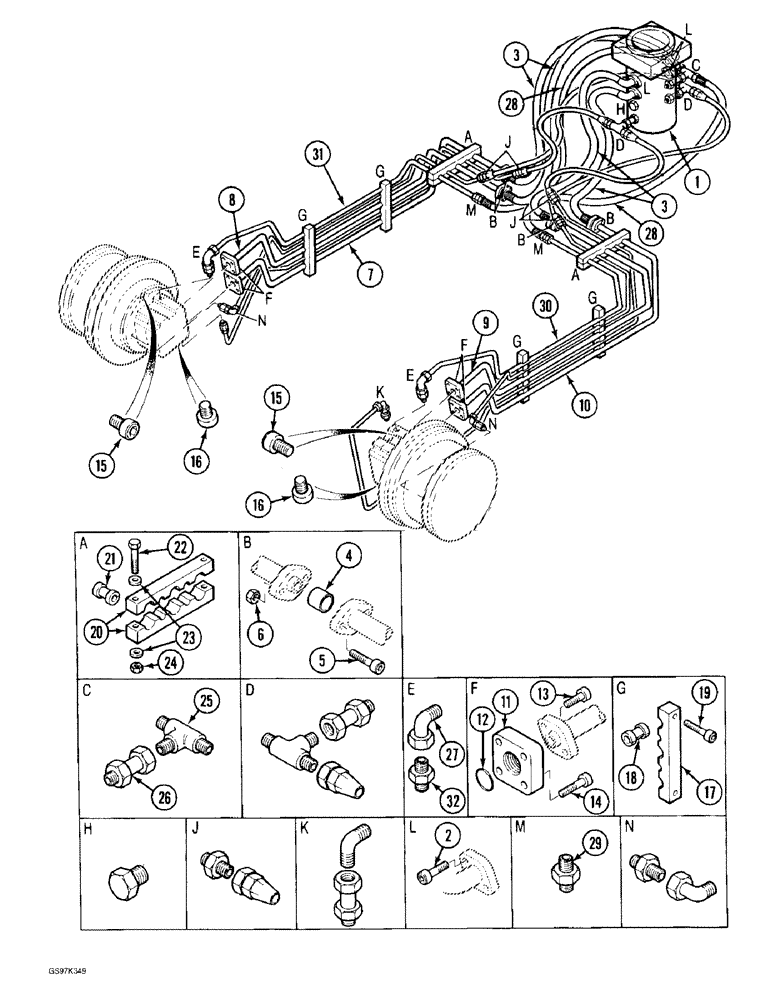

Запчасти Case 170C (7-02) - TRACK DRIVE, DRIVE RANGE AND BRAKE HYDRAULIC LINES (07) - BRAKES

1

P1737754

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-164

1шт.

2

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

3

P3231911

HOSE

- swivel to track drive motor, 1250 mm (49-1/4 inch) long

4шт.

4

P1737758

JUNCTION

ADAPTER - hose to tube flange

4шт.

5

P1432903

SCREW

BOLT - hex socket, 10 mm x 85 mm, class 10.9

8шт.

6

825-1410

NUT,M10, Cl 8

- hex, 10 mm - 1.5, class 10, plated

8шт.

7

P6749171

PIPE

TUBE - swivel to left-hand drive motor, forward drive

1шт.

8

P6749173

PIPE

TUBE - swivel to left-hand drive motor, reverse drive

1шт.

9

P6749176

PIPE

TUBE - swivel to right-hand drive motor, reverse drive

1шт.

10

P6749172

PIPE

TUBE - swivel to right-hand drive motor, forward drive

1шт.

11

P3837732

SHIN

PLATE - adapter, tube to drive motor

4шт.

12

238-6123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

Adapter plate (Replaces O-ring R30990) -123, 90 Duro, 1.174" ID x .103" Thk

4шт.

13

P1232971

SCREW

BOLT - hex socket, 10 mm x 35 mm, class 10.9

16шт.

14

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

15

P2537447

PLUG

ASSEMBLY - transmission housing

2шт.

16

P2537413

PLUG

ASSEMBLY - drive motor, no longer available, order plug P3337446, item 16A, Includes: O-ring P1145268

2шт.

P1145268

SEAL

O-RING - plug

1шт.

16a

P3337446

PLUG

- drive motor, not shown

2шт.

17

P4020367

SHIN

CLAMP - drive motor tubes to track frame side

4шт.

18

P3141453

BUSHING

INSULATOR - tube

4шт.

19

P32943

SCREW

BOLT - tube clamp

8шт.

20

P4020368

SHIN

CLAMP - drive motor tubes, upper

4шт.

21

P3141453

BUSHING

INSULATOR - tube

6шт.

22

P133084

SCREW

BOLT - hex, 12 mm x 110 mm

4шт.

23

P3528793

WASHER

SPACER - bolt, 8 mm thick

8шт.

24

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, (Replaces nut P34596) M12 x 1.75, Cl 8

4шт.

25

P37237

TEE

- motor housing drain, at swivel

1шт.

26

P2337594

FITTING

TUBE ASSEMBLY - adapter, motor housing drain tee, Includes: O-ring P5746063

1шт.

P5746063

SEAL

O-RING - adapter tube

1шт.

27

P1737030

ANGLE

ELBOW - 90 degree, motor housing drain tube

2шт.

28

P4431946

HOSE

- motor housing drain, 1250 mm (49-1/4 inch) long

2шт.

29

P37550

UNION

ADAPTER - motor drain, Serial Range: hose-tube

2шт.

30

P6749174

PIPE

TUBE - right-hand motor housing drain

1шт.

31

P6749175

PIPE

TUBE - left-hand motor housing drain

1шт.

32

P3237575

UNION

ADAPTER ASSEMBLY - elbow to drive motor, Includes: O-ring P1145268

2шт.

P1145268

SEAL

O-RING - adapter Continued on next figure

1шт.
