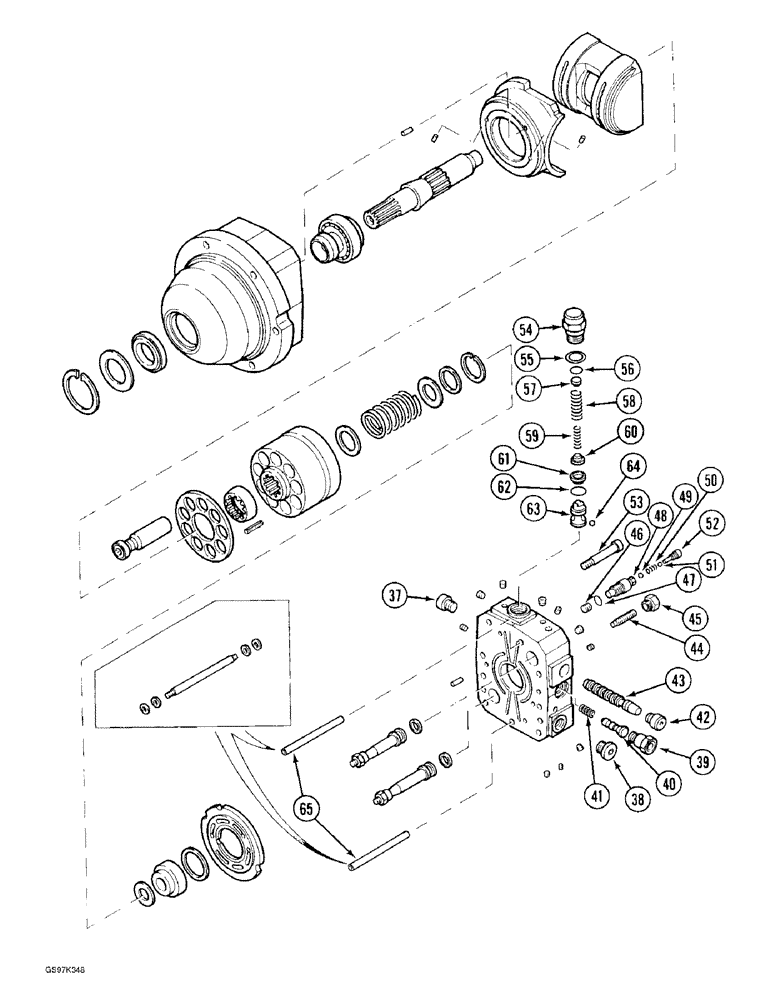

Запчасти Case 170C (6-12) - TRACK DRIVE HYDRAULIC MOTOR (06) - POWER TRAIN

REF

INSTRUCTION

MOTOR ASSEMBLY - hydraulic, track drive, continued, Includes: Ref. 37-68

2шт.

37

P3037401

PLUG

- spool end

1шт.

38

P3037402

PLUG

- valve housing

1шт.

39

P4037517

FITTING

ADAPTER - at valve housing

1шт.

40

NSS

NOT SOLD SEPARAT

PISTON - valve housing, order motor assembly P2343771

1шт.

41

P1538151

COMPRESSION SPRING

SPRING - piston

1шт.

42

P3037401

PLUG

- spool end

1шт.

43

NSS

NOT SOLD SEPARAT

SPOOL - valve housing, order motor assembly P2343771

1шт.

44

P32895

SCREW

- adjusting

2шт.

45

P2434530

NUT

CAP - adjusting screw

2шт.

46

P32882

SCREW

RESTRICTOR - relief valve

1шт.

P3743306

VALVE POPPET

VALVE ASSEMBLY - relief, motor, Includes: Ref. 47-52

1шт.

47

P2230460

O-RING

- valve body

1шт.

48

P31037

BALL

BODY - relief valve

1шт.

49

NSS

NOT SOLD SEPARAT

BALL - relief valve, order valve assembly P3743306

1шт.

50

P1538154

COMPRESSION SPRING

SPRING - relief valve

1шт.

51

P3145314

WASHER

SHIM - adjusting screw, 1.0 mm (0.39 inch)

1шт.

51

P3145315

WASHER

SHIM - adjusting screw, 0.50 mm (0.020 inch)

1шт.

52

NSS

NOT SOLD SEPARAT

SCREW - adjusting, relief valve, order valve assembly P3743306

1шт.

53

P1532918

SCREW

BOLT - special, valve housing

9шт.

P7646227

CARTRIDGE

ASSEMBLY - valve housing, Includes: Ref. 54-64

1шт.

54

NSS

NOT SOLD SEPARAT

CAP - valve cartridge, order cartridge assembly P7646227

1шт.

55

P2230459

O-RING

- cartridge cap

1шт.

56

P3545001

BLOCK

SHIM - spring guide, 0.10 mm (0.04 inch)

1шт.

56

P3545002

BLOCK

SHIM - spring guide, 0.50 mm (0.020 inch)

1шт.

57

P6027845

GUIDE

- spring, upper

1шт.

58

P1538153

COMPRESSION SPRING

SPRING - cartridge, outer

1шт.

59

P1538152

COMPRESSION SPRING

SPRING - cartridge, inner

1шт.

60

P6027849

GUIDE

- spring, lower

1шт.

61

P2728954

BUSHING

SEAT - poppet

1шт.

62

P2230458

O-RING

- seat

1шт.

63

NSS

NOT SOLD SEPARAT

POPPET - valve cartridge, order cartridge assembly P7646227

1шт.

64

P31036

BALL

- poppet

1шт.

65

P2031849

TUBE

- transfer

2шт.

66

P1139872

BEARING

- motor, not shown

1шт.

67

P8846232

ENGINE VENT SLEEVE

SLEEVE - motor, not shown

1шт.

68

P8846233

DOOR

CARRIER - motor, not shown

1шт.
