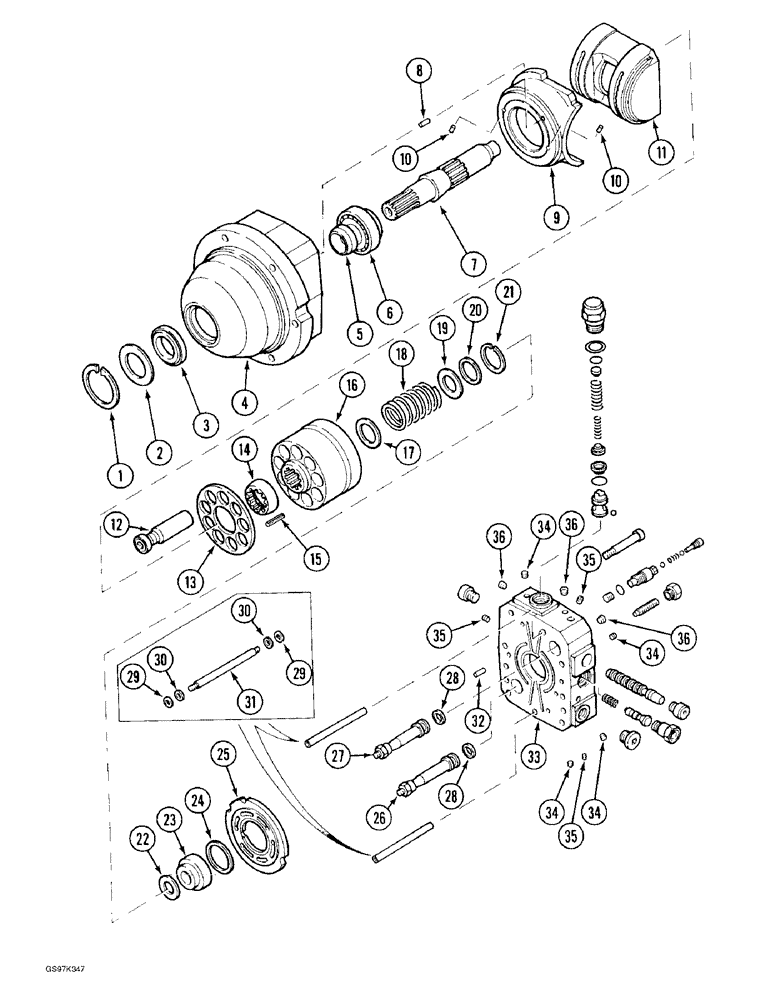

Запчасти Case 170C (6-10) - TRACK DRIVE HYDRAULIC MOTOR (06) - POWER TRAIN

P2343771

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, track drive, Includes: Ref. 1-36

2шт.

1

715648R1

SNAP RING,M65, Int

RING - snap, seal retainer (Replaces ring P36241)

1шт.

2

P1945381

WASHER

- seal retainer

1шт.

3

P8046067

GASKET

SEAL - oil, motor housing

1шт.

4

P5140309

HOUSING

- motor

1шт.

5

P1929038

BUSHING

SPACER - bearing

1шт.

6

P1139851

BEARING

- drive shaft

1шт.

7

P1928030

SHAFT

- drive, hydraulic motor

1шт.

8

P36097

SPLIT PIN/SAFETY PIN

PIN - dowel, swash plate support

1шт.

9

P5240333

SHELL

SUPPORT - swash plate

1шт.

10

P3237461

PLUG

PIN - guide, 5 mm, if used (Replaces pin P3037417)

1шт.

10

P3337443

PLUG

PIN - guide, 6 mm, if used

1шт.

11

P7946274

CRADLE

PLATE - swash, motor

1шт.

12

P6427845

PISTON

- motor

9шт.

P7946272

LARGE PLATE

RING AND SPACER ASSEMBLY - guide, Includes: Ref. 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

RING - guide, piston, order assembly P7946272

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER - guide ring, order assembly P7946272

1шт.

15

P2527220

NEEDLE

PIN - roll, guide ring

1шт.

16

P150204

LOCK, CYLINDER

CYLINDER - piston

1шт.

17

P2745408

WASHER

- spring, outer

1шт.

18

P1038277

SPRING

- cylinder

1шт.

19

P2745409

WASHER

- spring, inner

1шт.

20

P1945394

WASHER

SHIM - spring, 0.30 mm (0.012 inch)

1шт.

20

P1945393

WASHER

SHIM - spring, 0.50 mm (0.020 inch)

1шт.

20

P3145346

WASHER

SHIM - spring, 1.0 mm (0.039 inch)

1шт.

21

P536222

RING, SNAP

RING - snap, spring retainer

1шт.

22

P2745474

WASHER

SPACER - bearing

1шт.

23

P39842

BEARING

- drive shaft

1шт.

24

P1945395

WASHER

SHIM - bearing, 0.50 mm (0.020 inch)

1шт.

24

P1945398

WASHER

SHIM - bearing, 0.60 mm (0.024 inch)

1шт.

24

P1945396

WASHER

SHIM - bearing, 0.70 mm (0.028 inch)

1шт.

24

P1945397

WASHER

SHIM - bearing, 0.80 mm (0.031 inch)

1шт.

25

P150295

DISTRIBUTOR

PLATE - manifold

1шт.

26

P6027847

PISTON

STUD - swash plate angle, lower

1шт.

27

P6027848

PISTON

STUD - swash plate angle, upper

1шт.

28

P8846009

SEAL

- stud

2шт.

29

P2230487

O-RING

- transfer tube, if used

4шт.

30

P1245238

BACK-UP RING

RING - backup, transfer tube, if used

4шт.

31

P2031849

TUBE

- transfer, if used (Replaces tube P1231871)

2шт.

32

P1136002

SPLIT PIN/SAFETY PIN

PIN - dowel, valve housing (Replaces pin P36053)

1шт.

P7946273

LARGE PLATE

HOUSING ASSEMBLY - valve, distributor, Includes: Ref. 33-36

1шт.

33

NSS

NOT SOLD SEPARAT

HOUSING - valve, distributor, order housing assembly P7946273

1шт.

34

P3237462

PLUG

- valve housing

4шт.

35

P3237461

PLUG

- valve housing

3шт.

36

P3237463

PLUG

- valve housing Continued on next Figure

3шт.
