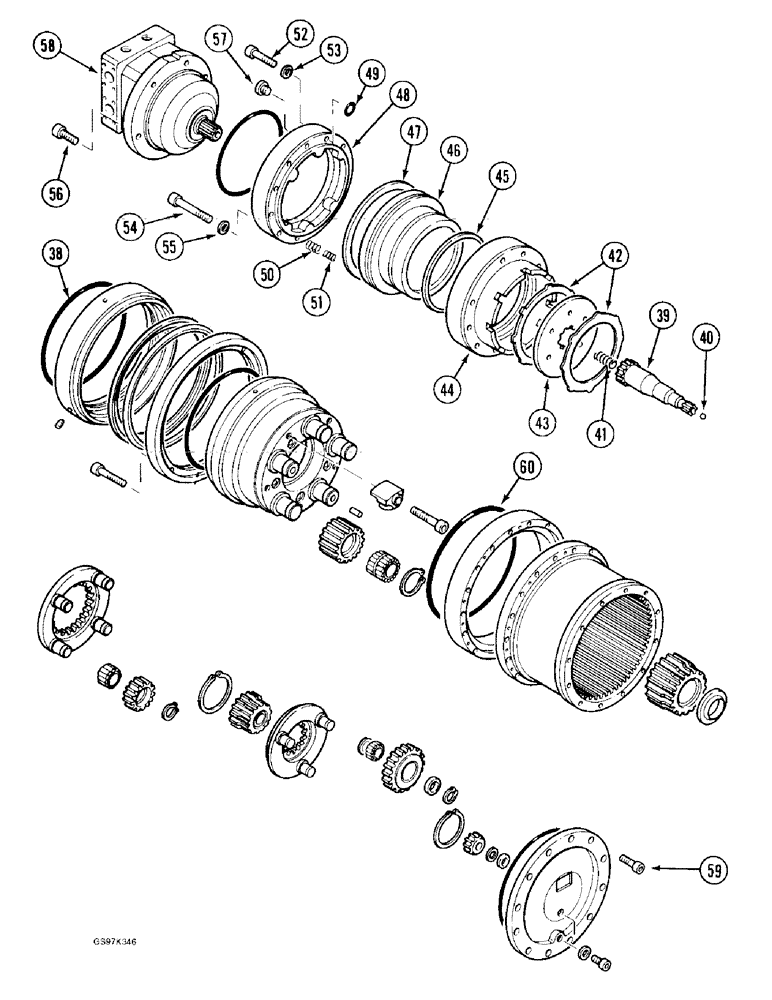

Запчасти Case 170C (6-08) - FINAL DRIVE TRANSMISSION, FINAL DRIVE SERIAL NUMBER 813-7-06-0012 AND AFTER (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - final drive, continued, Includes: Ref. 34-60

2шт.

34

P632935

SCREW

BOLT - hex socket, 12 mm x 70 mm, class 10.9, seal retainer

8шт.

35

P8046041

SEAL

- face, planetary

2шт.

36

P8646265

ENGINE VENT SLEEVE

RETAINER - seal, inner

1шт.

37

P32827

SCREW

- set, seal retainer

4шт.

38

NSS

NOT SOLD SEPARAT

O-RING - seal retainer, order kit P5449609

1шт.

Part of transmission seal kit P/N P5449609.

1шт.

P1928026

SHAFT

ASSEMBLY - input, transmission, Includes: Ref. 39, 40

1шт.

39

NSS

NOT SOLD SEPARAT

SHAFT - input, transmission, order shaft assembly P1928026

1шт.

40

NSS

NOT SOLD SEPARAT

BALL - input shaft, order shaft assembly P1928026

1шт.

41

P38293

SPRING

- input shaft

1шт.

P943151

BRAKE

ASSEMBLY - transmission, Includes: Ref. 42, 53

1шт.

42

P42881

DISC

- brake, friction

2шт.

43

NSS

NOT SOLD SEPARAT

DISC - brake, steel, order brake assembly P943151

1шт.

44

NSS

NOT SOLD SEPARAT

HOUSING - brake, order brake assembly P943151

1шт.

45

NSS

NOT SOLD SEPARAT

SEAL - brake piston, small

1шт.

Part of transmission brake seal kit P/N P5449610.

1шт.

46

NSS

NOT SOLD SEPARAT

PISTON - brake, order brake assembly P943151

1шт.

47

NSS

NOT SOLD SEPARAT

SEAL - brake piston, large

1шт.

Part of transmission brake seal kit P/N P5449610.

1шт.

48

NSS

NOT SOLD SEPARAT

RETAINER - piston, order brake assembly P943151

1шт.

49

NSS

NOT SOLD SEPARAT

O-RING - retainer bolt

4шт.

Part of transmission brake seal kit P/N P5449610.

1шт.

P5449688

KIT

- spring, brake piston, Includes: Ref. 50, 51

1шт.

50

NSS

NOT SOLD SEPARAT

SPRING - brake piston, outer, order kit P5449688

22шт.

51

NSS

NOT SOLD SEPARAT

SPRING - brake piston, inner, order kit P5449688

14шт.

52

P1232958

SCREW

BOLT - hex socket, 8 mm x 45 mm, class 10.9, piston retainer, short

4шт.

53

P1245228

SEAL

WASHER - flat, 8 mm, piston retainer bolt

4шт.

54

P32906

SCREW

BOLT - hex socket, 8 mm x 100 mm, piston retainer, long

8шт.

55

P1245228

SEAL

WASHER - flat, 8 mm, piston retainer bolt

8шт.

56

P532914

SCREW

BOLT - track drive, Serial Range: motor-transmission

6шт.

57

P3037423

PLUG

- retainer

1шт.

58

P2343771

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, track drive, parts list Figures 6-10 and 6-12

2шт.

59

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Planetary cover Hex Skt Hd, M12 x 40, 10.9

12шт.

60

NSS

NOT SOLD SEPARAT

O-RING - bearing, order kit P5449609

1шт.

Part of transmission seal kit P/N P5449609.

1шт.

P5449609

SEAL PACKAGE

KIT - seal, transmission, Includes: Ref. 5, 24 and 30 on Figure 6-06 and Ref. 38 and 60 on this figure

1шт.

P5449610

SEAL PACKAGE

KIT - seal, transmission brake, Includes: Ref. 45, 47 and 49

1шт.
