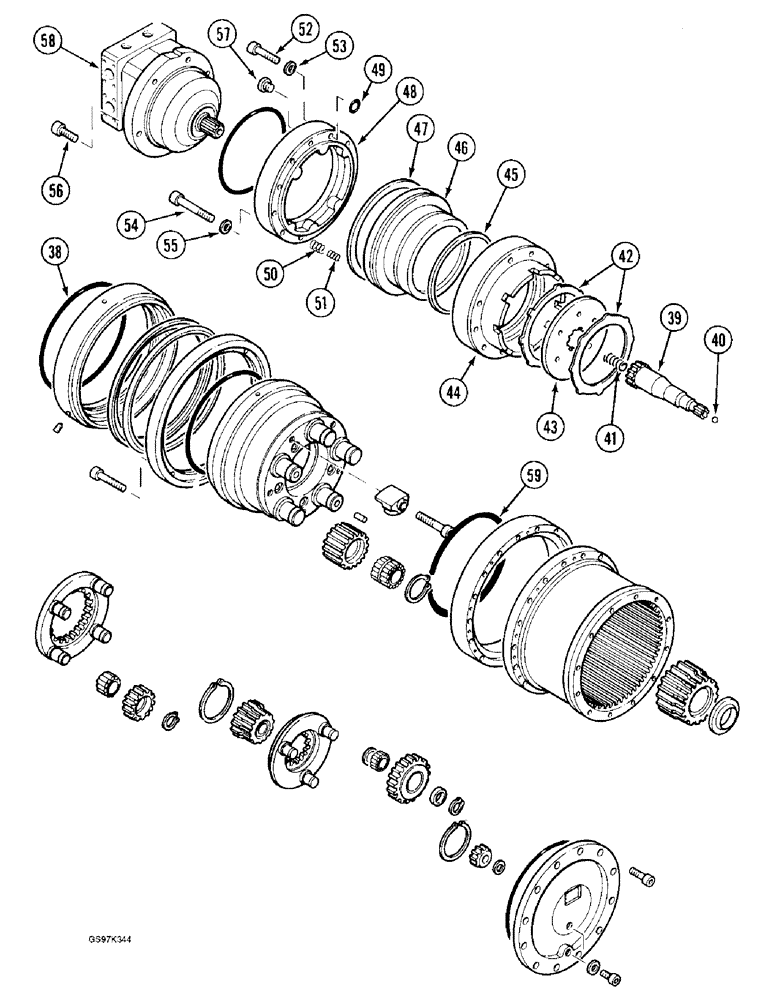

Запчасти Case 170C (6-04) - FINAL DRIVE TRANSMISSION, FINAL DRIVE PRIOR TO SERIAL NUMBER 813-7-06-0011 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - final drive, continued, Includes: Ref. 38-59

2шт.

P1928026

SHAFT

ASSEMBLY - input, transmission (Replaces shaft assembly P1928007), Includes: Ref. 38-40

1шт.

38

NSS

NOT SOLD SEPARAT

O-RING - seal retainer, used with shaft assembly P1928007

1шт.

Part of transmission seal kit P/N P5449609.

1шт.

39

NSS

NOT SOLD SEPARAT

SHAFT - input, transmission, order shaft assembly P1928026

1шт.

40

NSS

NOT SOLD SEPARAT

BALL - input shaft, order shaft assembly P1928026

1шт.

41

P38293

SPRING

- input shaft

1шт.

P943151

BRAKE

ASSEMBLY - transmission, Includes: Ref. 43-52

1шт.

42

P42881

DISC

- brake, friction

2шт.

43

NSS

NOT SOLD SEPARAT

DISC - brake, steel, order brake assembly P943151

1шт.

44

NSS

NOT SOLD SEPARAT

HOUSING - brake, order brake assembly P943151

1шт.

45

NSS

NOT SOLD SEPARAT

SEAL - brake piston, small

1шт.

Part of transmission brake seal kit P/N P5449610.

1шт.

46

NSS

NOT SOLD SEPARAT

PISTON - brake, order brake assembly P943151

1шт.

47

NSS

NOT SOLD SEPARAT

SEAL - brake piston, large

1шт.

Part of transmission brake seal kit P/N P5449610.

1шт.

48

NSS

NOT SOLD SEPARAT

RETAINER - piston, order brake assembly P943151

1шт.

49

NSS

NOT SOLD SEPARAT

O-RING - retainer bolt

4шт.

Part of transmission brake seal kit P/N P5449610.

1шт.

50

NSS

NOT SOLD SEPARAT

SPRING - brake piston, outer, order brake assembly P943151

22шт.

51

NSS

NOT SOLD SEPARAT

SPRING - brake piston, inner, order brake assembly P943151

14шт.

52

P1232958

SCREW

BOLT - hex socket, 8 mm x 45 mm, class 10.9, piston retainer, short

4шт.

53

P1245228

SEAL

WASHER - flat, 8 mm, piston retainer bolt

4шт.

54

P32906

SCREW

BOLT - hex socket, 8 mm x 100 mm, piston retainer, long

8шт.

55

P1245228

SEAL

WASHER - flat, 8 mm, piston retainer bolt

8шт.

56

P532914

SCREW

BOLT - track drive, Serial Range: motor-transmission

6шт.

57

P3037423

PLUG

- retainer

1шт.

58

P2343771

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, track drive, parts list Figures 6-10 and 6-12

2шт.

59

NSS

NOT SOLD SEPARAT

O-RING - bearing

1шт.

Part of transmission seal kit P/N P5449609.

1шт.

P5449609

SEAL PACKAGE

KIT seal, transmission, Includes: Ref. 5 and 30 from Figure 6-02 and Ref. 38 and 59 from Figure 6-04

1шт.

P5449610

SEAL PACKAGE

KIT seal, transmission brake, Includes: Ref. 45, 47 and 49

1шт.

P5449688

KIT

spring, consists of Ref. 50 and 51, also shown on Figure 6-08.

1шт.
