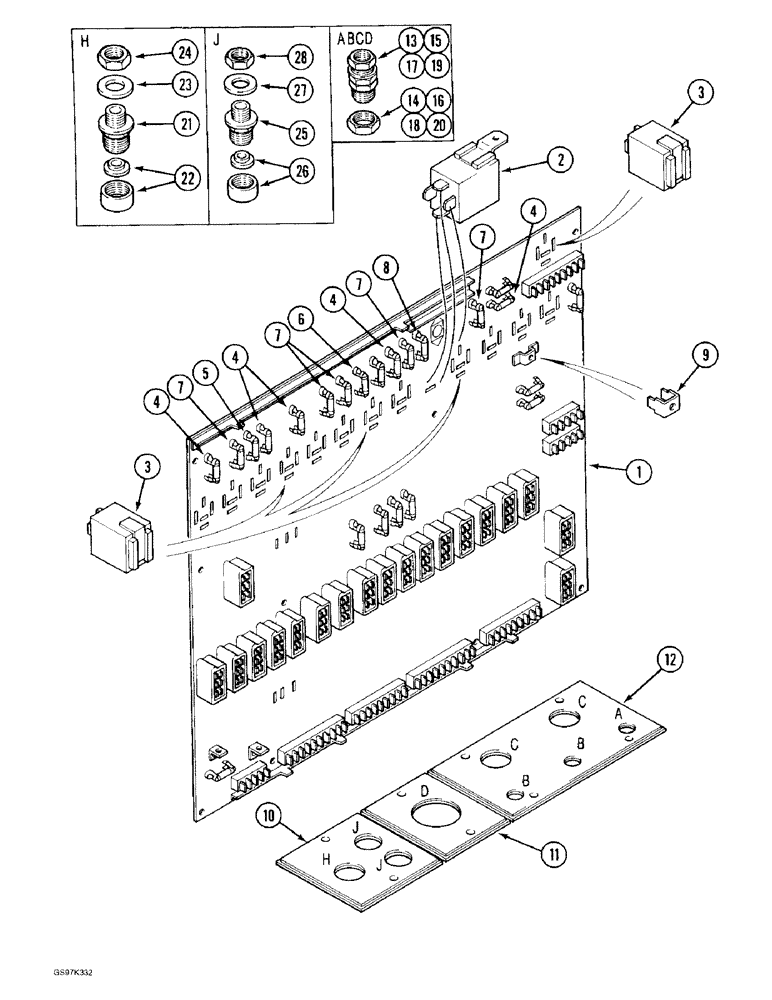

Запчасти Case 170C (4-52) - ELECTRICAL BOX, PRINTED CIRCUIT, P.I.N. 74632 THROUGH 74662, P.I.N. 02301 AND AFTER (04) - ELECTRICAL SYSTEMS

1

P151678

BOARD, PRINTED CIRCU

CIRCUIT - electrical box, printed

1шт.

2

P2041150

IGNITION SWITCH

SWITCH - magnetic, bolt-on type

1шт.

3

P3041116

IGNITION SWITCH

SWITCH - magnetic, plug-in type, at printed circuit

4шт.

4

P841297

FUSE

- circuit, 5 amp

5шт.

5

3021478R1

FUSE,A8, White

- circuit, 8 amp (Replaces fuse P841296)

1шт.

6

3021479R2

FUSE

- circuit, 10 amp (Replaces fuse P841295)

1шт.

7

926644C1

FUSE,A16, Red

- circuit, 16 amp (Replaces fuse P841294)

5шт.

8

P1241265

FUSE

- circuit, 30 amp

1шт.

9

P640961

CONNECTION

CLIP - connector, printed circuit

1шт.

10

P4823469

LARGE PLATE

PLATE - insulator, left-hand side

1шт.

11

P4823467

LARGE PLATE

PLATE - insulator, middle

1шт.

12

P4823473

LARGE PLATE

PLATE - insulator, right-hand side

1шт.

13

P141431

GLAND

BUSHING - harness locking, 10 mm (0.39 inch) diameter, “A” hole in plate

1шт.

14

P141439

NUT

- bushing, used with 10 mm (0.39 inch) diameter bushing

1шт.

15

P141430

GLAND

BUSHING - harness locking, 8 mm (0.31 inch) diameter, “B” hole in plate

2шт.

16

P141438

NUT

- bushing, used with 8 mm (0.31 inch) diameter bushing

2шт.

17

P141434

GLAND

BUSHING - harness locking, 18 mm (0.71) diameter, “C” hole in plate, no longer available, order (1) P141435 bushing, (1) P141453 nut and (1) P41495 adapter

2шт.

18

P141452

NUT

- bushing, used with 18 mm (0.71 inch) diameter bushing

2шт.

19

P141435

GLAND

BUSHING - harness locking, 24 mm (0.94 inch) diameter, “D” hole in plate

1шт.

20

P141453

NUT

- bushing, used with 24 mm (0.94 inch) diameter bushing

1шт.

21

P2340415

BODY

ADAPTER - plate cover, “H” hole in plate

1шт.

22

P2340414

CAP

COVER - adapter, includes seal

1шт.

23

P7546026

SEAL

-, Serial Range: adapter-box

1шт.

24

P1634584

NUT

- locking, Serial Range: adapter-box

1шт.

25

P2340444

BODY

ADAPTER - plate cover, “J” hole in plate

2шт.

26

P2340443

CAP

COVER - adapter, includes seal

2шт.

27

P7546066

SEAL

-, Serial Range: adapter-box

2шт.

28

P2434510

NUT

- locking, Serial Range: adapter-box

2шт.
