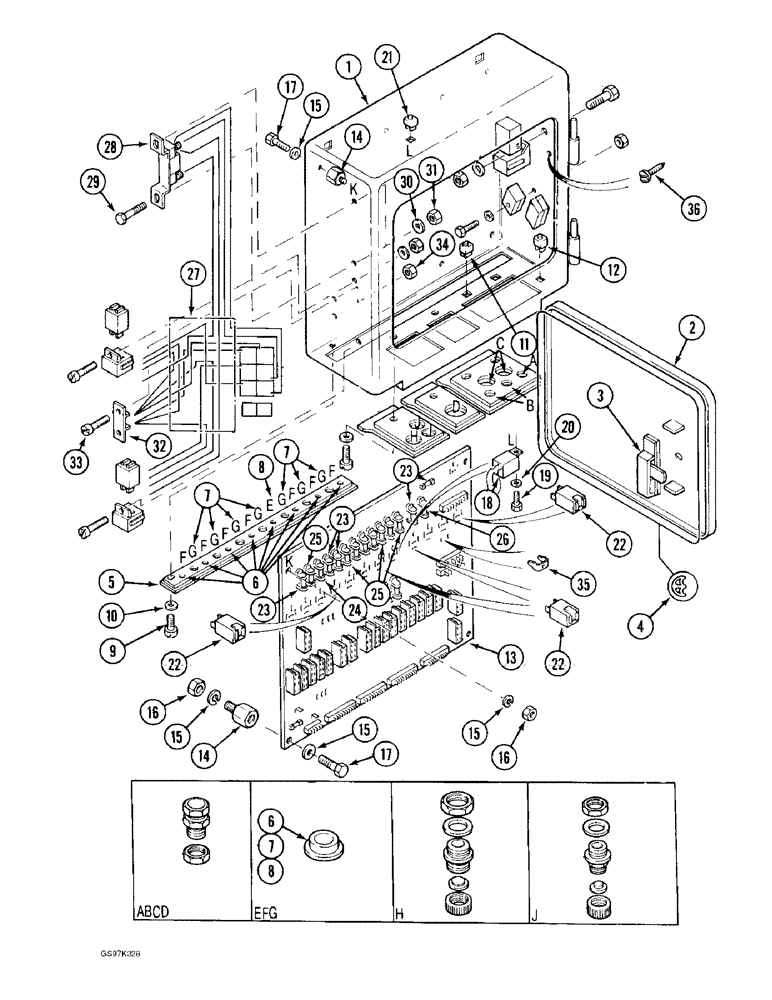

Запчасти Case 170C (4-44) - ELECTRICAL BOX, P.I.N. 74501 THROUGH 74631 (04) - ELECTRICAL SYSTEMS

1

P2241037

ELECTRICAL CABINET

BOX - electrical, printed circuit components

1шт.

P6643814

DOOR

ASSEMBLY - electrical box, Includes: Ref. 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

DOOR - electrical box, order door assembly P6643814

1шт.

3

P51922

LATCH

- door

1шт.

4

REF

INSTRUCTION

SEAL - door, rubber, 1400 mm (55-1/8 inch) long, cut from bulk seal P303111 below

1шт.

P3141478

LARGE PLATE

PLATE ASSEMBLY - insulator, Includes: Ref. 2-8

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - insulator, order plate assembly P3141478

1шт.

6

P1337491

PLASTIC PLUG

PLUG - insulator plate, 15.6 mm (0.61 inch) diameter, “F” hole in plate

7шт.

7

P2537453

PLASTIC PLUG

PLUG - insulator plate, 19.3 mm (0.76 inch) diameter, “G” hole in plate

7шт.

8

P2537452

PLASTIC PLUG

PLUG - insulator plate, 30.5 mm (1.20 inch) diameter, “E” hole in plate

1шт.

9

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

10

P35001

WASHER

- flat, 6 mm

4шт.

11

P1334574

NUT

- cage type, 6 mm

8шт.

12

P1334560

NUT

- cage type, 10 mm

4шт.

13

P151678

BOARD, PRINTED CIRCU

CIRCUIT - printed, electrical box

1шт.

14

P2329172

SPACER

- special, printed, Serial Range: circuit-box

12шт.

15

P34603

WASHER

- flat, 4 mm

24шт.

16

P2434505

SAFETY NUT

NUT - hex, self-locking, 4 mm

12шт.

17

614-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

- hex, full threads, 4 - 0.7 x 8 mm (Replaces bolt P232604)

12шт.

18

P2041150

IGNITION SWITCH

SWITCH - magnetic, bolt-on type

1шт.

19

P133857

SCREW

BOLT - hex, 6 mm x 12 mm

1шт.

20

P35001

WASHER

- flat, 6 mm

1шт.

21

P1334574

NUT

- cage type, 6 mm

1шт.

22

P3041116

IGNITION SWITCH

SWITCH - magnetic, plug-in type, at printed circuit (Replaces switch P241140)

4шт.

23

3021479R2

FUSE

- circuit, 5 amp (Replaces fuse P841297)

5шт.

24

3021478R1

FUSE,A8, White

- circuit, 8 amp (Replaces fuse P841296)

1шт.

25

926644C1

FUSE,A16, Red

- circuit, 16 amp (Replaces fuse P841294)

4шт.

26

P1241265

FUSE

- circuit, 30 amp

1шт.

27

P1652212

HARNESS

- electrical box (Replaces harness P8547278)

1шт.

28

P342440

RESISTOR

- electrical circuit

1шт.

29

P133857

SCREW

BOLT - hex, 6 mm x 12 mm

2шт.

30

P3528799

WASHER

SPACER - 4 mm thick, bolt

2шт.

31

825-1406

NUT,M6, Cl 8

2шт.

32

P40826

SLIDER

CONNECTOR - electrical circuit

1шт.

33

P32531

SCREW

- slotted head, 4 mm x 20 mm

2шт.

34

P34107

NUT - hex, 4 mm, order from Deutz

2шт.

35

P640961

CONNECTION

CLIP - connector, printed circuit

1шт.

36

P2036942

SUPPORT

CLAMP - harness, electrical box

3шт.

P303111

SEAL

- bulk, sold by the meter Continued on next figure

1шт.
