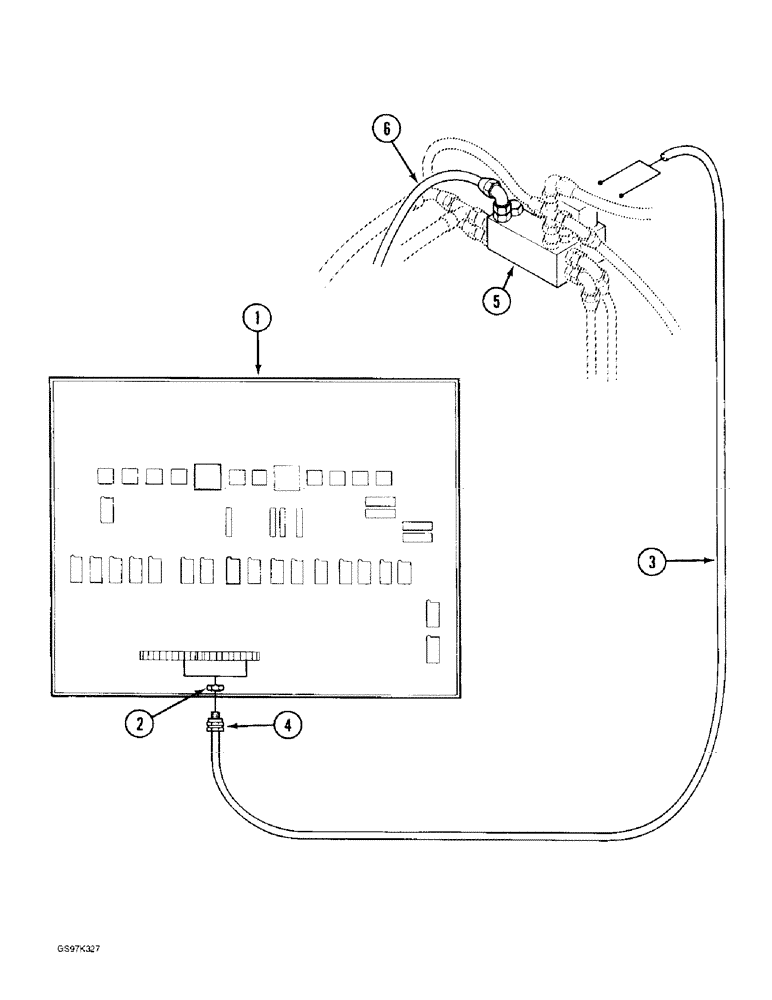

Запчасти Case 170C (4-42) - SWING BRAKE ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

BOX - electrical, see Figures 4-44 through 4-52 for electrical box and related parts

1шт.

2

P141439

NUT

- lock, bushing

1шт.

P8647267

CABLE

HARNESS ASSEMBLY - swing brake, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

HARNESS - swing brake, order harness assembly P8647267

1шт.

4

P141431

GLAND

BUSHING - harness locking

1шт.

5

P1843371

SHIN

VALVE ASSEMBLY - control, solenoid, parts list Figure 8-132

1шт.

6

REF

INSTRUCTION

HOSE - control circuit, solenoid valve to swing motor, see Figure 8-56, item 9

1шт.
