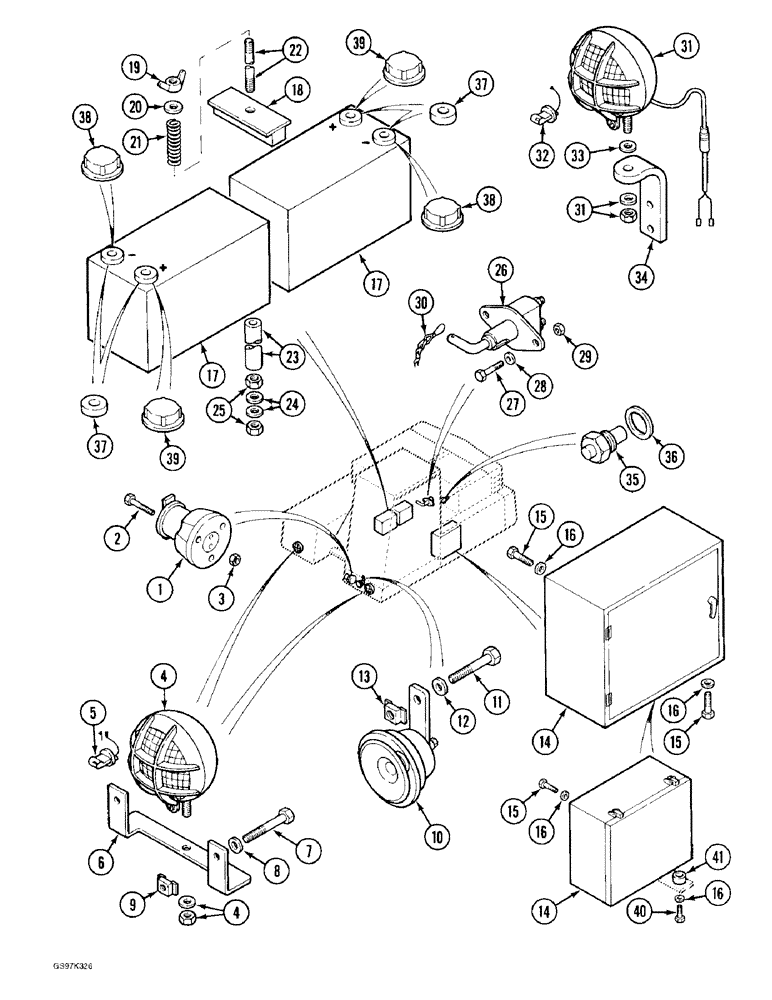

Запчасти Case 170C (4-40) - TURNTABLE ELECTRICAL COMPONENTS (04) - ELECTRICAL SYSTEMS

1

P40754

PEDESTAL

SOCKET - trouble lamp

1шт.

2

P32550

SCREW

- slotted head, 6 mm x 30 mm

3шт.

3

832-10406

NUT,M6 x 1, Cl 8

LOCK, (Replaces nut P234513) M6 x 1, Cl 8

3шт.

4

P841725

SPOTLIGHT

LAMP - work, at turntable

2шт.

5

P340501

LAMP

BULB - turntable lamp

2шт.

6

P4825675

SUPPORT

BRACKET - lamp mounting

1шт.

7

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

2шт.

8

P3528794

WASHER

SPACER - bolt, 6 mm thick

2шт.

9

P1334571

NUT

- cage type, 8 mm

2шт.

10

P4143205

BUZZER

HORN - warning (Replaces horn P841746)

1шт.

11

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

1шт.

12

P3528794

WASHER

SPACER - bolt, 6 mm thick

1шт.

13

P1334571

NUT

- cage type, 8 mm

1шт.

14

REF

INSTRUCTION

BOX - electrical, main control, see Figure 4-45 and 4-47 for electrical box and related parts

1шт.

15

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2-4шт.

16

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

17

P941840

BATTERY, DRY

BATTERY - 12 volt, dry-type

2шт.

17a

P2340487

HOLE PLUG BUTTON

WASHER - anti-sulphate, not shown

1шт.

18

P3141474

CONNECTING STRIP

BRACKET - battery hold down

3шт.

19

P34409B

NUT, WING

NUT - wing, stud

3шт.

20

P3528794

WASHER

SPACER - wing nut

3шт.

21

P138125

COMPRESSION SPRING

SPRING - tension

3шт.

22

P1727752

TRUSS ROD

STUD - battery retaining

3шт.

23

P1231832

TUBE

SLEEVE - stud

3шт.

24

P3528794

WASHER

SPACER - sleeve

6шт.

25

P34113

NUT

- hex, 8 mm, stud retaining

6шт.

26

P2141263

CIRCUIT-BREAKER

SWITCH - battery disconnect (Replaces switch P641221)

1шт.

27

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm

2шт.

28

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

29

825-1406

NUT,M6, Cl 8

2шт.

30

P31523

CHAIN (AG)

CHAIN - battery disconnect

1шт.

31

P841725

SPOTLIGHT

LAMP - work lamp, at boom, includes washer and nut

2шт.

32

P340501

LAMP

BULB - boom work lamp

2шт.

33

P35004

WASHER

- lamp mounting

2шт.

34

P2326776

LARGE PLATE

BRACKET - work lamp mounting, at boom cylinder tube clamp

2шт.

35

P641661

PROBE

SENDER - temperature, hydraulic reservoir

1шт.

36

P28430

COMPOSITE SEAL

SEAL - temperature sender

1шт.

37

P2340487

HOLE PLUG BUTTON

WASHER - treated, corrosion protector set

2шт.

38

P4641405

DOOR COVER

CAP - terminal protector, black (Replaces cap P2340451)

2шт.

39

P4641404

DOOR COVER

CAP - terminal protector, red (Replaces cap P2340452)

2шт.

40

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

2шт.

41

P828504

BUSHING

SPACER - electrical box to mounting, used with P933883 bolt only

2шт.
