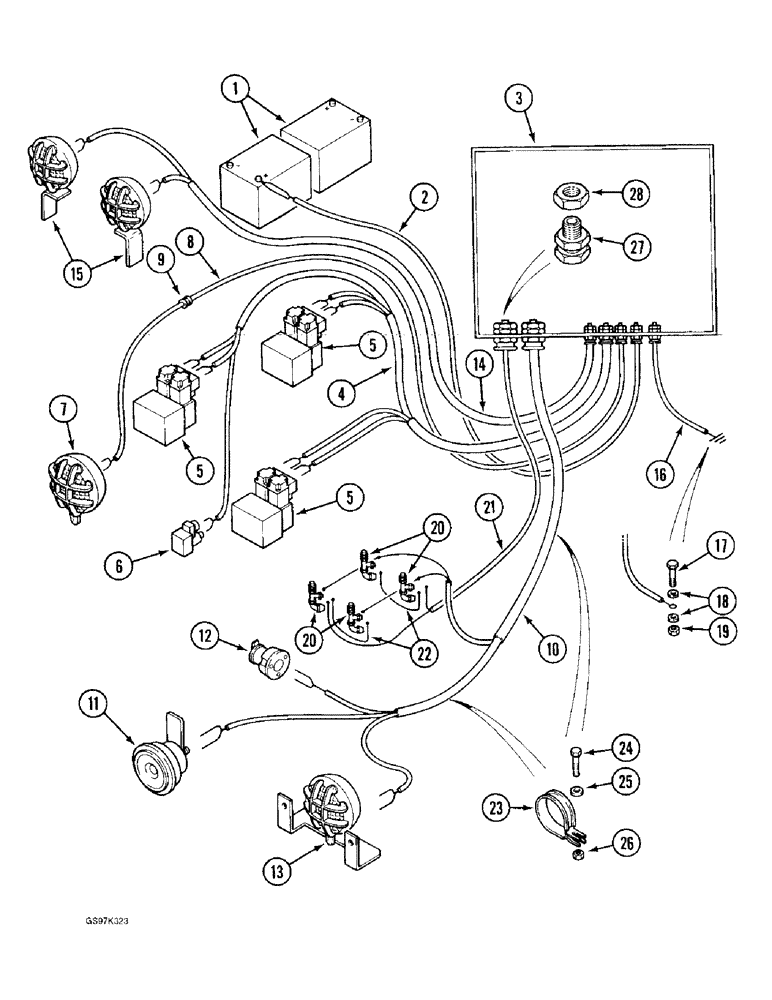

Запчасти Case 170C (4-34) - TURNTABLE ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

BATTERY - 12 volt, see Figure 4-40 for battery mounting

2шт.

2

P1352255

CABLE

- battery to electrical box

1шт.

3

REF

INSTRUCTION

BOX - electrical, see Figures 4-44 through 4-52 for electrical box and related parts, see page 4-67 for turntable harness connections

1шт.

4

P8647241

HARNESS

- electrical box to solenoid control valves

1шт.

5

P1843371

SHIN

VALVE ASSEMBLY - solenoid control, parts list Figure 8-132

3шт.

6

P3143633

BLOCK ASSY.

VALVE ASSEMBLY - solenoid control, parts list Figure 8-134

1шт.

7

REF

INSTRUCTION

LAMP - turntable, right-hand, see page 4-41 for mounting

1шт.

8

P8647264

CABLE

HARNESS - electrical box to right-hand turntable lamp

1шт.

9

P41477

GROMMET

- rubber, harness

1шт.

10

P9247297

HARNESS

- horn, electrical attachment socket and left-hand turntable lamp

1шт.

11

REF

INSTRUCTION

HORN - warning, see Figure 4-40 for mounting

1шт.

12

REF

INSTRUCTION

SOCKET - electrical attachment, see Figure 4-40 for mounting

1шт.

13

REF

INSTRUCTION

LAMP - turntable, left-hand, see Figure 4-41 for mounting

1шт.

14

P8647240

HARNESS

- work lamps

1шт.

15

REF

INSTRUCTION

LAMP - work, see Figure 4-40 for mounting

2шт.

16

P8547239

CABLE

HARNESS - ground

1шт.

17

P1133803

SCREW

BOLT - hex, 6 mm x 22 mm, ground harness mounting

1шт.

18

P3528799

WASHER

SPACER - 4 mm thick, ground harness mounting bolt

2шт.

19

825-1406

NUT,M6, Cl 8

Ground harness mounting bolt M6, Cl 8

1шт.

20

REF

INSTRUCTION

SENDER - electrical, travel speed, see Figure 8-51 for related hydraulic components

1шт.

21

P9547228

CABLE

HARNESS - electrical, Serial Range: box-senders

1шт.

22

P9547227

ELECTRICAL WIRE

WIRE - connector, electrical senders

2шт.

23

P836985

CLAMP

- harness, 27 mm - 31 mm range

1шт.

24

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

- hex flange, 8 mm x 22 mm, special, harness clamp

1шт.

25

P3528794

WASHER

SPACER - 6 mm thick, clamp bolt

1шт.

26

P34113

NUT

- hex, 8 mm, clamp bolt

1шт.

27

P141431

GLAND

BUSHING - harness locking, 10 mm (0.39 inch) diameter

1шт.

28

P141439

NUT

- bushing, used with 10 mm (0.39 inch) diameter bushing

1шт.
