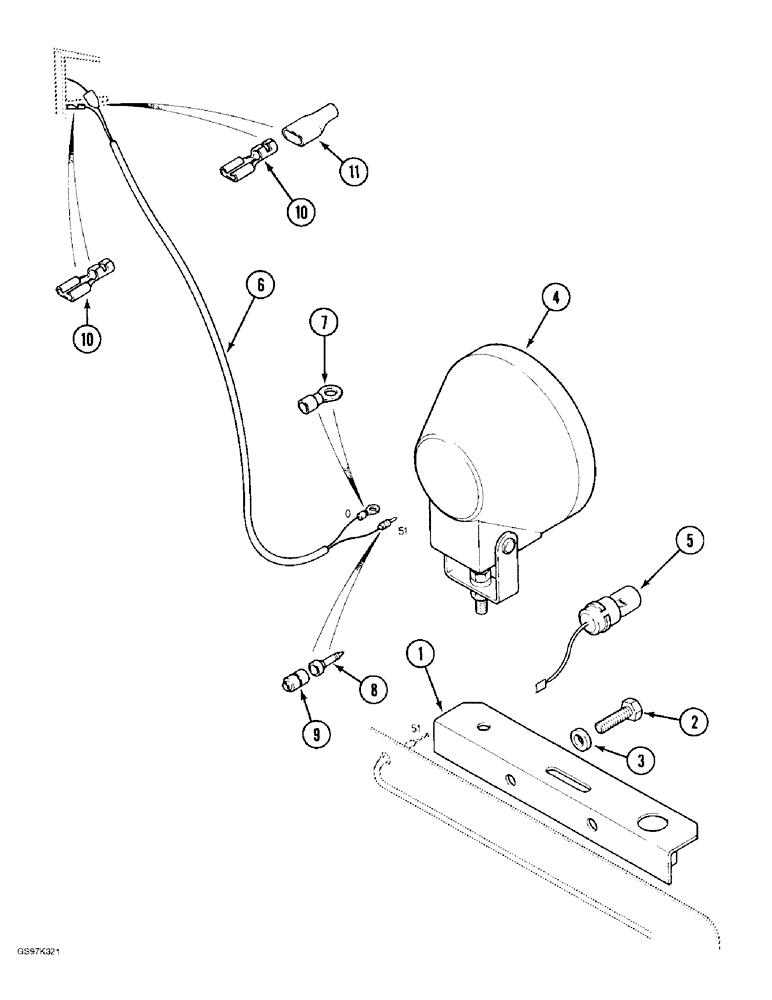

Запчасти Case 170C (4-30) - CAB REAR LAMP, OPTIONAL (04) - ELECTRICAL SYSTEMS

1

P4127164

SUPPORT

BRACKET - lamp mounting

1шт.

2

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 mm - 1 x 25 mm

2шт.

3

P3528799

WASHER

SPACER - mounting bolt

2шт.

4

P841727

HEADLIGHT

LAMP - cab, rear

1шт.

5

P340501

LAMP

BULB - lamp

1шт.

6

P4565

CABLE

HARNESS - wiring, rear lamp

1шт.

7

P40927

TERMINAL CONNECTOR

TERMINAL - eyelet

1шт.

8

P440901

CONNECTOR,ELECTRIC

TERMINAL - male

1шт.

9

P40921

END FITTING

INSULATOR - male terminal

1шт.

10

P40940

TERMINAL

CLIP - wire

2шт.

11

P41471

LIGHT FAIRING

COVER - wire clip

1шт.
