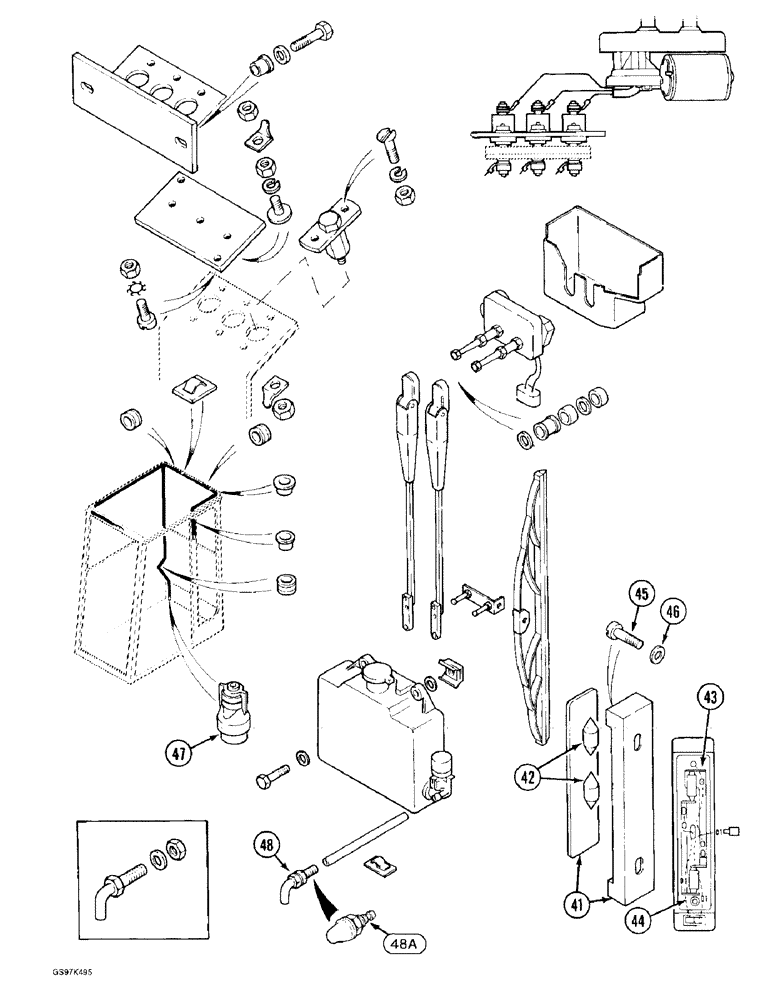

Запчасти Case 170C (4-26) - CAB ELECTRICAL COMPONENTS (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

LAMP ASSEMBLY - cab, no longer available as an assembly, order components, Includes: Ref. 41-45

1шт.

41

P841718

COURTESY LIGHT

LAMP - cab, includes cover

1шт.

42

P40565

LAMP

BULB - cab lamp

2шт.

43

P6747257

ELECTRICAL WIRE

WIRE - lamp, upper

1шт.

44

P6747256

ELECTRICAL WIRE

WIRE - lamp, lower

1шт.

45

P32529

SCREW,Hex Soc Hd, M4 x 16

- lamp to cab

2шт.

46

P4328717

WASHER

SPACER - lamp screw

2шт.

47

P40746

CONNECTOR,ELECTRIC

PLUG - cab harness, 7-way

1шт.

48

P3743271

JET

NOZZLE - windshield washer, if used, no longer available, order nozzle P4143207, item 48A

1шт.

48a

P4143207

JET

NOZZLE - windshield washer

1шт.
