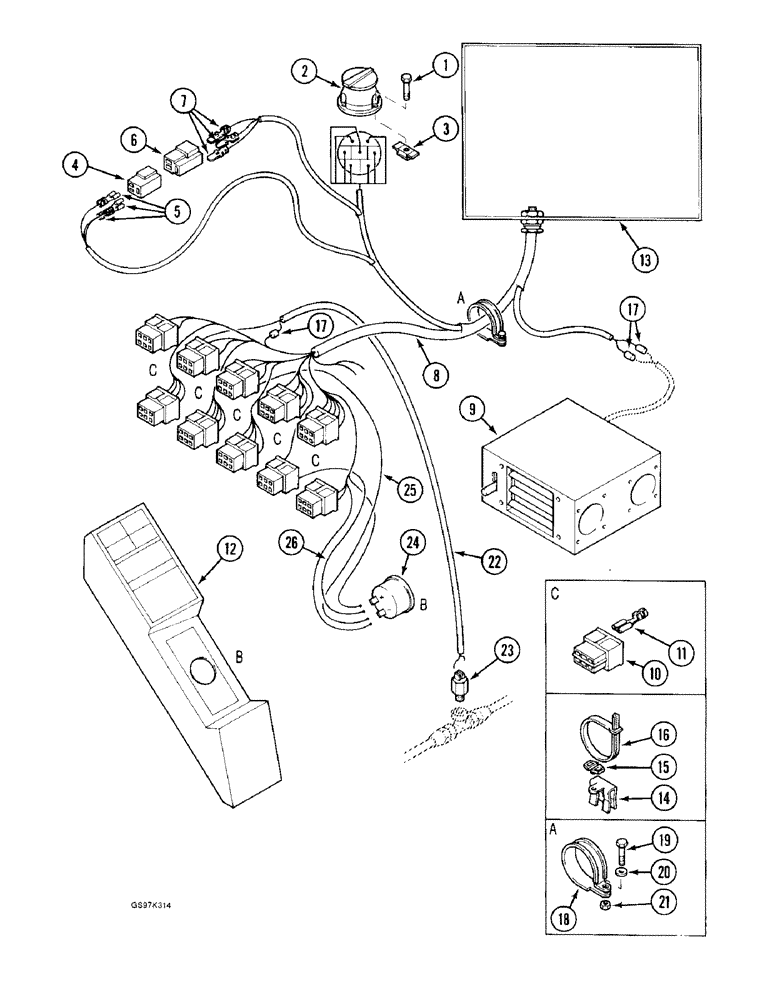

Запчасти Case 170C (4-14) - INSTRUMENT PANEL ELECTRICAL HARNESS, P.I.N. 74501 AND AFTER (04) - ELECTRICAL SYSTEMS

1

P32550

SCREW

- slotted head, 6 mm x 30 mm

3шт.

2

P40745

PEDESTAL

SOCKET - cab harness

1шт.

3

P1634573

NUT

- cage type, 6 mm

3шт.

4

P1340708

CASE

CONNECTOR - male, 3-way

1шт.

5

P640945

CLIP,ELECTRICAL

CLIP - wire

3шт.

6

P840766

ELEC CONNECTOR

CONNECTOR - female, 3-way

1шт.

7

P40938

CONNECTION

RETAINER - wire

3шт.

8

P9547236

HARNESS

- instrument panel

1шт.

9

P1241846

HEATER ASSY.

HEATER ASSEMBLY - cab, engine oil, parts list Figure 4-54

1шт.

10

P840757

CASE

CONNECTOR - male, 6-way

10шт.

11

P40937

CLIP,ELECTRICAL

CLIP - wire

1шт.

12

REF

INSTRUCTION

PANEL ASSEMBLY - instrument, parts list Figure 4-10

1шт.

13

REF

INSTRUCTION

BOX - electrical, see Figures 4-44 through 4-52 for electrical box and related parts, see Figure 4-36 or 4-38 for instrument panel harness connections

1шт.

14

P2036902

CLASP

CLIP - retainer, expands from 3 mm (0.12 inch) to 7 mm (0.27 inch)

1шт.

14

P2036903

CLASP

CLIP - retainer, expands from 8 mm (0.31 inch) to 13 mm (0.51 inch)

1шт.

14

P1436963

CLASP

CLIP - retainer, expands from 14 mm (0.55 inch) to 20 mm (0.79 inch)

1шт.

15

P2036939

CLASP

RETAINER - tie strap

1шт.

16

P336923

CLAMP

STRAP - tie, harness, 117 mm (4-5/8 inch) long

1шт.

16

P51946

CLAMP

STRAP - tie, harness, 258 mm (10-1/8 inch) long

1шт.

16

P136922

CLAMP

STRAP - tie, harness, 351 mm (13-7/8 inch) long

1шт.

17

P40941

CONNECTION,ELECTRIC

CONNECTOR - wire clip

3шт.

18

P1736988

CLAMP

- harness, 44 mm (1-3/4 inch) to 51 mm (2 inch) diameter

1шт.

19

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

- hex flange, 8 mm x 22 mm, special harness clamp

1шт.

20

P3528794

WASHER

SPACER - clamp bolt

1шт.

21

P1334571

NUT

- clamp bolt

1шт.

22

P9247229

CABLE

HARNESS - electrical, to sender, no longer available

1шт.

23

P1241847

ELECTRO/HYD CONTACT

SENDER - electrical, see Figure 8-48 for hydraulic control circuit connections

1шт.

24

P841710

BUZZER

ALARM - low engine oil pressure, see Figure 4-10

1шт.

25

P9547271

ELECTRICAL WIRE

WIRE - connector, Serial Range: harness-alarm

1шт.

26

P9547272

ELECTRICAL WIRE

WIRE - connector, Serial Range: harness-alarm

1шт.
