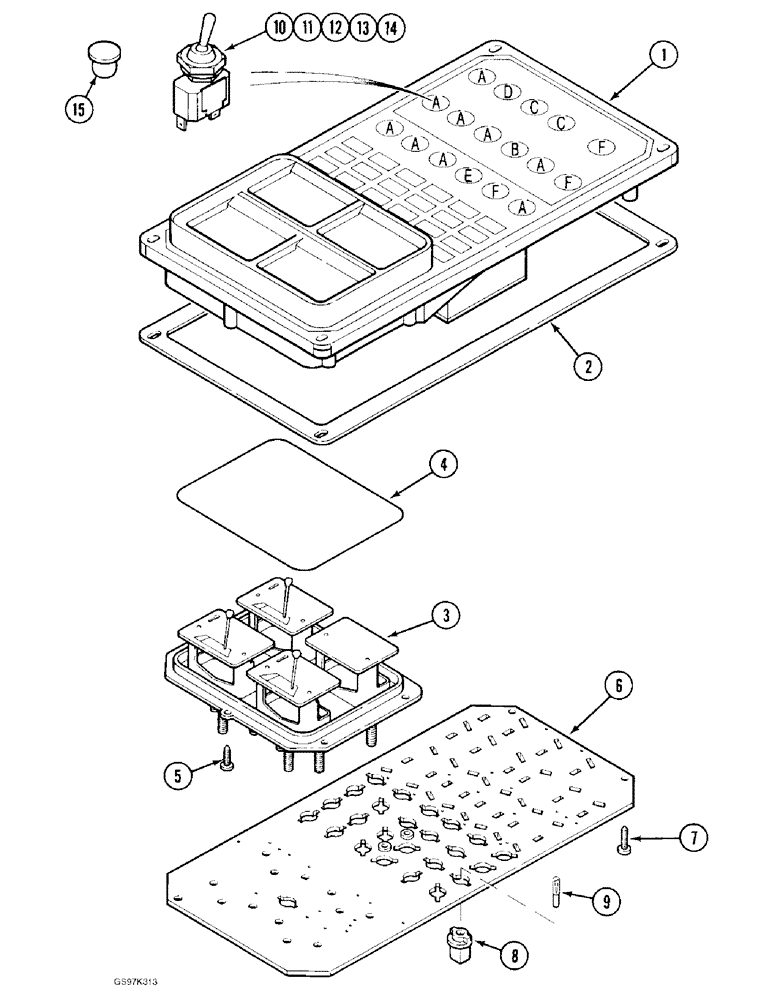

Запчасти Case 170C (4-12) - ELECTRICAL CONTROL PANEL (04) - ELECTRICAL SYSTEMS

P3643813

PANEL ASSEMBLY - electrical control (Replaces panel assembly P7743889), Includes: Ref. 1-15

1шт.

1

P2241062

FRAME

COVER - control

1шт.

2

P7546028

SEAL

GASKET - control panel, Serial Range: cover-console

1шт.

3

P2941032

BOTTOM

CLUSTER - instrument, control panel (Replaces cluster P1251571)

1шт.

4

P7546029

SEAL

GASKET -, Serial Range: cluster-cover

1шт.

5

P2033026

SCREW

-, Serial Range: cluster-cover

6шт.

6

P851604

BOARD, PRINTED CIRCU

CIRCUIT - printed, control panel (Replaces circuit P151686)

1шт.

7

P2033026

SCREW

- printed, Serial Range: circuit-panel

2шт.

8

P1941442

SUPPORT

SOCKET - control panel lamp

22шт.

9

P40506

LAMP

BULB - control panel lamp

22шт.

10

P641619

IGNITION SWITCH

SWITCH - toggle, control panel, “A” location

9шт.

11

P641609

SWITCH

- toggle, control panel, “B” location

1шт.

12

P641611

SWITCH

- toggle, control panel, “C” location

2шт.

13

P2741623

SWITCH

- toggle, control panel, “D” location

1шт.

14

P2141698

SWITCH

- toggle, control panel, “E” location

1шт.

15

P1540469

BLANK-OFF PLUG

PLUG - control panel, “F” location

3шт.
