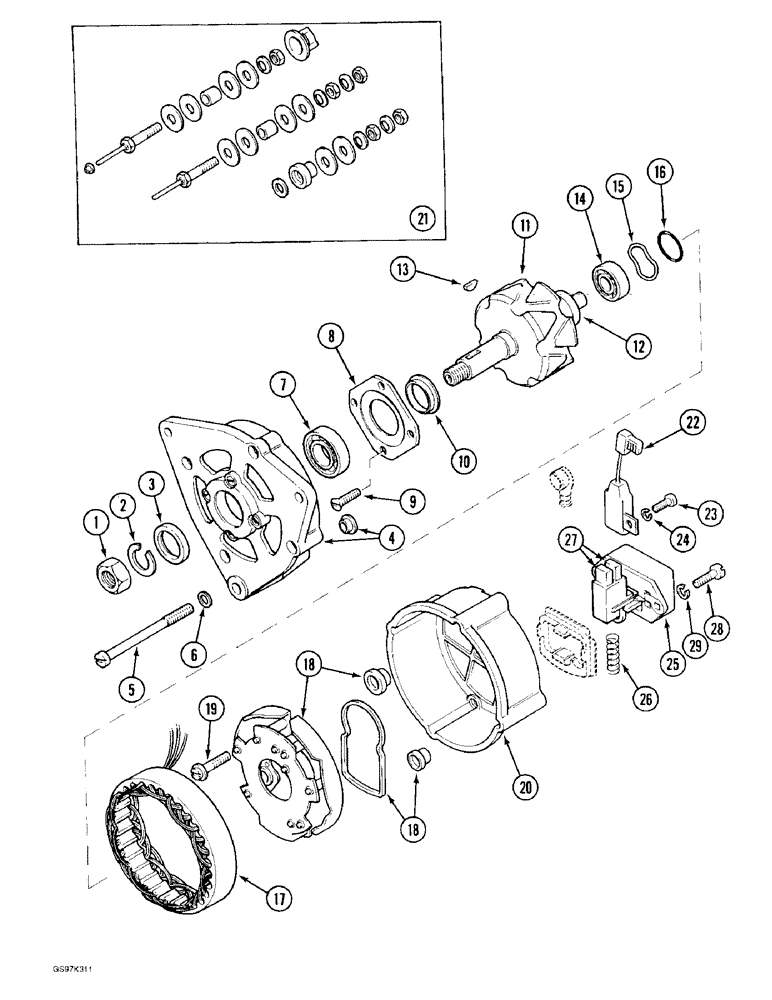

Запчасти Case 170C (4-08) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

3218884R91

ALTERNATOR

ALTERNATOR ASSEMBLY - electrical (Replaces alternator assembly P641553), Includes: Ref. 1-29

1шт.

1964860C1GV

ALTERNATOR

Value

1шт.

1964860C1R

REMAN-ALTERNATOR

Remanufactured ALTERNATOR, 24 volt 65 ampere

1шт.

1964860C1C

CORE-ALTERNATOR

Return Part Number

1шт.

87297240

REMAN-ALTERNATOR

Remanufactured ALTERNATOR

1шт.

87297241

CORE-ALTERNATOR

Return Part Number

1шт.

87297230

REMAN-ALTERNATOR

Remanufacture ALTERNATOR, 12 volt 65 ampere

1шт.

87297231

CORE-ALTERNATOR

Return Part Number

1шт.

A186124

ALTERNATOR

Alternator, 24V, 45 Amp

1шт.

AR186124

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC186124

CORE-ALTERNATOR

Return Part Number

1шт.

A187873

ALTERNATOR,12V, 65A

Alternator, 14V, 65 Amp

1шт.

AR187873

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC187873

CORE-ALTERNATOR

Return Part Number

1шт.

A187873GV

ALTERNATOR

Value, 14V, 65 Amp

1шт.

1

NSS

NOT SOLD SEPARAT

NUT - fan and pulley retaining

1шт.

Part of rotor assembly hardware kit P/N P641533.

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

Part of rotor assembly hardware kit P/N P641533.

1шт.

3

NSS

NOT SOLD SEPARAT

COLLAR - rotor shaft

1шт.

Part of rotor assembly hardware kit P/N P641533.

1шт.

4

3079380R1

COVER

COVER - drive end shield (Replaces cover P7230131)

1шт.

5

3079388R1

SCREW

BOLT - through, cover to housing (Replaces bolt P2033033)

4шт.

6

J907481

WASHER

WASHER - flat (Replaces washer P35055)

4шт.

7

3079129R91

BALL BEARING

BEARING - ball, drive end (Replaces bearing P2039816)

1шт.

8

3078379R1

COVER

CAP - rotor (Replaces cap P1340498)

1шт.

9

NSS

NOT SOLD SEPARAT

BOLT - cap

4шт.

Part of rotor assembly hardware kit P/N P641533.

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rotor shaft

1шт.

Part of rotor assembly hardware kit P/N P641533.

1шт.

P641561

ROTOR

ROTOR ASSEMBLY - alternator, Includes: Ref. 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

ROTOR - alternator, order rotor assembly P641561

1шт.

12

3079382R1

ROTOR

BUSHING - rotor (Replaces bushing P6146080)

1шт.

13

NSS

NOT SOLD SEPARAT

KEY - Woodruff, rotor shaft

1шт.

Part of rotor assembly hardware kit P/N P641533.

1шт.

14

3079383R91

BALL BEARING

BEARING - ball, inner (Replaces bearing P2039817)

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - wave, bearing

1шт.

Part of rotor assembly hardware kit P/N P641533.

1шт.

16

3079386R1

O-RING

O-RING - bearing (Replaces O-ring P1630466)

1шт.

17

3079387R91

STATOR

STATOR - alternator (Replaces stator P641563)

1шт.

18

P2140611

RECTIFIER

DIODE - alternator, diode holder

1шт.

19

A186188

SCREW

BOLT - diode holder to housing (Replaces bolt P2033032)

3шт.

20

P7230132

FLANGE

HOUSING - alternator, rear cover

1шт.

21

3079391R91

PACKAGE, REPAIR

CONNECTOR - electrical, set, at rear of housing (Replaces connector P4746267)

1шт.

22

3079383R91

BALL BEARING

CAPACITOR - alternator (Replaces capacitor P2042417)

1шт.

23

3079390R1

SCREW,Slot Cheese Hd, M5 x .8 x 10, 5.8

BOLT - capacitor mounting (Replaces bolt P2033035)

1шт.

24

P34740

WASHER

WASHER - lock, no longer available

1шт.

3079392R91

GOVERNOR

REGULATOR ASSEMBLY - voltage (Replaces regulator assembly P641565), Includes: Ref. 25-27

1шт.

25

NSS

NOT SOLD SEPARAT

REGULATOR - voltage, order regulator assembly 3079392R91

1шт.

26

P1538138

SPRING

SPRING - regulator

1шт.

27

3079394R92

BRUSH SET

KIT - brushes, alternator (Replaces kit P1241206)

1шт.

28

P2033034

SCREW

BOLT - regulator mounting

2шт.

29

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER - lock (Replaces washer P34739)

2шт.

P641533

KIT

KIT - rotor assembly hardware, Includes: Ref. 1 - 3, 9, 10, 13 and 15

1шт.
