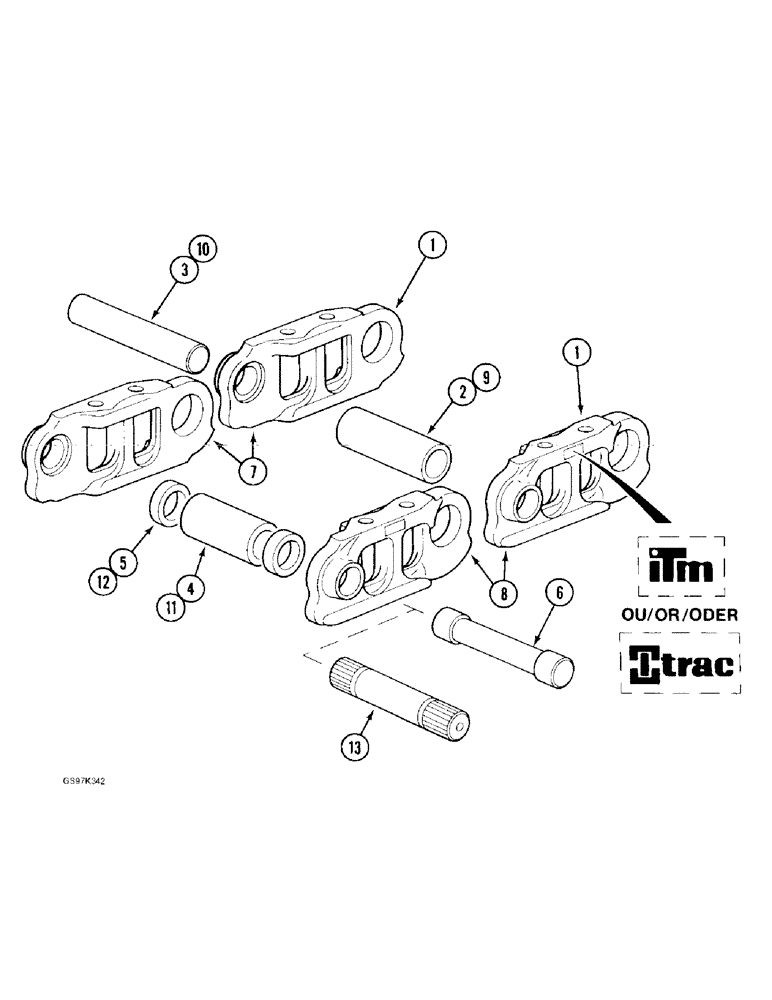

Запчасти Case 170C (5-18) - TRACK CHAIN, LINKS AND PINS (11) - TRACKS/STEERING

P1942339

CHAIN (CE)

CHAIN ASSEMBLY - track, 51 link, ITM identification, Includes: Ref. 1-6

2шт.

1

P1642383

LINK

- track, set, includes one right-hand and one left-hand link

51шт.

2

P2229361

SPACER

BUSHING - standard pin

50шт.

3

P3227378

PIN

- standard

50шт.

4

P2229360

SPACER

BUSHING - master pin

1шт.

5

P2229359

SPACER

- master pin

2шт.

6

P3227377

PIN

- master

1шт.

P1942339

CHAIN (CE)

CHAIN ASSEMBLY - track, 51 link, Intertrac identification, Includes: Ref. 7-13

2шт.

7

P1542360

LINK

- track, right-hand

51шт.

8

P1542353

LINK

- track, left-hand

51шт.

9

P829377

SPACER

BUSHING - standard pin

50шт.

10

P927344

PIN

- standard

50шт.

11

P829376

SPACER

BUSHING - master pin

1шт.

12

P1728714

SPACER

- master pin

2шт.

13

P1627826

PIN

- master, conical section, order pin P6427815 below (See Figure Note)

1шт.

13

P6427815

PIN

- master, cylindrical section

1шт.
