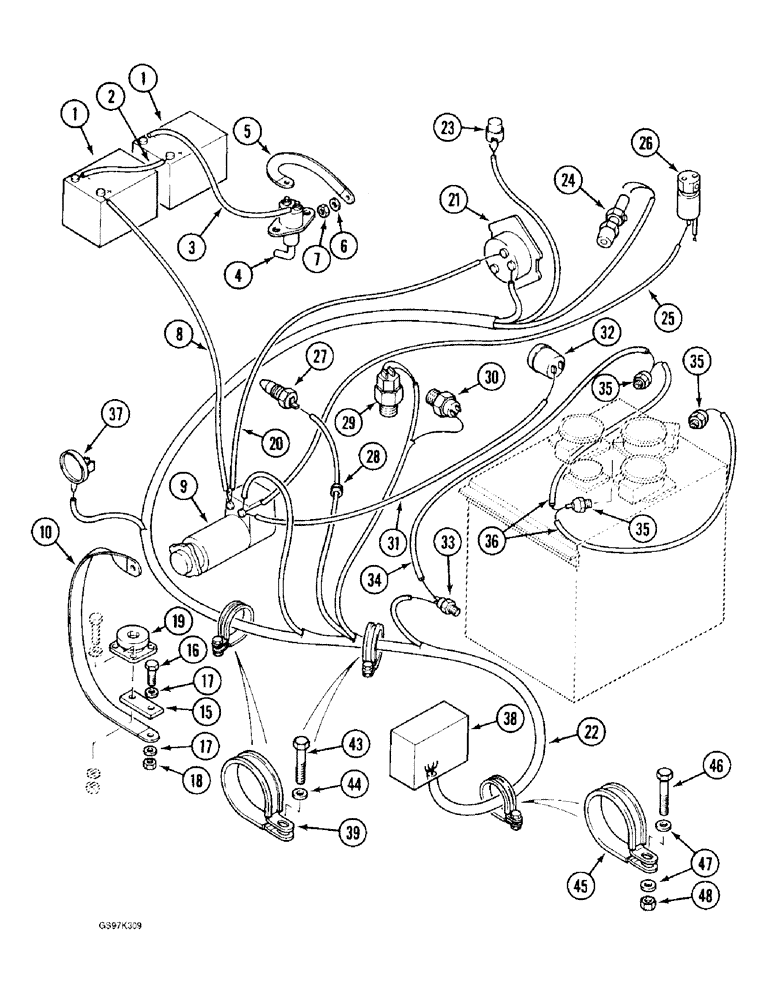

Запчасти Case 170C (4-04) - ENGINE ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

BATTERY - 12 volt, dry-type, see Figure 4-40 for battery mounting

2шт.

2

P2847228

CABLE

-, Serial Range: battery-battery

1шт.

3

P51640

CABLE

- battery to battery disconnect switch

1шт.

4

REF

INSTRUCTION

SWITCH - battery disconnect, see Figure 4-40

1шт.

5

P3947203

NEG BATTERY CABLE

STRAP - ground, battery disconnect switch

1шт.

6

P3528794

WASHER

SPACER - strap mounting, 6 mm thick

1шт.

7

P34185H

NUT,M8, Cl 10

- hex, 8 mm, strap mounting

1шт.

8

P8647210

CABLE

-, Serial Range: battery-starter

1шт.

9

P241521

DEUTZ PART

STARTER ASSEMBLY - engine, parts list Figure 4-6, see Figure 2-8 for mounting hardware

1шт.

10

P1047299

NEG BATTERY CABLE

CABLE - starter ground, to plate at engine mount

1шт.

15

P2623143

PLATE

- mounting, ground strap

1шт.

16

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm (Replaces bolt P933818)

1шт.

17

P3528795

WASHER

SPACER - bolt, 7 mm thick

2шт.

18

825-1410

NUT,M10, Cl 8

(Replaces nut P34166) M10, Cl 8

1шт.

19

REF

INSTRUCTION

MOUNT - engine, see Figure 2-6

1шт.

20

P8647254

CABLE

WIRE -, Serial Range: starter-alternator

1шт.

21

3218884R91

ALTERNATOR

ASSEMBLY - electrical, parts list Figure 4-8, see Figure 2-8 for mounting hardware

1шт.

22

P9547264

HARNESS

- engine

1шт.

23

1983640C1

RESTRICTION SWITCH

SWITCH - air filter restriction indicator (Replaces sender P2141684)

1шт.

24

REF

INSTRUCTION

PLUG - engine preheater, order from authorized Deutz dealer

1шт.

25

P9547266

CABLE

WIRE - to preheater switch

1шт.

26

REF

INSTRUCTION

SWITCH - engine preheater, order from authorized Deutz dealer

1шт.

27

REF

INSTRUCTION

SENDER - engine temperature warning, parts list Figure 2-8

1шт.

28

P41426

GROMMET

- rubber, wire to engine temperature sender

1шт.

29

REF

INSTRUCTION

SENDER - engine oil pressure, parts list Figure 2-8

1шт.

30

REF

INSTRUCTION

SENDER - engine oil pressure for hourmeter, parts list Figure 2-8

1шт.

31

P9547265

CABLE

WIRE - starter to smoke limiter valve

1шт.

32

P4943364

SOLENOID SWITCH

VALVE - solenoid, smoke limiter (Replaces valve P4343365)

1шт.

33

P641661

PROBE

SENDER - hydraulic oil temperature

1шт.

34

P8647253

CABLE

WIRE - oil temperature sender to oil filter restriction sender

1шт.

35

P841828

ELECTRO/HYD CONTACT

SENDER - hydraulic oil filter restriction indicator

3шт.

36

P8647252

CABLE

WIRE - connects filter restriction indicator senders

2шт.

37

P2141665

GAUGE

SENDER - low fuel level

1шт.

38

REF

INSTRUCTION

BOX - electrical, see Figures 4-44 through 4-52 for electrical box and related parts, see Figure 4-38 for engine harness connections

1шт.

39

P51921

CLAMP

- harness, 31 mm - 38 mm range

3шт.

40

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 40 mm (Replaces bolt P533837)

1шт.

41

P4328797

WASHER

SPACER - bolt, 8 mm thick

2шт.

42

825-1112

NUT,M12, Cl 8

- hex, 12 mm - 1.75 (Replaces nut P34167)

1шт.

43

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm (Replaces bolt P33873)

1шт.

44

P4328797

WASHER

SPACER - bolt, 8 mm thick

1шт.

45

P1036987

CLAMP

- harness, 90 mm - 95 mm range

1шт.

46

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

(Replaces bolt P33808) Hex, M6 x 30, 8.8, Full Thd

1шт.

47

P3528799

WASHER

SPACER - bolt, 4 mm

2шт.

48

825-1406

NUT,M6, Cl 8

1шт.
