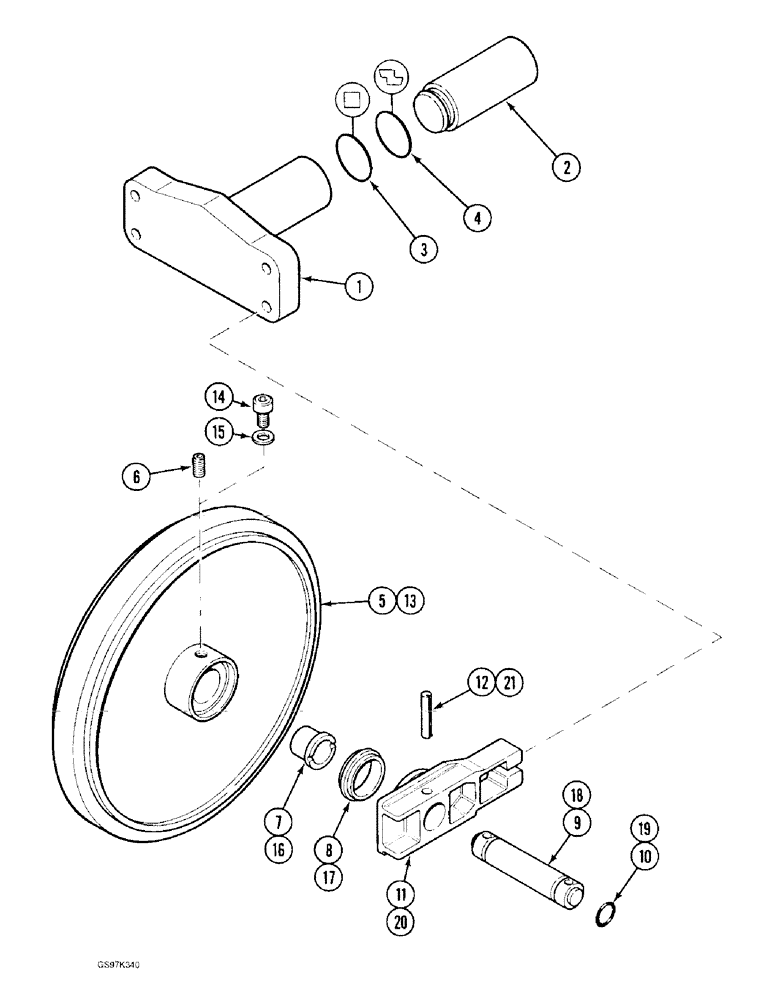

Запчасти Case 170C (5-14) - TRACK IDLER AND ADJUSTMENT CYLINDER, W/ 710 MM (27-15/16") IDLER WHL DIMENSION, P.I.N. 02371 & AFTER (11) - TRACKS/STEERING

P8346251

SHOCK ABSORBER

CYLINDER ASSEMBLY - track adjustment, Includes: Ref. 1-4

2шт.

1

NSS

NOT SOLD SEPARAT

BRACKET AND CYLINDER - track adjustment, order cylinder assembly P8346251

1шт.

2

P1827665

PISTON

- adjustment cylinder

1шт.

3

P1751285

SPECIAL MAT. SEAL

SEAL - piston, inner

1шт.

4

P2046008

WIPER SEAL

SEAL - piston, outer

1шт.

P1942385

FLEETING PULLEY

IDLER ASSEMBLY - track, Intertrac identification, Includes: Ref. 5-12

2шт.

5

NSS

NOT SOLD SEPARAT

WHEEL - idler, “A” dimension is 710 mm (27-15/16 inch), order idler assembly P1942385

1шт.

6

P2537437

PLUG

- filler, idler wheel

1шт.

7

P4746282

BEARING LINER

BUSHING - idler wheel

2шт.

8

P9346015

SET OF GASKET

SEAL - oil, idler wheel (Replaces seal P8046006)

2шт.

9

P5327878

SHAFT

- idler

1шт.

10

P6146098

SEAL

O-RING - idler shaft

2шт.

11

P5628223

SUPPORT

BRACKET - idler wheel

2шт.

12

P35710

SPLIT PIN/SAFETY PIN

PIN - roll, idler, Serial Range: shaft-bracket

2шт.

P1942385

FLEETING PULLEY

IDLER ASSEMBLY - track, ITM identification, Includes: Ref. 13-21

2шт.

13

NSS

NOT SOLD SEPARAT

WHEEL - idler, “A” dimension is 710 mm (27-15/16 inch), order idler assembly P1942385

1шт.

14

P737448

PLUG

- filler, idler wheel

1шт.

15

P2230408

O-RING

- filler plug

1шт.

16

P1128687

BEARING LINER

BUSHING - idler wheel (Replaces bushing P1528682)

2шт.

17

P7546097

SET OF GASKET

SEAL - idler wheel

2шт.

18

P5327877

SHAFT

- idler

1шт.

19

P1230438

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

- idler shaft

2шт.

20

P5628222

SUPPORT

BRACKET - idler wheel

2шт.

21

P35801

SPLIT PIN/SAFETY PIN

PIN - roll, idler, Serial Range: shaft-bracket

2шт.
