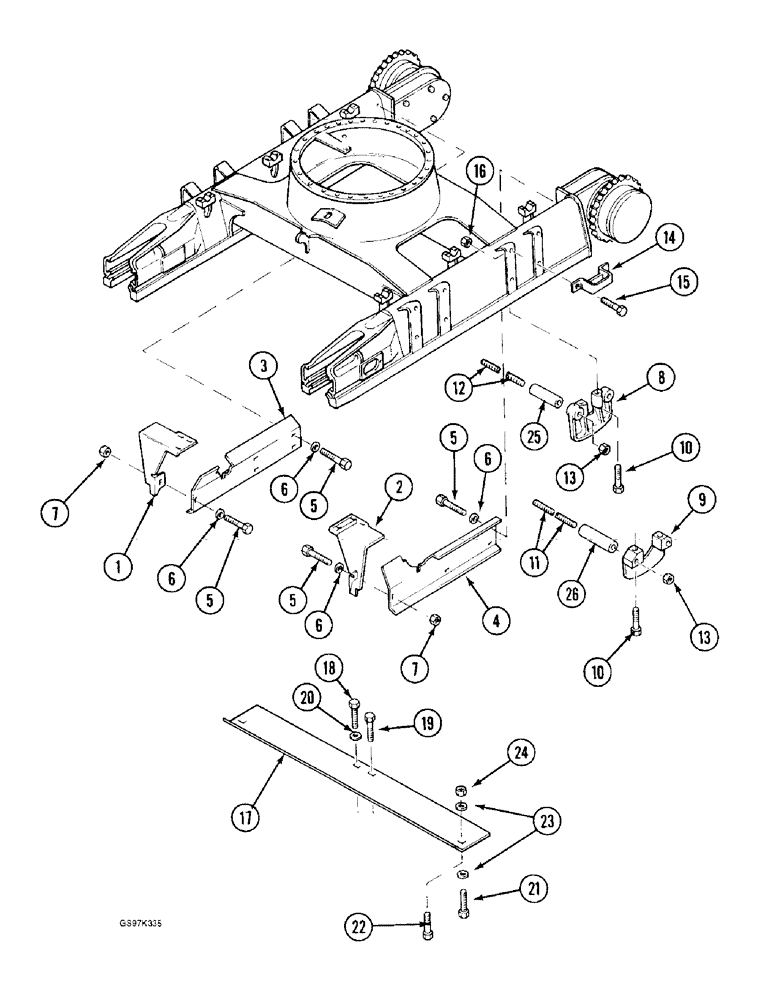

Запчасти Case 170C (5-04) - TRACK FRAME AND TUBING GUARDS (11) - TRACKS/STEERING

1

P4625681

HOUSING

GUARD - tubing, front, right-hand

1шт.

2

P4625682

HOUSING

GUARD - tubing, front, left-hand

1шт.

3

P3126393

HOUSING

GUARD - tubing, side, right-hand

1шт.

4

P3126394

HOUSING

GUARD - tubing, side, left-hand

1шт.

5

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, Tubing guard (Replaces bolt P33873)

10шт.

6

P3528793

WASHER

SPACER - tubing guard bolt, 8 mm thick

10шт.

7

P1334578

NUT

- hex, 12 mm, tubing guard bolt

2шт.

8

P1604021

GUIDE

GUARD - track, at track frame, cast type

8шт.

9

P3254839

GUIDE

GUARD - track, at track frame, fabricated type

8шт.

10

P833815

SCREW

BOLT - hex, 24 mm x 120 mm, guard to track frame

16шт.

11

P2527772

TIE-ROD

BOLT - tie, inner to outer track guard, 550 mm (21-5/8 inch) long, used with fabricated type guard

8шт.

12

P2644911

TIE-ROD

BOLT - tie, inner to outer track guard, 505 mm (19-7/8 inch) long, used with cast type guard

8шт.

13

P34125

NUT

- hex, 30 mm

16шт.

14

P1304073

STEP

- track frame, lower

4шт.

15

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

step to track frame, replaces bolt P133805 Hex, M16 x 60, 8.8

8шт.

16

832-10416

NUT,M16 x 2, Cl 8

NUT, LOCK, , Step bolt (Replaces nut P34562) M16 x 2, Cl 8

8шт.

17

P4825669

HOOD

GUARD - tubing, center

1шт.

18

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

If used Hex, M12 x 35, 8.8, Full Thd

2шт.

19

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, If used (Replaces bolt P33873)

2шт.

20

P3528793

WASHER

SPACER - bolt, 8 mm thick, used with 35 mm long bolt P1304073, item 14, if used

2шт.

21

P933819

SCREW

BOLT - hex, 12 mm x 55 mm, full threaded, if used

2шт.

22

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, full threads, 12 -1.75 x 40 mm, if used (Replaces bolt P533837)

2шт.

23

P3528793

WASHER

SPACER - bolt, 8 mm thick, used with 55 mm long bolt P4825669, item 17, if used

4шт.

24

P834549

SAFETY NUT

NUT - hex, self-locking, 12 mm

2шт.

25

P2229394

SPACER

- cast type guard

8шт.

26

P2229393

SPACER

- fabricated type guard

8шт.
