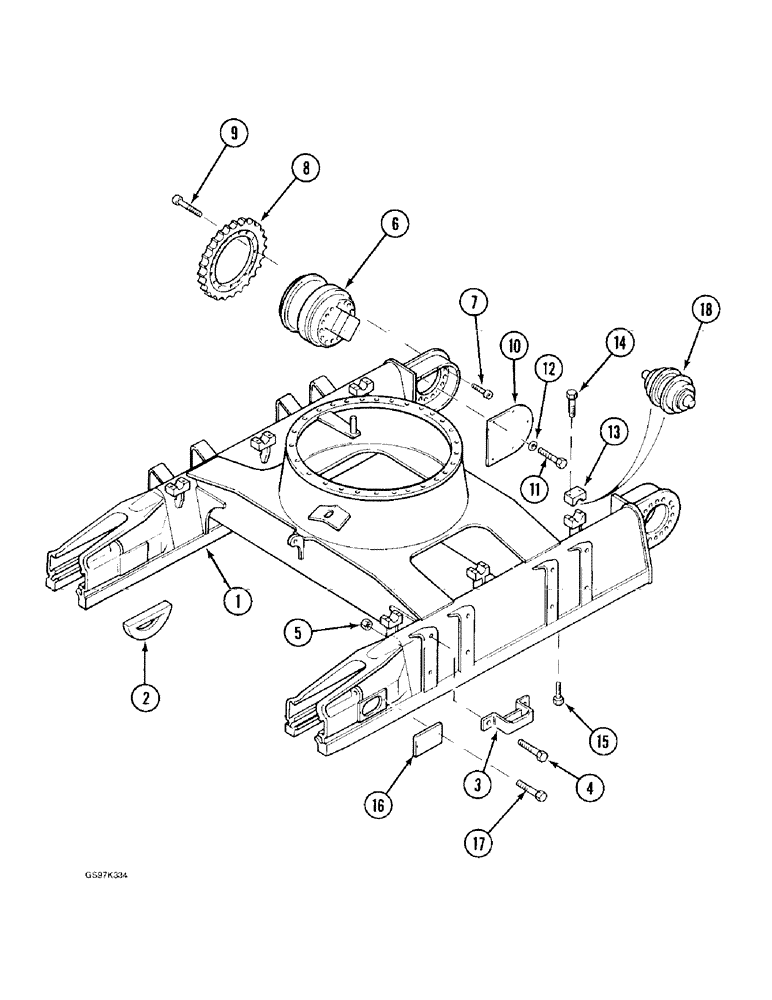

Запчасти Case 170C (5-02) - TRACK FRAME AND UNDERCARRIAGE (11) - TRACKS/STEERING

1

P3254801

FRAME

ASSEMBLY - track, excavator, Includes: Ref. 2

1шт.

2

P1304050

WEB

GUIDE - track chain, welded to track frame, if used

4шт.

2

REF

INSTRUCTION

GUIDE - track chain, see page 5-5

4шт.

3

P1304073

STEP

- track frame, lower

4шт.

4

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

step to track frame, replaces bolt P133805 Hex, M16 x 60, 8.8

8шт.

5

832-10416

NUT,M16 x 2, Cl 8

NUT, LOCK, , Step bolt (Replaces nut P34562) M16 x 2, Cl 8

8шт.

6

REF

INSTRUCTION

TRANSMISSION AND MOTOR ASSEMBLY - final drive, excavator, parts list Figures 6-2 through 6-8

2шт.

7

P632965

SCREW

BOLT - hex socket, 10 mm x 85 mm, class 10.9, final drive transmission to track frame

36шт.

8

P1842307

WHEEL GEAR

SPROCKET - drive

2шт.

9

P632965

SCREW

BOLT - hex socket, 20 mm x 85 mm, class 10.9, drive, Serial Range: sprocket-transmission

32шт.

10

P4524101

HOOD

GUARD - drive motor

2шт.

11

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 40 mm, guard to track frame (Replaces bolt P533837)

10шт.

12

P3528793

WASHER

SPACER - motor guard bolt, 8 mm

10шт.

13

P5120386

CAP

BRACKET - mounting, track carrier roller (Replaces bracket P4620371)

6шт.

14

P732946

SCREW

BOLT - hex socket, 16 mm x 70 mm, class 12.9, roller bracket to track frame, used with bracket P4620371

12шт.

14

P233812

SCREW

BOLT - hex socket, 16 mm x 90 mm, class 10.9, used with bracket P5120386

12шт.

15

P32725

SCREW

BOLT - hex, 24 mm x 40 mm, track frame, used when trackguards are not installed

16шт.

16

P2322937

PLATE

- cover

2шт.

17

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, Cover plate (Replaces bolt P33873)

4шт.

18

P1842311

ROLLER, TRACK

ROLLER - carrier, track, complete

6шт.
