Запчасти Case 170C (9-114) - DECALS AND MANUAL BOX, P.I.N. 74501 THROUGH 74662, P.I.N. 02301 THROUGH 02304 (09) - CHASSIS

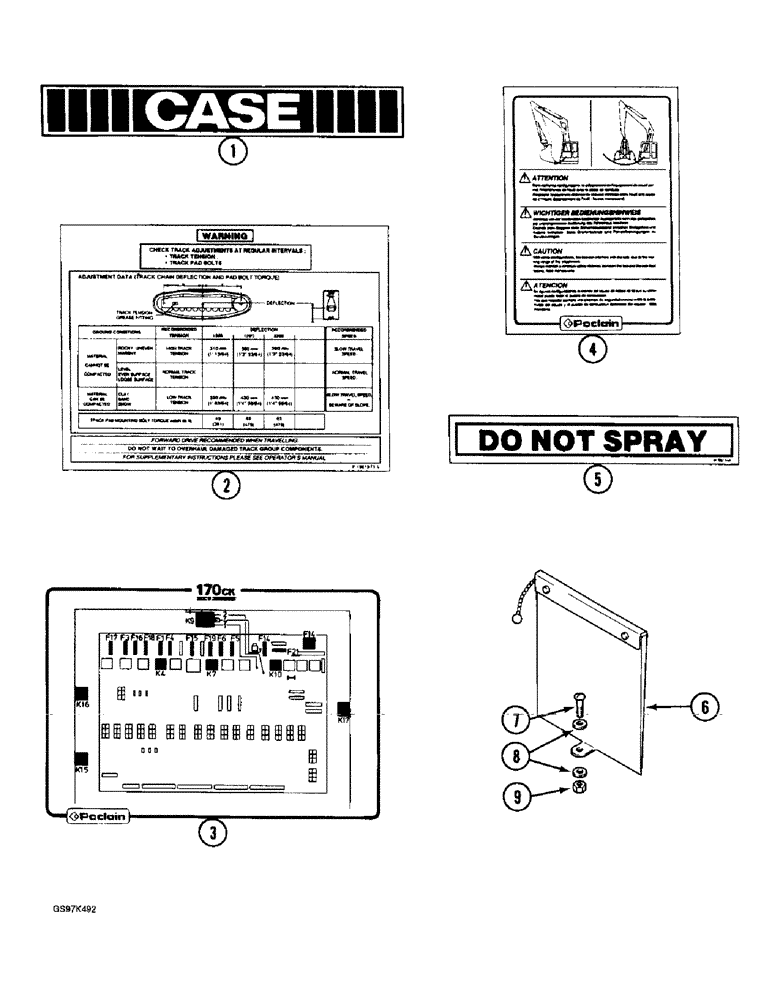

Схема запчастей Case 170C - (9-114) - DECALS AND MANUAL BOX, P.I.N. 74501 THROUGH 74662, P.I.N. 02301 THROUGH 02304 (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

P351577

DECAL

- Case, with treads, rear access shroud

1шт.

2

P351544

DECAL

- Warning, check track adjustments

1шт.

3

P1251525

DECAL

- fuse and magnetic switch location, in electrical box

1шт.

4

P351557

DECAL

- Caution, tool interference with cab

1шт.

5

P351543

DECAL

- do not spray

1шт.

6

P1244243

KIT

BOX - unit manuals

1шт.

7

P32532

SCREW

- slotted head, 4 mm x 30 mm

1шт.

8

P34603

WASHER

- flat, 4 mm

2шт.

9

P34107

NUT - hex, 4 mm, order from Deutz

1шт.

Выбрано товаров: 9
