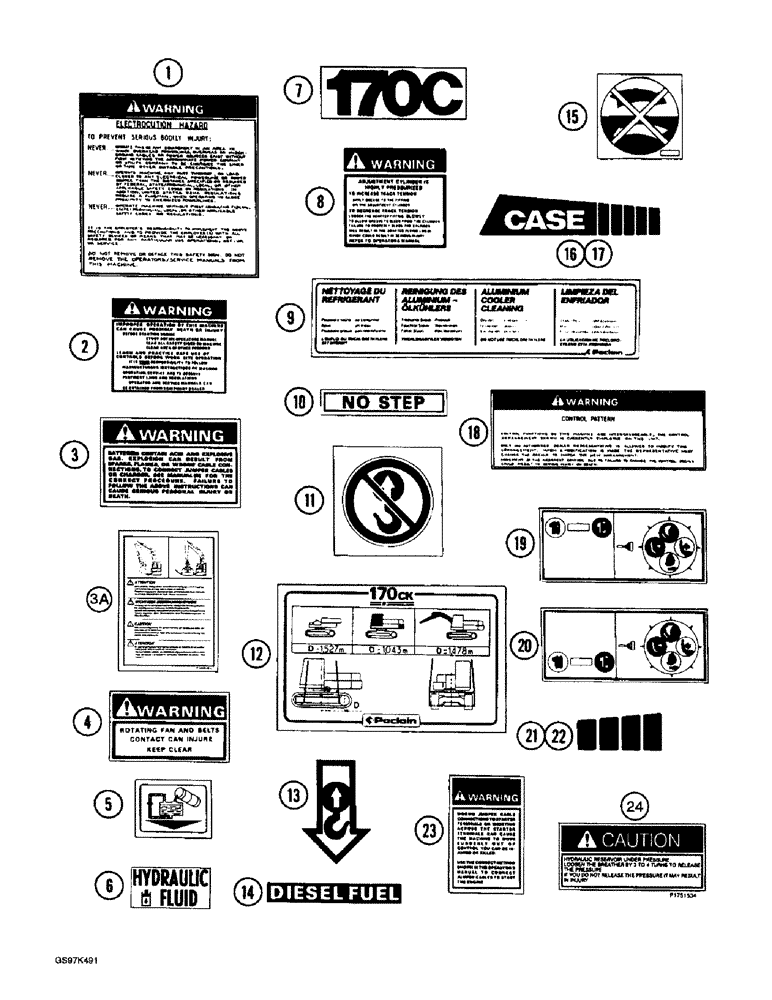

Запчасти Case 170C (9-112) - DECALS, P.I.N. 74501 THROUGH 74662, P.I.N. 02301 THROUGH 02304 (09) - CHASSIS

1

P6147566

DECAL

- Warning, electrocution hazard

1шт.

2

P6147565

DECAL

- Warning, improper operation

1шт.

3

321-6714

DECAL

- Warning, batteries contain acid (Replaces decal P251593)

1шт.

3a

P1751533

DECAL

- cold starting

1шт.

4

P251594

DECAL

- Warning, rotating fan and belts

2шт.

5

P7947530

DECAL

- hydraulic system

1шт.

6

P251591

DECAL

- hydraulic fluid

1шт.

7

P1251597

DECAL

- 170C

2шт.

8

P251597

DECAL

- Warning, adjustment cylinder is highly pressurized

2шт.

9

P7947533

DECAL

- aluminum cooler cleaning

1шт.

10

P251596

DECAL

- no step

2шт.

11

P351599

DECAL

- improper lift location

6шт.

12

P1251546

DECAL

- proper slinging procedure

1шт.

13

P7947565

DECAL

- proper lift location

4шт.

14

P251595

DECAL

- diesel fuel

1шт.

15

P2247581

DECAL

- house lock location

1шт.

16

P251580

DECAL

- Case, with treads, right-hand side of boom

1шт.

17

P251581

DECAL

- Case, with treads, left-hand side of boom

1шт.

18

P6147567

DECAL

- Warning, control pattern, no longer available

1шт.

19

S242817

DECAL

- control pattern A, right-hand side, optional

1шт.

19

S242830

DECAL

- control pattern C, right-hand side, optional

1шт.

19

P7947567

DECAL

- control pattern D, right-hand side, standard

1шт.

20

S242818

DECAL

- control pattern A, left-hand side, optional

1шт.

20

S242829

DECAL

- control pattern C, left-hand side, optional

1шт.

20

P7947568

DECAL

- control pattern D, left-hand side, standard

1шт.

21

P251585

ADHESIVE

DECAL - treads, right-hand side of boom

1шт.

22

P251586

ADHESIVE

DECAL - treads, left-hand side of boom

1шт.

23

P251592

DECAL

- Warning, wrong jumper cable connections

1шт.

24

P1751534

DECAL

- Caution, hydraulic reservoir under pressure

1шт.
